Optical splitter has played an important role in passive optical networks (like EPON, GPON, BPON, FTTX, FTTH, etc.) by allowing a single PON Interface to be shared among many subscribers.
Description

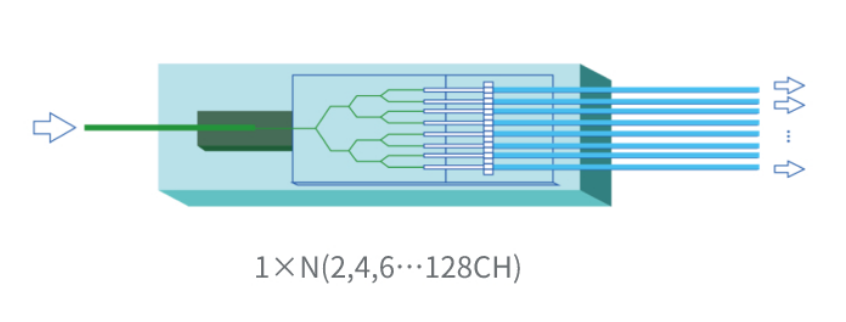

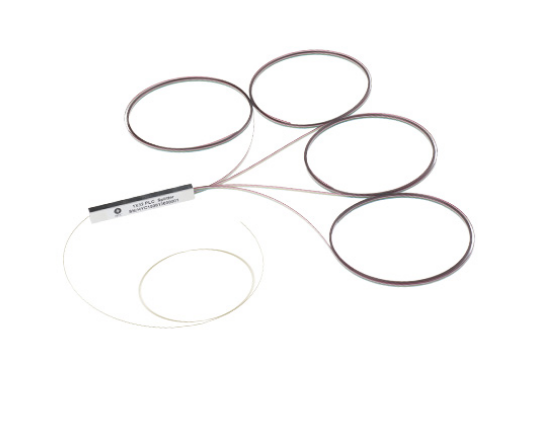

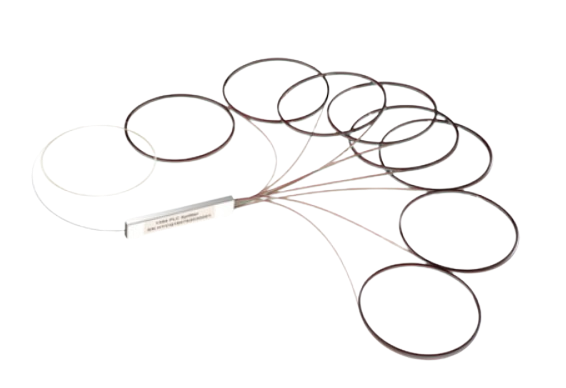

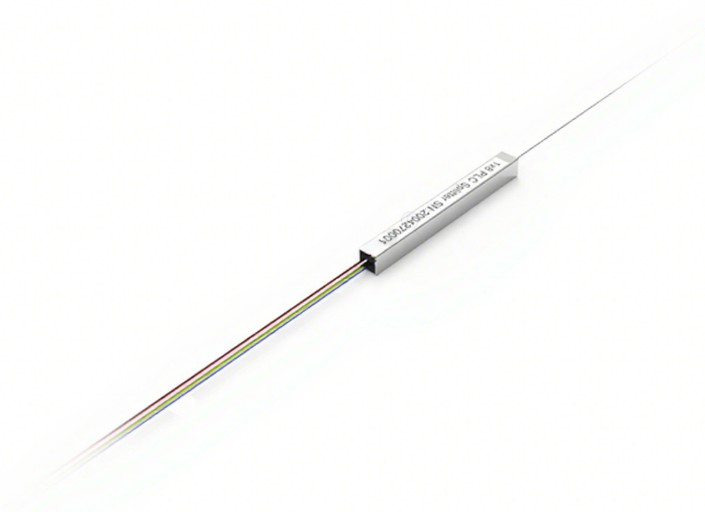

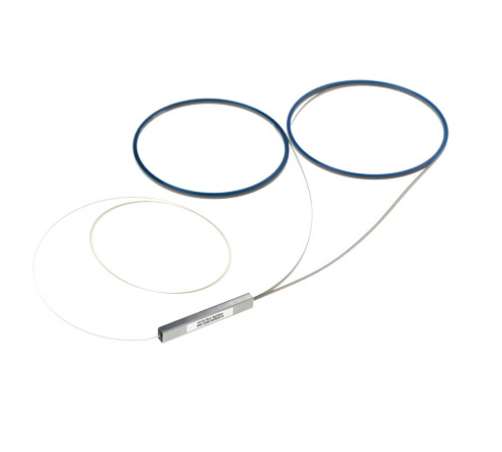

1 x N PLC Fiber Splitter, Steel Tube, Bare Fiber 250μm, No Connector
Vsunlight Bare Fiber PLC splitters is a kind of ODN product suitable for Fiber To The X (FTTX, X=Home, Office, Buliding etc...) networks, adhering to ITU.T PON standards like GPON and XGS-PON etc, which are packaged in a compact housing with options for 250 um leads and 900 um leads. These splitters offer low insertion loss and low polarization sensitivity. Available in 2, 4, 8, 16, 32 and 64-channel configurations, they have bend-insensitive cables and minimal deformation during use, ensuring optical performance specifications and high reliability. With bare fibers exposed at all ends, these PLC splitters are best suited for fixed installations, such as cable connector boxes, pigtail cassette, test instrument and WDM system, maximizing space savings.
Specifications
| Product number | PLC-102-25-15 | PLC-104-25-15 | PLC-108-25-15 | PLC-116-25-15 | PLC-132-25-15 | PLC-164-25-15 |
| Parameter | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
| Operating Wavelength | 1260-1650nm | 1260-1650nm | 1260-1650nm | 1260-1650nm | 1260-1650nm | 1260-1650nm |
| Fiber Diameter | 250nm | 250nm | 250nm | 250nm | 250nm | 250nm |
| Insertion Loss | ≤3.8 dB | ≤7.1 dB | ≤10.2 dB | ≤13.5 dB | ≤16.6 dB | ≤20.1 dB |
| Uniformity | ≤0.4 dB | ≤0.6 dB | ≤0.8 dB | ≤1.2 dB | ≤1.5 dB | ≤1.8 dB |
| Return Loss | ≥55 dB | ≥55 dB | ≥55 dB | ≥55 dB | ≥55 dB | ≥55 dB |
| PDL (Max.) | ≤0.2 dB | ≤0.2 dB | ≤0.2 dB | ≤0.3 dB | ≤0.3 dB | ≤0.35 dB |
| Directivity | ≥55 dB | ≥55 dB | ≥55 dB | ≥55 dB | ≥55 dB | ≥55 dB |
| Fibre Type | G657A1/A2 | G657A1/A2 | G657A1/A2 | G657A1/A2 | G657A1/A2 | G657A1/A2 |
| Operating Temperature | -40 to 85°C (-40 to 185°F) | -40 to 85°C (-40 to 185°F) | -40 to 85°C (-40 to 185°F) | -40 to 85°C (-40 to 185°F) | -40 to 85°C (-40 to 185°F) | -40 to 85°C (-40 to 185°F) |
| Dimensions ( (HxWxD) | 0.16'x1.57'x0.16' (4x40x4mm) | 0.16'x1.57'x0.16' (4x40x4mm) | 0.16'x1.57'x0.16' (4x40x4mm) | 0.16'x1.97'x0.28' (4x50x7mm) | 0.16'x1.97'x0.28' (4x50x7mm) | 0.16'x2.36'x0.47' (4x60x12mm) |
Uniform Distribution of Optical Signal
PLC splitters enable the transmission power at each splitter output port to be the same,
which simplifies the network design and reduces the costs.

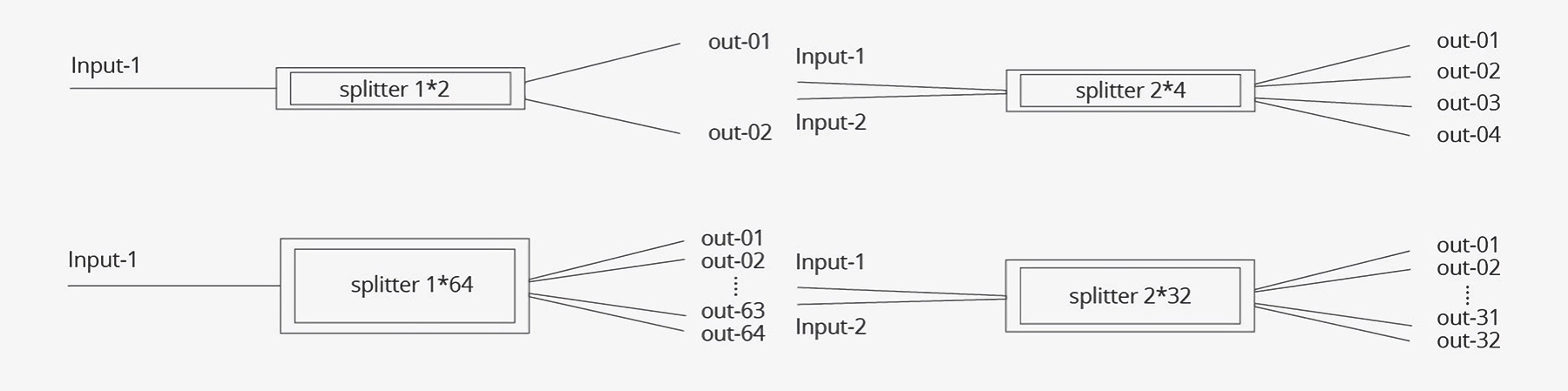

Multiple Modes can be Customized
The Bare Fiber PLC splitter not only available in a variety of split ratios and package types, and housing, split ratio,
and connector options can be customized according to customer requirement.

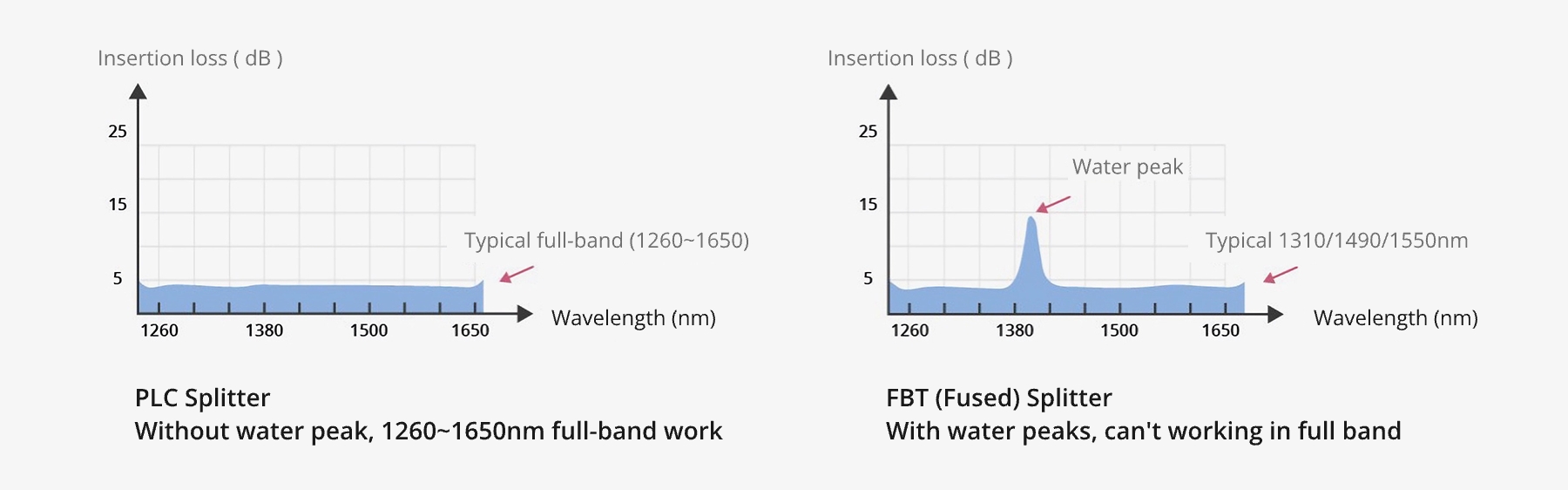

Full-band Wavelength Enhanced Compatibility and Flexibility
The PLC splitter is insensitive to wavelength and has full-band signal transmission from 1260 to 1650 nm,
ensuring superior compatibility and flexibility. It’s designed to meet current network demands and adapt easily to future upgrades,
providing reliable performance and long-term investment protection.

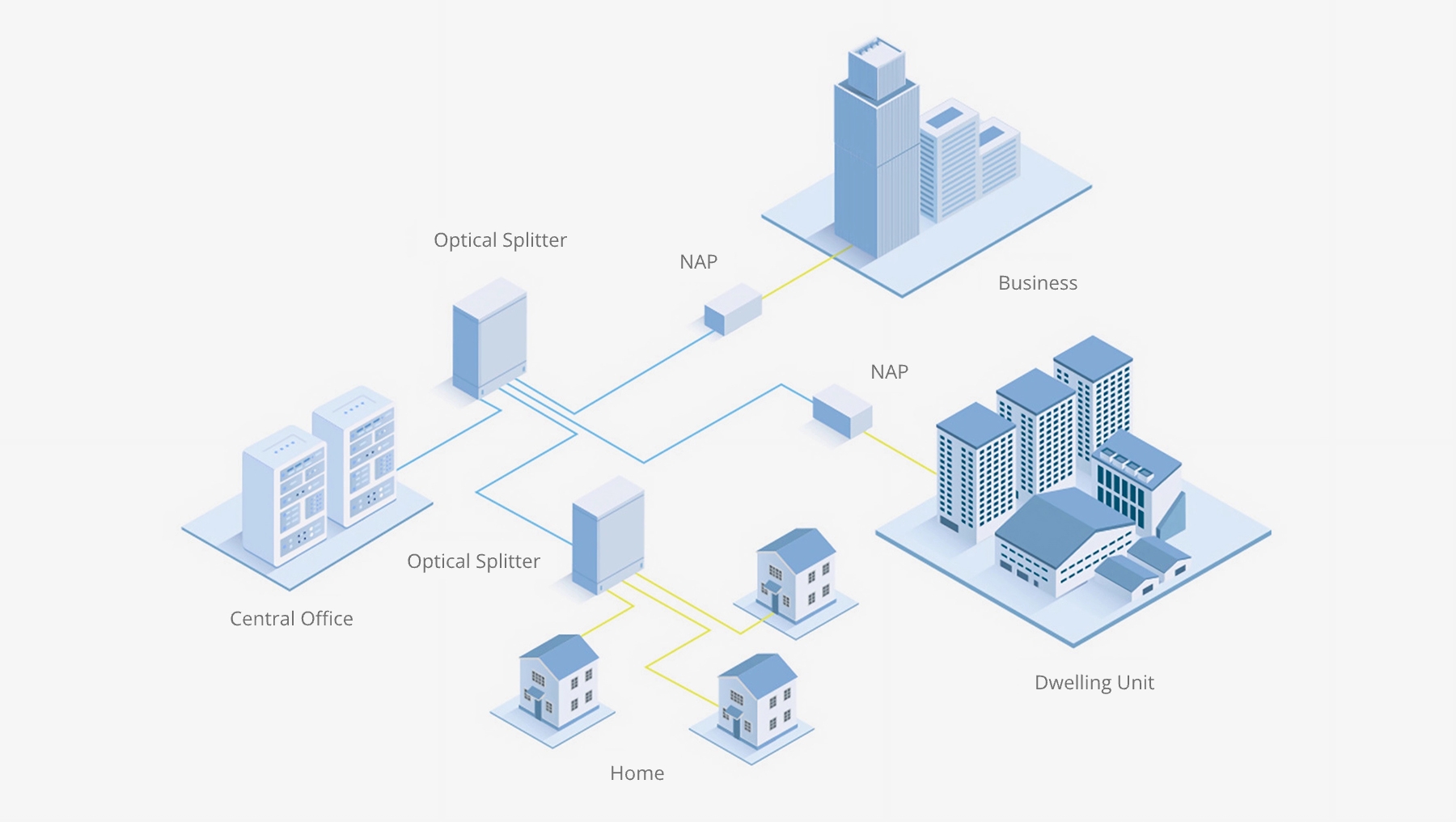

Widely Used in FTTX Projects and Data Communication Centers
