Description

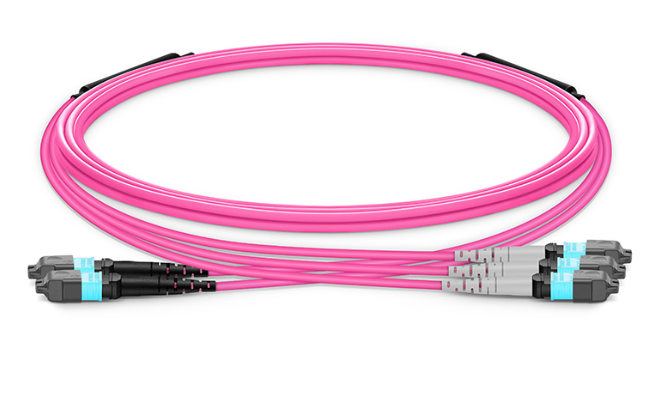

2 x MTP®/MPO-12 UPC to 3 x MTP®/MPO-8 UPC, 24 Fibers, Multimode (OM4)
MTP® /MPO Breakout cable is designed to provide a more flexible multi-fiber cabling system based on MTP® /MPO products. Unlike MTP® /MPO harness cable, MTP® /MPO Breakout cables are terminated with MTP®/MPO connectors on both ends and can provide more possibilities for the existing 12-fiber cabling system.
The 40/100G MTP®/MPO Breakout cables eliminate the wasted fibers in current 40G transmission and upcoming 100G transmission. Compared to purchase and install separate Breakout cassettes, using MTP®/MPO Breakout cables is a more cost-effective and lower-loss option.

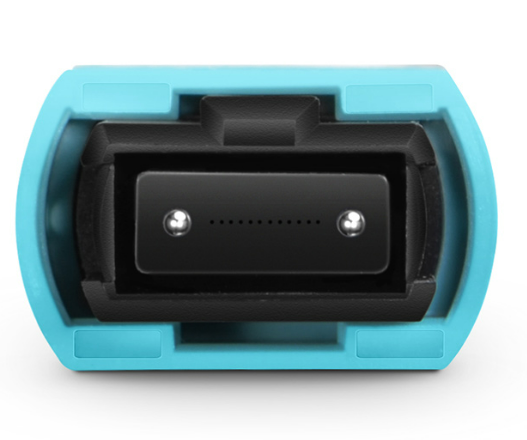

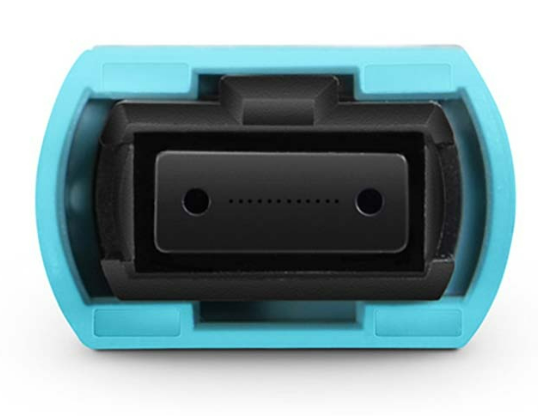

Specifications Connector A US Conec MTP® Elite Male (Pinned) Connector B US Conec MTP® Elite Female (Pinless) Polish Type UPC to UPC Glass Fiber Corning ClearCurve® Multimode Fiber Fiber Mode OM4 50/125μm Wavelength 850/1300nm Fiber Count 24 Fibers Polarity Type A Cable Outside Diameter (OD) 3.0mm Cable Jacket Plenum (OFNP) Min. Bend Radius (Optical Fiber) 7.5mm Min. Bend Radius (Fiber Cable) 20/10D (Dynamic/Static) Connector Durability 500 times Tensile Strength 90/180N (Long/Short Term) Insertion Loss 0.35dB Max Return Loss ≥20dB Attenuation at 850nm ≤3.5dB/km Attenuation at 1300nm ≤1.5dB/km Operating Temperature -10 to +60°C (14 to 140℉) Storage Temperature -10 to +70°C (14 to 158℉) |

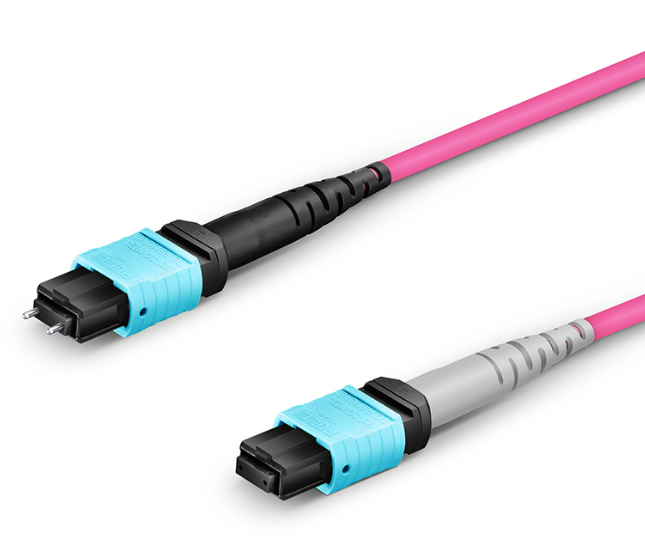

| MTP® Connector delivers stable signals and achieves flexible system design | The UPC polish provides a minimal reflection of the optical signal for optimal signal integrity. |
Comprehensive performance testing system ensures more secure operation and keeps more stable and reliable data connection. 3D interferometer provides verification of MTP®/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards. Clean optical connectors are paramount in providing a reliable, high-performance fiber optic infrastructure.
