Description

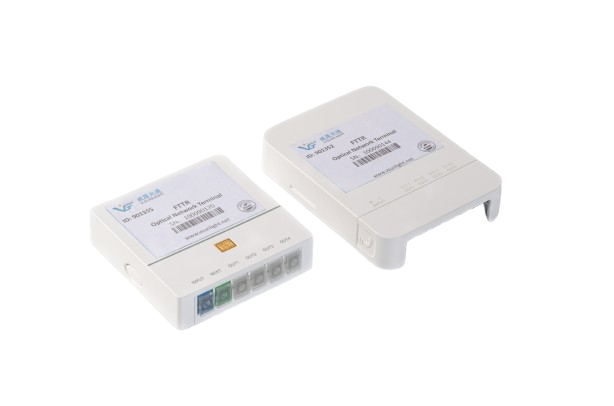

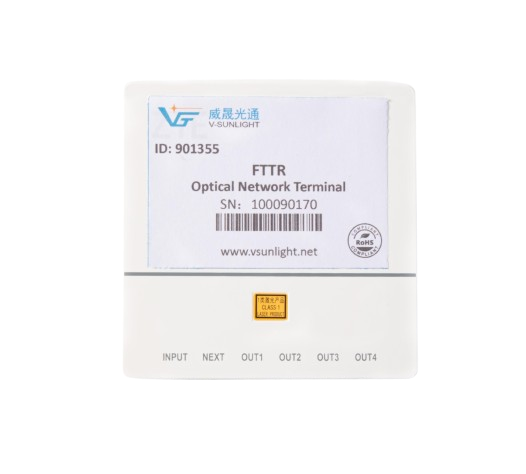

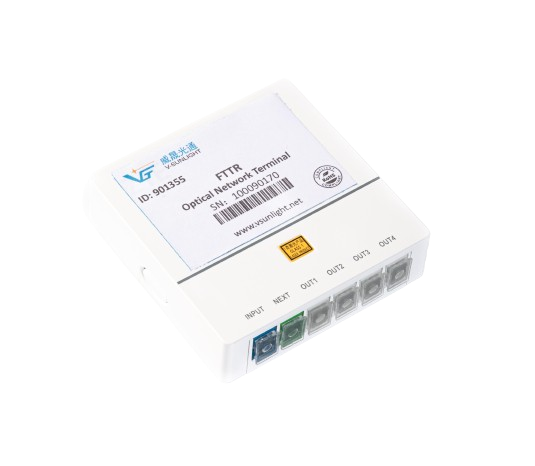

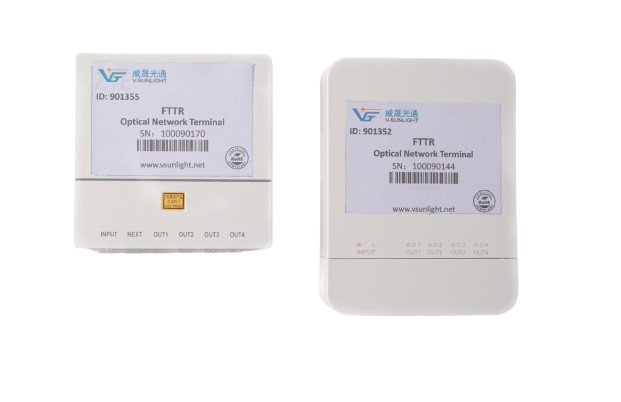

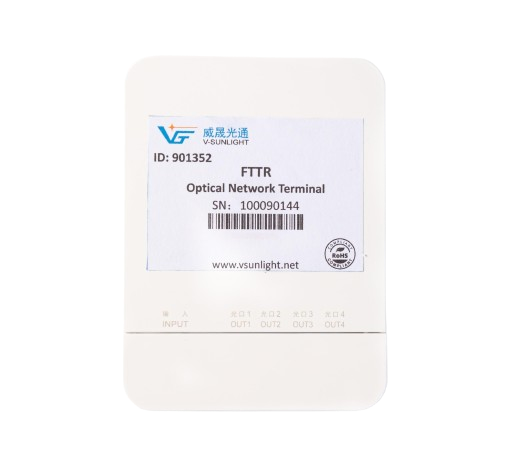

4ch FTTX Terminal Box
Fiber to the home (FTTH) infrastructures make network organizers adopt powerful management and planning systems, FTTH termination box is a small part of this system and provides a cost-effective solution for FTTH applications.
FTTH Termination Box available for the distribution and terminal connection for various kinds of optical fiber system, Some are used for indoor cabling and others are designed to install on outdoor pole or wall mount use. They are of light and compact design, Mainly used in fiber optic drop cable, pigtails or splitters cablings in residential buildings area. Most of them are applied to wall mounted type. The capacity is optional, such as small single fiber distribution box, 2 ports, 4 ports, 6 ports, 8 ports, 12 ports, 16 ports, 24 ports or even high density fiber distribution requirements.
4ch FTTX Terminal Box
 |  |  |
1. Provided by the front cover, and the optical fiber optical fiber panel drawing, fixed space and equipment, installationsite connector and provide adapter interface and optical fiber connectors protection at the bottomof the box.
2 . Optical fiber panel with the introduction of cable fixed device and optical fiber fixed, protection deviceinthefirstplace.
3. Optical fiber panel cover and bottom box is made of high quality ABS (flame retardant polycarbonate)plasticmaterial.
4. Optical fiber panel adapter socket without jumping fiber insertion should be dustproof device.
5. There is a plate and convex platform in the bottom of the box to facilitate the storage of optical cable or redundant opticalcable.The design of optical path can meet the requirements of the optical fiber bending radius and the small amountofredundant optical fiber, and provide the safety guarantee for the access to the optical fiber.
Mechanical data
Product name | Value | Quantity |
FTTX- 04- BOX | 4 ports | 1pcs |
Material | ABS | / |
Size | 100X80X23mm | / |
Insertion loss | ≤7.1dB | / |
Return loss | ≥55dB | / |
Uniformity | ≤0.6dB | / |
PDL (Max.) | ≤0.2dB | / |
Optical fiber heat shrinkable casing | Ф1.5×40mm | 4pcs |
Nylon cable tie | 3×100mm | 4pcs |
Expansion bolt | M8×40mm | 1 PCS |
LC duplex cover adapter | Green/Bule | 2pcs |
SC duplex cover adpter | Green/Bule | 2pcs |
SC/APC/PC Pigtail SX 0.9mm G657A1 PVC White | 1m | 2pcs |
LC/APC/PC Pigtail SX 0.9mm G657A1 PVC White | 1m | 2pcs |
Features & Benefits
