Description

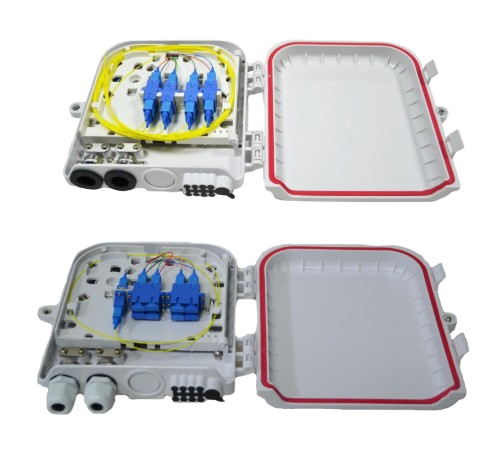

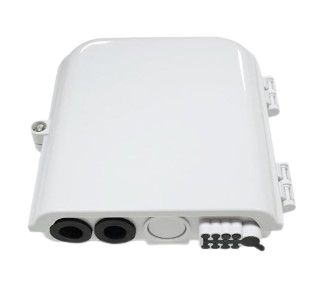

8ch FTTH Terminal Box
Fiber to the home (FTTH) infrastructures make network organizers adopt powerful management and planning systems, FTTH termination box is a small part of this system and provides a cost-effective solution for FTTH applications.FTTH Termination Box available for the distribution and terminal connection for various kinds of optical fiber system, Some are used for indoor cabling and others are designed to install on outdoor pole or wall mount use.They are of light and compact design, Mainly used in fiber optic drop cable, pigtails or splitters cablings in residential buildings area. Most of them are applied to wall mounted type. The capacity is optional, such as small single fiber distribution box, 2 ports, 4 ports, 6 ports, 8 ports, 12 ports, 16 ports, 24 ports or even high density fiber distribution requirements.
Mechanical data
| Product name | specifications | Quantity |
| FTTH- 08- BOX | 8 port | 1pcs |
| Material | PC +ABS | / |
| Size | 200mm(W)x215mm(H)x54mm(D) | / |
| Optical fiber heat shrinkable casing | Ф1.5×40mm | 8pcs |
| To protect the casing | Φ5 | 1.5 M |
| Nylon cable tie | 3×100mm | 6 PCS |
| Expansion bolt | M8×40mm | 4 EST |
Box installation
 |  |
| ①Install adaptors,Insert fiber cable into the input holes, then fix it on the box by suitable fixation clamps as picture. | ② Insert nude fiber into protective tube, then fix and trim input cable,Insert connectors of patch cords into adaptors, then lead the other end of patch cords into the back side of the tray。 |
 |  |
| ③ Connect pigtails and input cables by fusion splice in sleeves or mechanical splice, the close tray cover | ④insert outdoor fiber cable into output holes, install output connectors, then connect output connectors with adaptors, then sort out output cables and fix them。 |
 |  |
| ⑤ Cut the rubber blocks, then insert them into the rest unused output holes | ⑥ Close the cover, th einstallation is finished。 |
Features
| Application
|
