Description

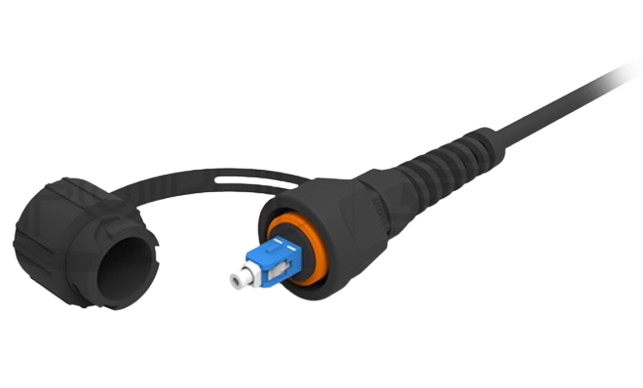

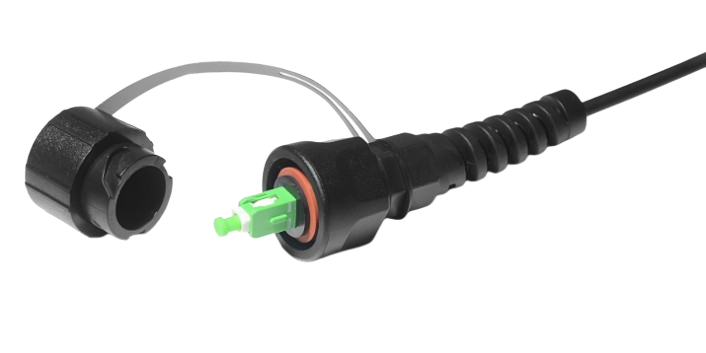

Waterproof connector
For the push-pull plug and bayonet mechanical latch structure, it is simple and easy to install or disassembly the ODVA connector. The ODVA components provided by vsunlight are up to protection IP67, which make it water-proof, dust-proof and UV protection, and suitable for the application in harsh industrial environment or outdoor environment.
Product Parameters
Type | Single mode duplex | Single mode duplex | Multimode duplex |
SC Outdoor Cable | APC | UPC | UPC |
Insertion loss | Typical value≤0.15dB;Maximum≤0.30 | Typical value≤0.15dB;Maximum≤0.30 | Typical value≤0.15dB;Maximum≤0.30 |
Return loss | ≥ 60dB | ≥50dB | ≥ 30dB |
outer diameter | 2mm-7mm | 2mm-7mm | 2mm-7mm |
Ingress protection | IP67 | IP67 | IP67 |
| Operation temperture | -20~70 ℃ | -20~70 ℃ | -20~70 ℃ |
Storage temperature | -20~70 ℃ | -20~70 ℃ | -20~70 ℃ |

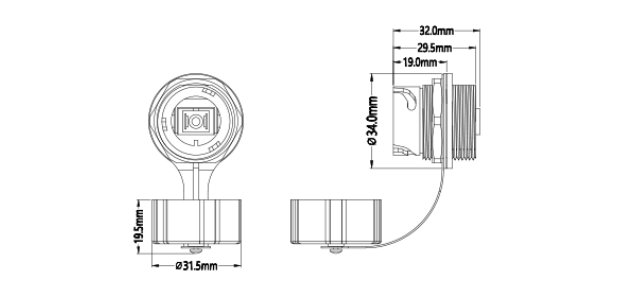

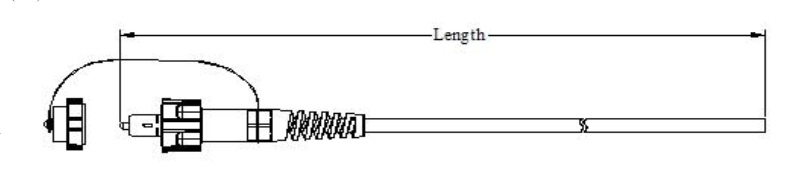

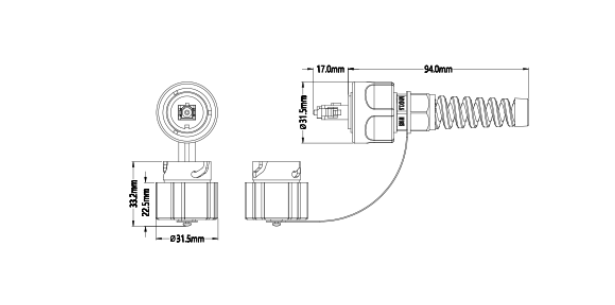

| ODVA SC Outdoor Cable Drawing | |
 |  |
 | |
Application
- Multi-purpose Outdoor

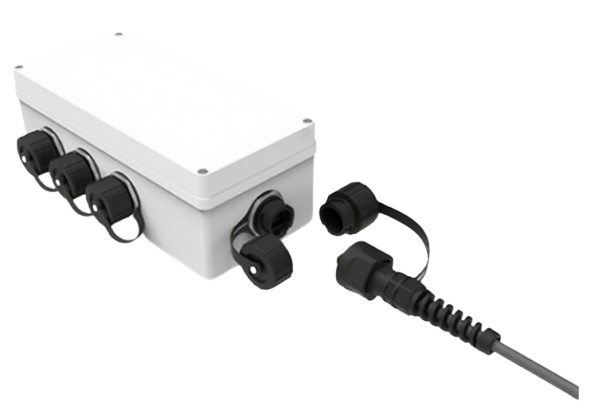

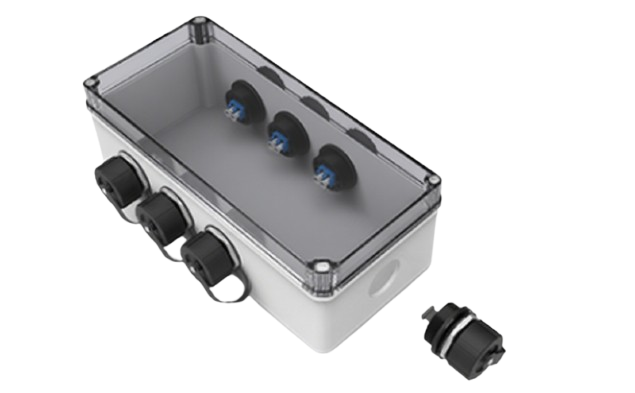

- For connection between distribution box and RRH
- Deployment in Remote Radio Head cell tower applications
Features
- Cost effective solution for in house termination
- IP67 water and dust protection
- Wide range of operational temperature for outside plant -40 to +85°C
- Different cable diameter can be available
- Intermatable to other Industrial LC adaptor per IEC 61076-3-106
- No need special tools for assembly
Performance Guarantee
