C-AD1-Cxx; 1ch CWDM AD-filters

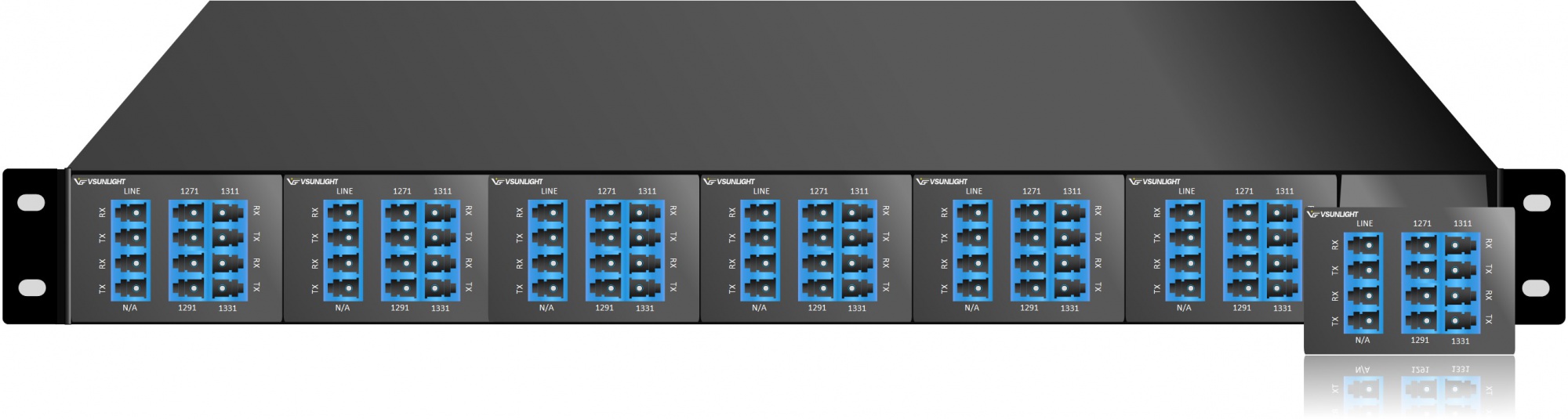

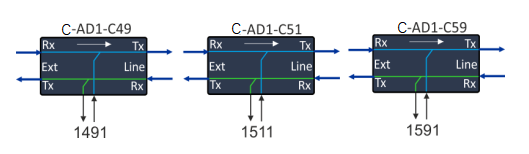

The C-AD1-Cxx are CWDM Add-drop filter modules covering the CWDM channels from 1471nm to 1611nm. The typical application is for OSC and/or OTDR configurations in DWDM line systems. Below are fronts and icons of C-AD1-C49, H-AD1-C51 and C-AD1-C59.

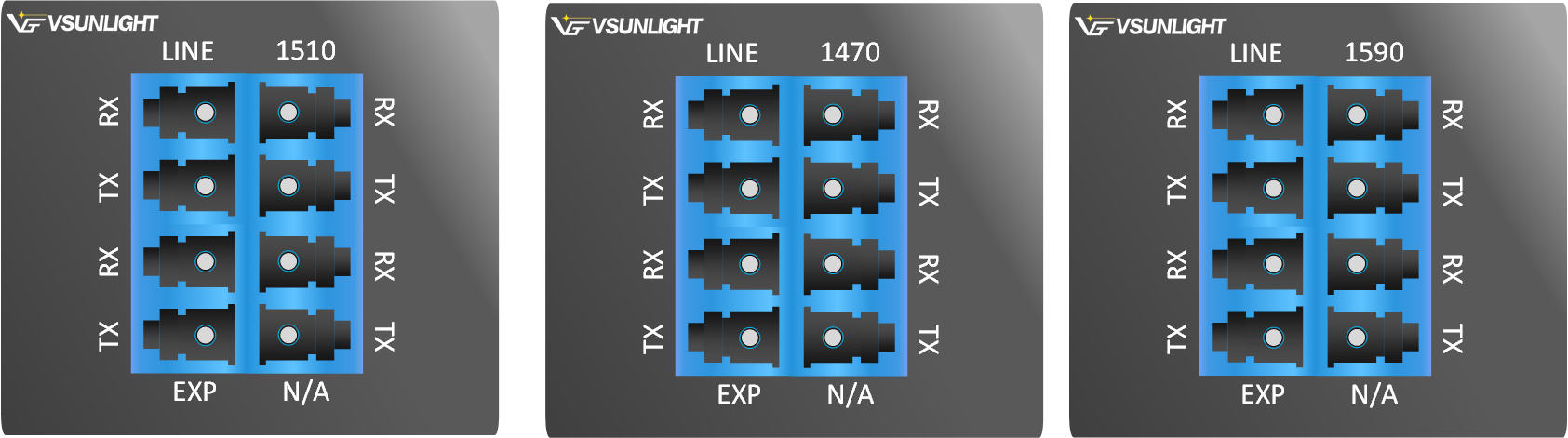

The Line-ports shall always face inwards a connection as shown in the figure below.

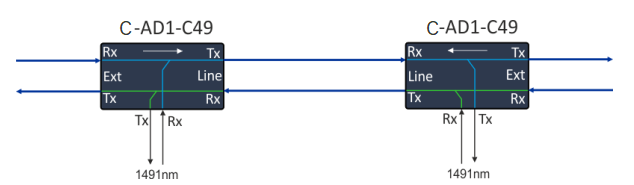

C-AD1-C49 connection example
Specifications
The table lists selected (worst case) parameters at I-temp conditions.
| PARAMETER | C-AD1-CXX | NOTE |
Link loss, channel Ch Rx Þ Line Tx Þ Line Rx Þ Ch Tx | £ 1.7 dB | at I-temp conditions(-10~70℃) |
| Pass-through loss Ext Rx Þ Line Tx | £ 0.8 dB | |
Pass-through channel band (excl a/d channel) | 1260~1620nm |
Attached file ：C-AD1-CXX For more technical data。
