Description

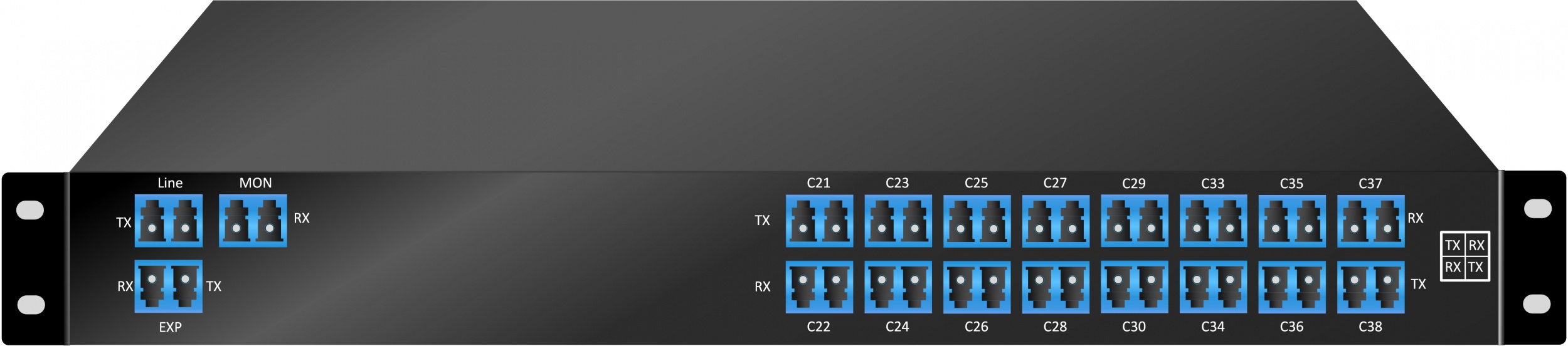

D-MD-16EM-Cxx-Cyy; 16ch DWDM filter

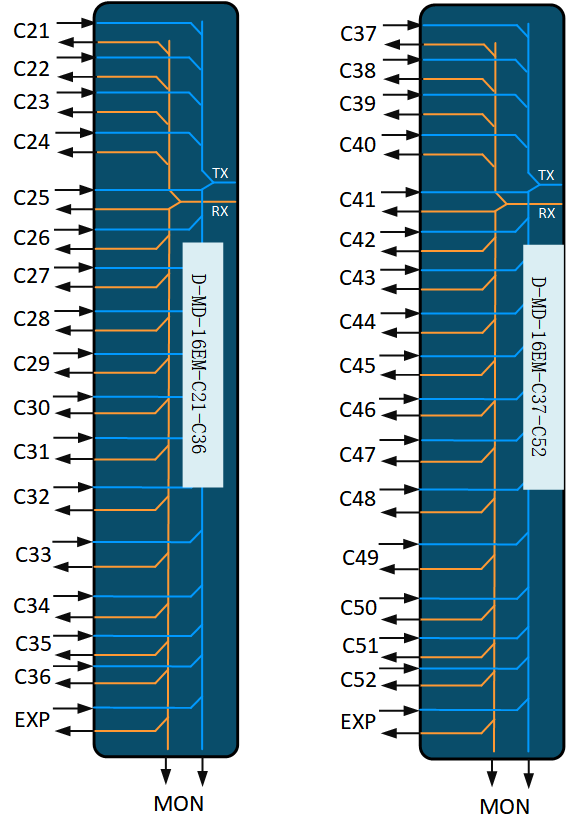

The D-MD-16EM-Cxx-Cyy filters are two DWDM Mux/DeMux'es having 16 wavelength ports, one extension port and monitor ports for Tx and Rx line interfaces.
The monitor ports tap off about 1% of the transmitted and received line signal. This provides the ability to monitor the channel power levels via a connected Optical Channel Monitoring (OCM) device or an optical spectrum Analyzer.
The table below lists the provided variants:
Product number | DWDM CHANNELS |
D-MD-16EM-C21-C36 | 192.1 to 193.6 THz |
D-MD-16EM-C37-C52 | 193.7 to 195.2 THz |
The two filters can be connected via the extension port to provide a 32ch configuration.
PARAMETER | D-MD-16EM-C21-C36 | D-MD-16EM-C37-C52 |
Link loss, Ch Rx Þ Line Tx Þ Line Rx Þ Ch Tx | £ 5.0 dB | £ 5.0 dB |
Link loss Ext Rx Þ Line TxÞLine RxÞExt Tx | £ 9.6 dB | £ 9.6 dB |
Link loss, channel D-MD-16EM-C37-C52 via Ext ports | £ 16.1dB | / |
Link loss, channel D-MD-16EM-C21-C36 via Ext ports | / | £ 16.1 dB |
Ext port bandwidth, excl channel passband | 1525-1565nm | 1525-1565nm |
Attached file ：D-MD-16EM-Cxx-Cyy For more technical data
→
