Description
D-MD-4S0-1x10; DWDM Band split/combine filter
The D-MD-4S0-1x10 is a band split/combine filter with a line port and 10 channel band ports

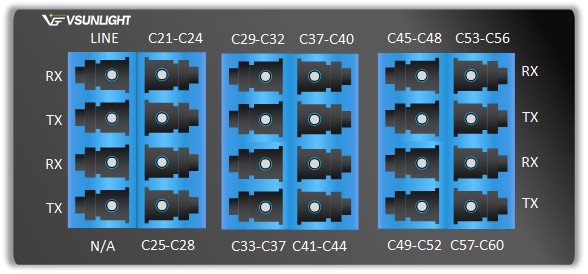

D-MD-4S0-1x10 icon and front plate
PARAMETER | D-MD-4S0-1X10 | Loss values at I-temp conditions. |
| Insertion loss, Line Ch band Tx | ≤3.2dB |
The 40 DWDM channels are split into ten groups of 4 channels enabling fan-out configurations as shown in thefigure. The channels can be added/dropped via the 8ch D-MD-09-Cxx-Cyy DWDM Mux/Demux filters or via the 4ch D-OADM1x4-Cxx-Cyy OADM filters as shown in the figure below.
