D-OADM2x4-Cxx-Cyy/D-OADM2x4-Cxx-Cyy-4C
The D-OADM2x4-Cxx-Cyy is a two-sided 4ch DWDM add/drop filter. The filter has four add/drop ports, one group for east and one for west direction.
The D-OADM2x4-Cxx-Cyy-4C filters are part of a series of filters where the channel passband is wide enough to allow 400G 16QAM signals to be add/dropped by the filter.Channels outside the add/drop channel bands of the H-OADM2x4-Cxx-Cyy-4C filters are glassed through the filter.This intrinsic pass-through bandwidth is from 1264 -1630nm which opens for a wide variety of combinations of LANWDM, CWDM, DWDM and OTDR solutions over the same infrastructure.

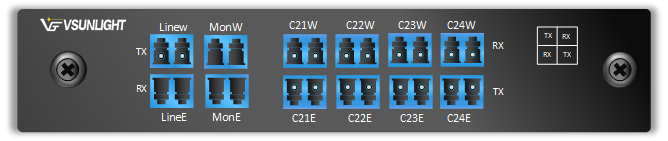

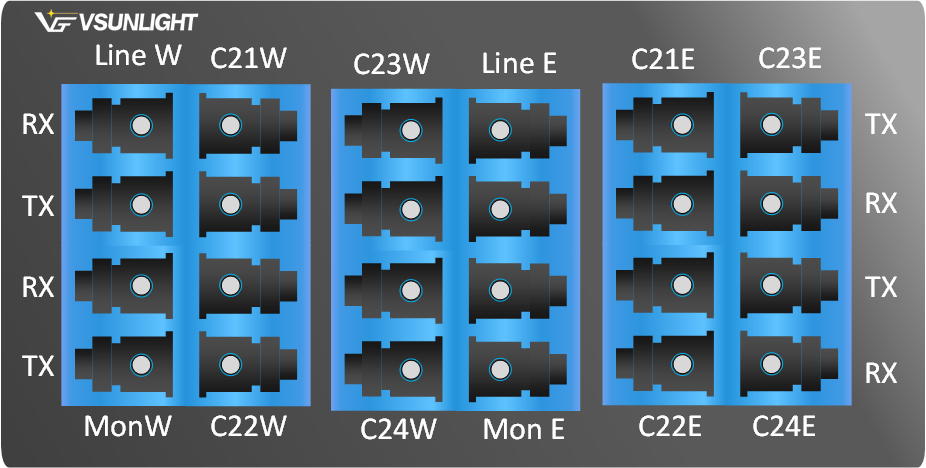

D-OADM2x4-C21-C24 icon and front plate
Channels outside the add/drop channel bands are glassed through the filter. There are two monitor ports (Mon) that drop about 1% of the transmitted and received signal from the Line ports.
The table below lists the provided variants:
ORDERING CODE | DWDM CHANNELS |
D-OADM2x4-C21-C24 | 192.1 to 192.4 THz |
D-OADM2x4-C25-C28 | 192.5 to 192.8 THz |
D-OADM2x4-C29-C32 | 192.9 to 193.2 THz |
D-OADM2x4-C33-C36 | 193.3 to 193.6 THz |
D-OADM2x4-C37-C40 | 193.7 to 194.0 THz |
D-OADM2x4-C41-C44 | 194.1 to 194.4 THz |
D-OADM2x4-C45-C48 | 194.5 to 194.8 THz |
D-OADM2x4-C49-C52 | 194.9 to 195.2 THz |
D-OADM2x4-C53-C56 | 195.3 to 195.6 THz |
D-OADM2x4-C57-C60 | 195.7 to 196.0 THz |
Ten different versions of the filter are provided. They can be connected in pairs as shown in the figure below ortowards a DWDM Mux/DeMux unit. Note that the Line port shall always face inwards a connection.

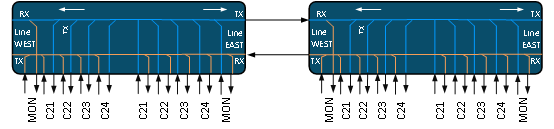

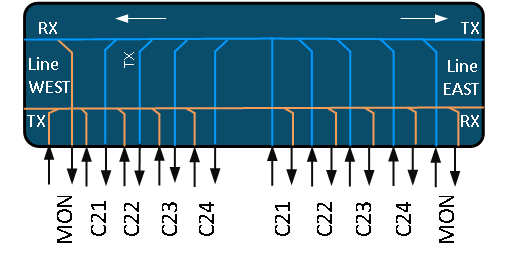

Two D-OADM2x4-C21-C24 filters connected in a bus configuration
PARAMETER | D-OADM2X4-Cxx-Cyy | D-OADM2X4-Cxx-Cyy-4c |
Link loss, Ch Rx Þ Line Tx Þ Line Rx Þ Ch Tx | £ 3.5dB | £ 4.5dB |
Insertion loss, Ch Rx Þ Line Tx | £ 2.5dB | £ 2.8dB |
Pass-through loss, Ext Rx Þ Line Tx | £ 2.2dB | £ 2.0dB £ 2.6dB between 1375-1405nm |
Passband Ext Û Line | 1500nm to 1600nm | 1500nm to 1600nm |
Attached file ：D-OADM2X4-Cxx-Cyy//D-OADM2X4-Cxx-Cyy-4C For more technical data。
