Description

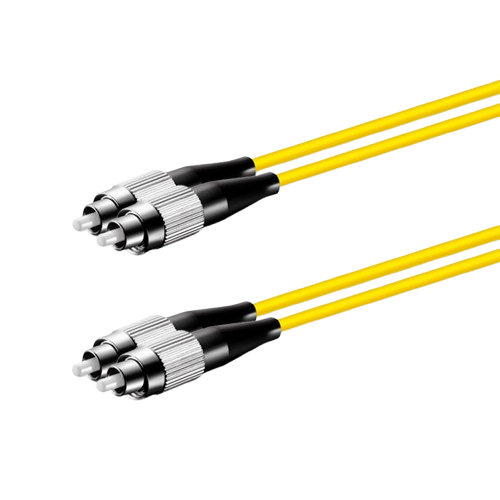

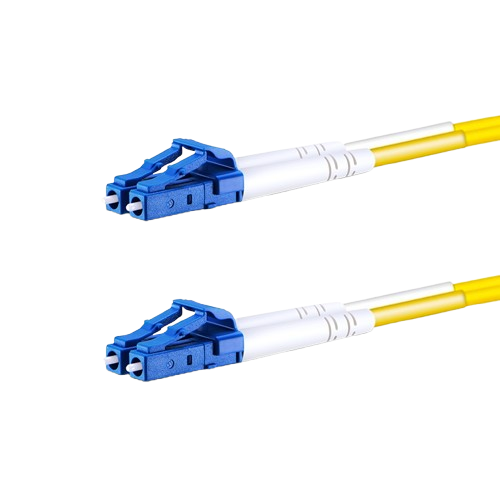

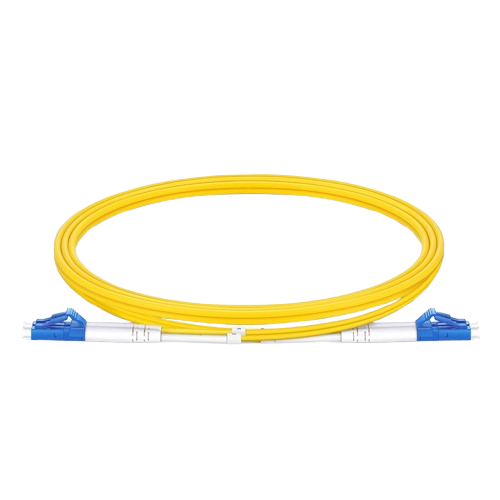

Duplex OS2 Single Mode Fiber Optic Patch Cable
Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It is best suited for long distance application and can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
Specifications
Connector Type LC/SC/ST/FC/E2000 Polish Type UPC/APC Fiber Mode OS2 9/125μm Wavelength 1310/1550nm Fiber Grade G.657.A1/G.657.A2 Minimum Bend Radius 10/7.5mm (G.657.A1/G.657.A2) Flame Rating Riser (OFNR)/LSZH/Plenum (OFNP) Cable Outside Diameter (OD) 1.2/1.6/1.8/2.0/3.0mm Fiber Count 2 Fibers Polarity A (Tx) to B (Rx)/A (Tx) to A (Rx) Insertion Loss (dB) ≤0.3dB Return Loss (dB) UPC≥50dB, APC≥60dB (LC/SC/ST/FC/MU/MTRJ) UPC≥55dB, APC≥75dB (LSH) Attenuation at 1310nm 0.4 dB/km Attenuation at 1550nm 0.3dB/km |

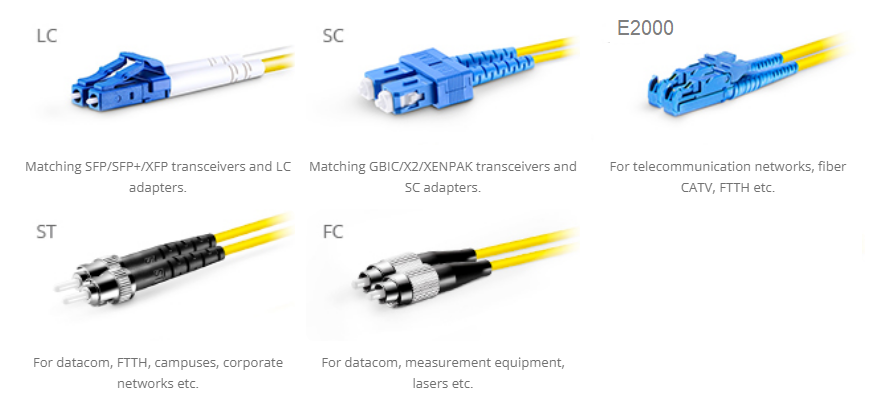

Five Connectors Support Custom-tailored Installations
