Description
LC Uniboot Connector
The LC UNIBOOT connector can be used in a high-density assembly environment. Compared with the traditional duplex connector, this product uses a dual cores cable in one tube, which greatly reduces the wiring size, effectively improving ventilation in a high-density crowded environment.
PERFORMANCE
| Connector Type | LC Uniboot |
| Polishing | SM：UPC/APC；MM：UPC |
| Ferrule Type | Grade A zirconia ceramic ferrule |
| Matching Cable Outer Diameter | Single tube dual fiber 2.0mm/3.0mm |
| Fiber Type | OS2/OM1/OM2/OM3/OM4/OM5 |
| Insertion Loss | UPC≤0.3/0.2/0.15dB；APC≤.3/0.2dB |
| Return Loss | SM/APC≥60/65dB；SM/UPC≥50/55dB；MM/UPC≥25dB/45dB |
Operating Temperature Range | -20~+70℃ |
| Storage Temperature Range | -40~+80℃ |
LC Uniboot Conector informance
| Matching cable outer diameter | pull-tab | Image | Drawing |

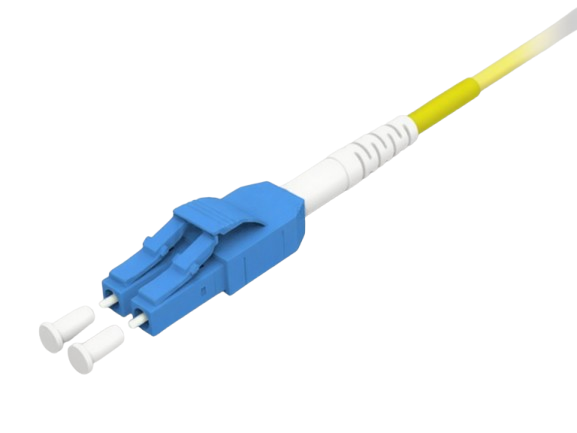

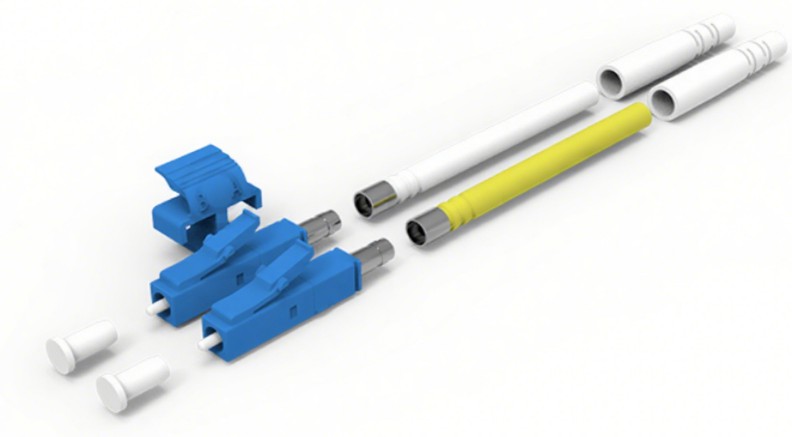

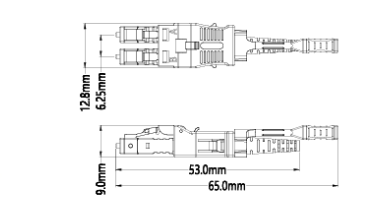

2.0/3.0mm Switchable polarity | without pull rod |  |  |

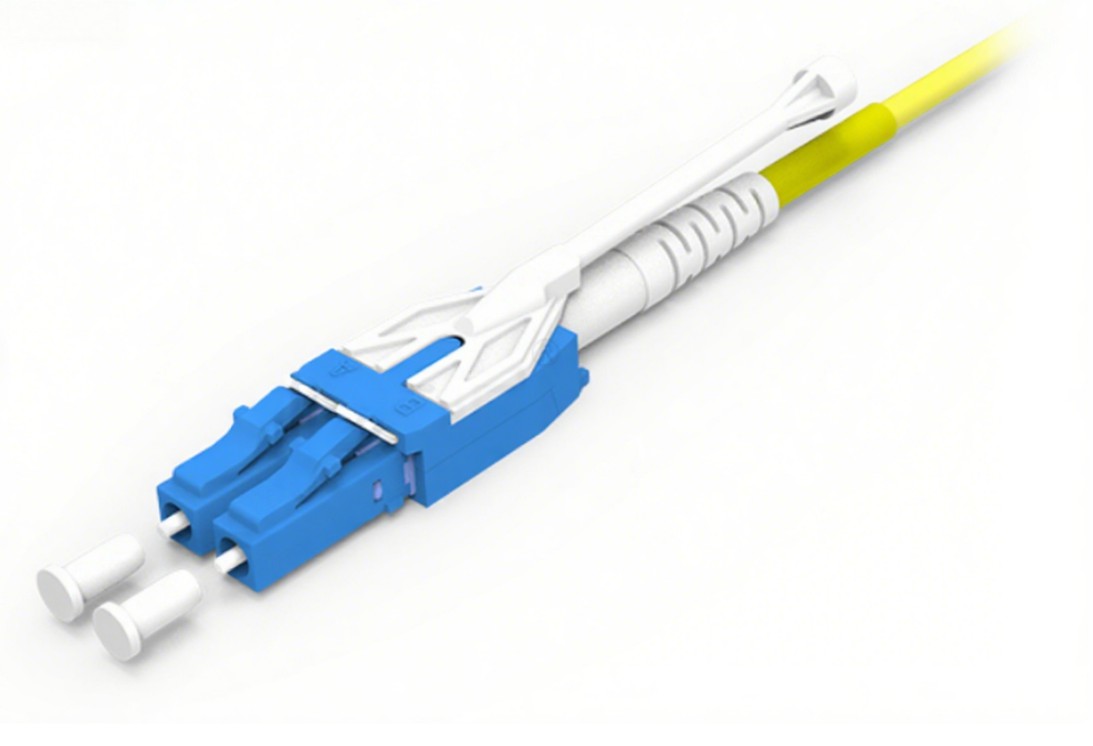

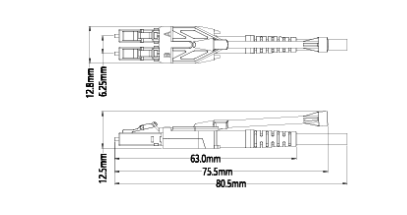

2.0/3.0mm Switchable polarity | with pull rod |  |  |

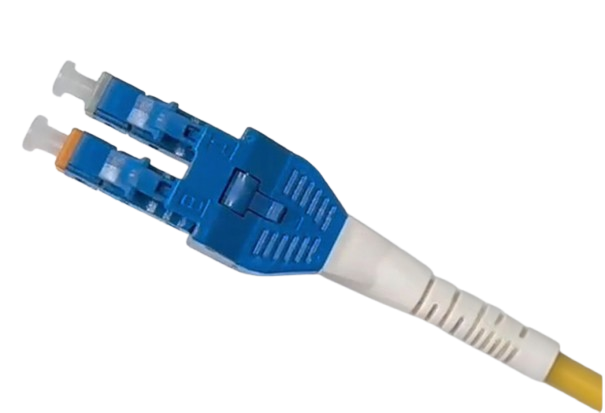

2.0mm Switchable polarity | without pull rod |  |  |
LC Connector House
LC/UPC(SM) LC/APC(SM) OM1/2/3/4/5 OM3 OM4
FIBER TYPE
 |  |  |  |
| OS2 LC Patch Cord (SM) | OM1/OM2 Patch Cord(MM) | OM3/OM4 Patch Cord(MM) | OM5 Patch cord(MM) |
Application scenarios
Application field
1.Optical fiber communication systems engineering
2.Fiber optic data communication network
3.Fiber CATV engineering
4.Other optical technology tests
