Description

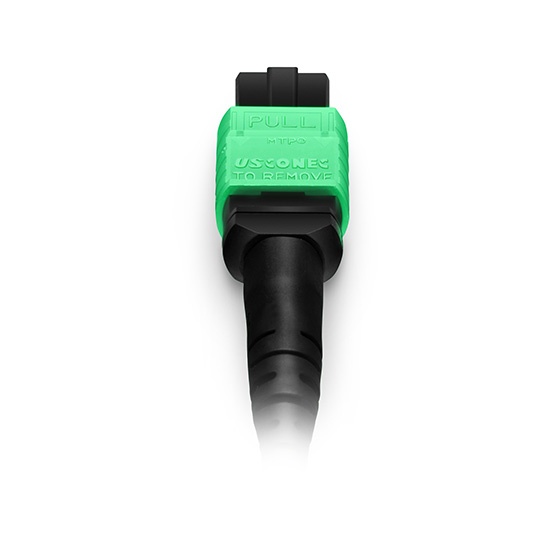

MTP® Connector
The MTP ® fiber optical patch cord provided by Vsunlight are all composed by USCONEC brand MTP connectors, and 100% tested and pass 3D IEC standard, as well as the equipment and process adjusted in accordance with IEC standards.
| Connector A | MTP | Connector B | MTP |
| Patch cord type | Trunk/Breakout patch cord | Fiber number | 2-72 cores |
| MPO IL | Standard loss/low loss | Polishing | SM:APC/MM:PC |

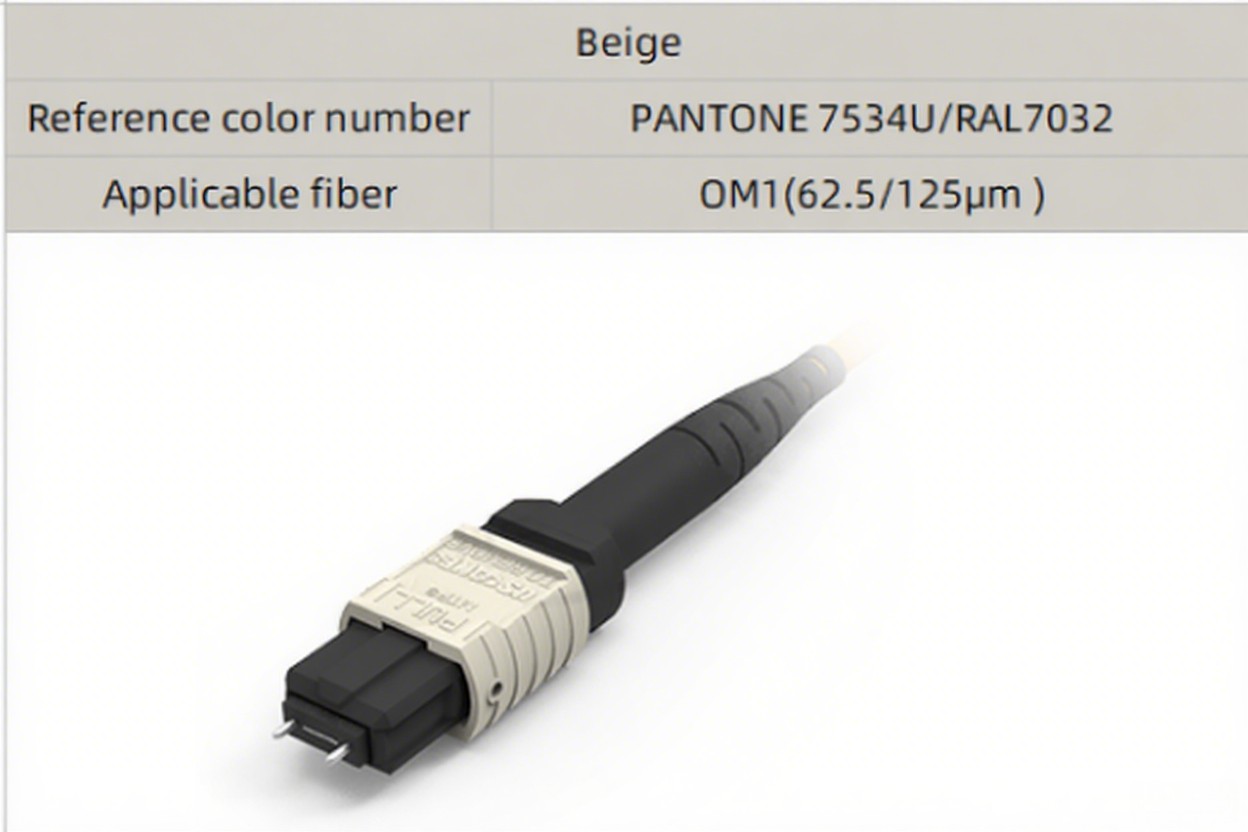

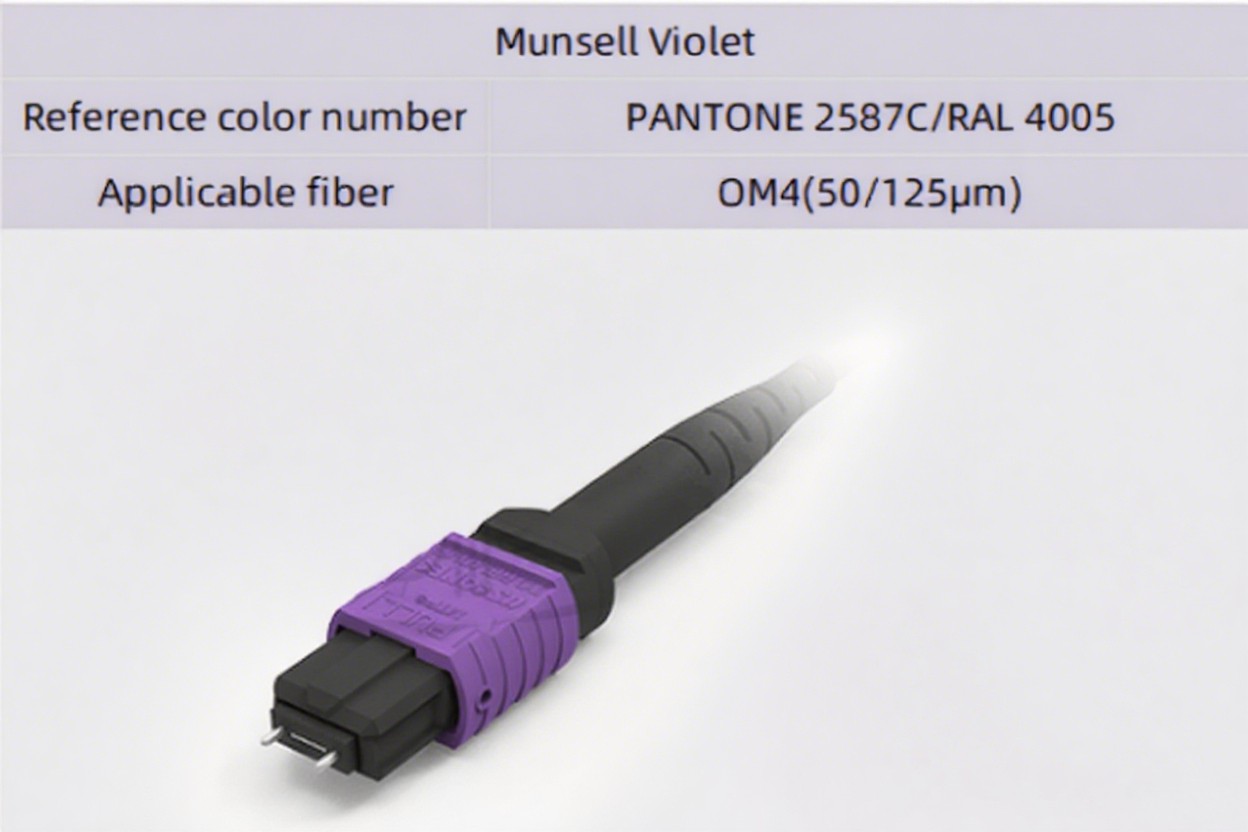

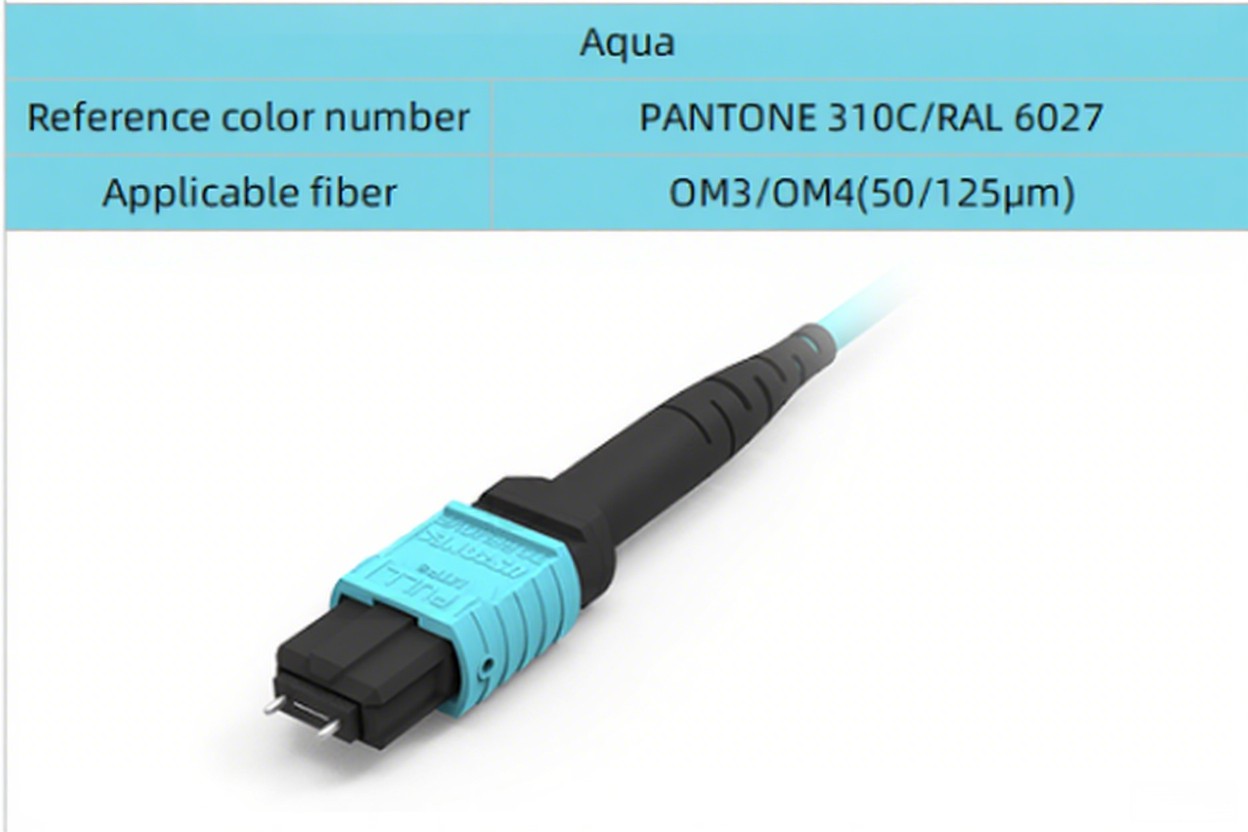

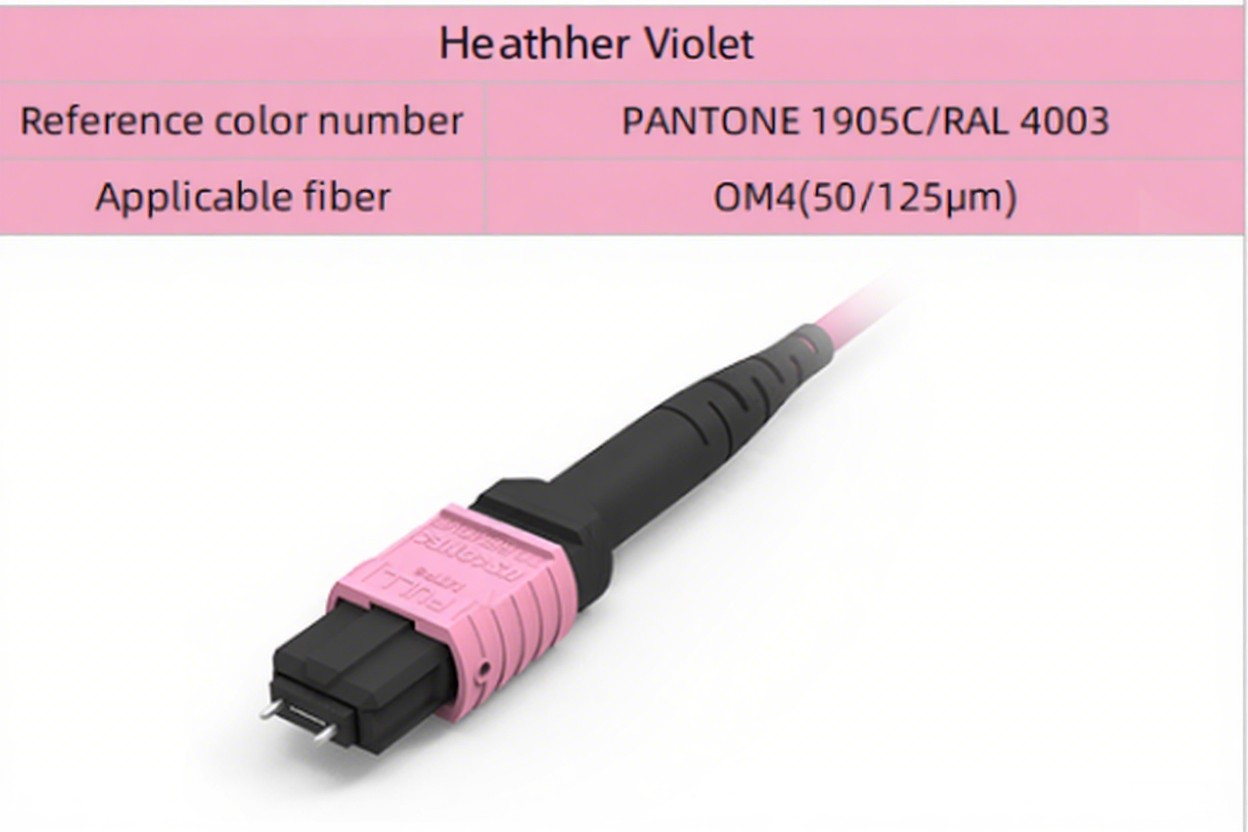

| Connector housing color | Yellow/Green/Beige/Aqua/Violet/Magenta/Lime green | Connector boot type | Round/ribbon/bare fiber |
| Connector type | Female/Male | RL | ≥20dB(MM);≥60dB(SM) |
| IL(Typical) | 0.12/0.25dB | IL(Max.value) | 0.25/0.5dB |
| Transmission rate | 40G/100G | Tolerance | +6cm |
| Cable outer diameter | 3.0/3.5/4.5/5.0mm | Cable color | Yellow/Aqua/Violet/Magenta/Lime green |
| Cable material | LSZH/PVC | Flame retardant grade | OFNR/OFNP |
| Fiber brand | Corning/YOFC | Fiber type | G657A1/OM3/OM4/OM5 |
| Working wavelength | 1310/1550(SM);850/1300(MM) | Fiber loss | 0.35dB@1310nm/0.2dB@1550nm/2.4dB@850nm/0.6@1300nm |
| Min.bending radius(Short term) | 10D | Min.bending radius(long term) | 20D |
| Polarity | Type A/B/C/others | Durability | ≥500 times |
| Operating temperature | -10 to 70℃（14 to 158 ℉） | Storage Temperature | -40 to 85℃（-40 to 185 ℉） |

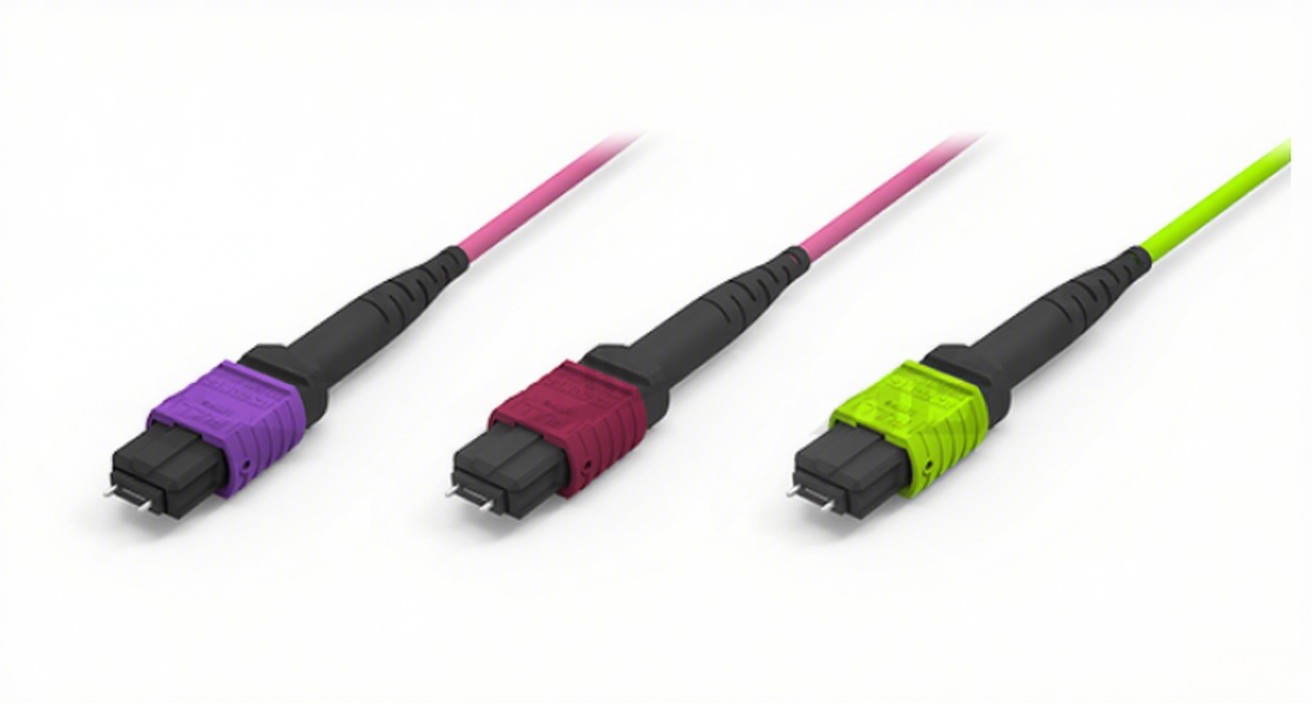

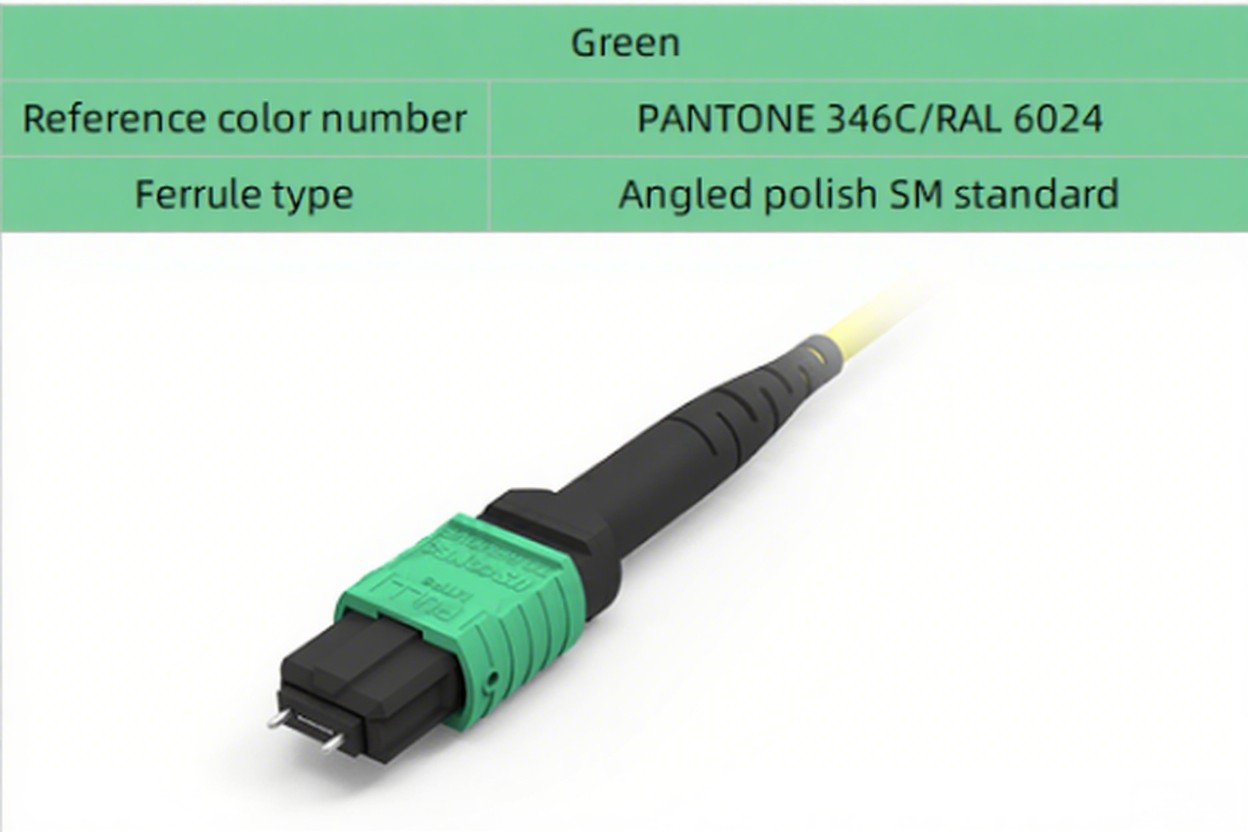

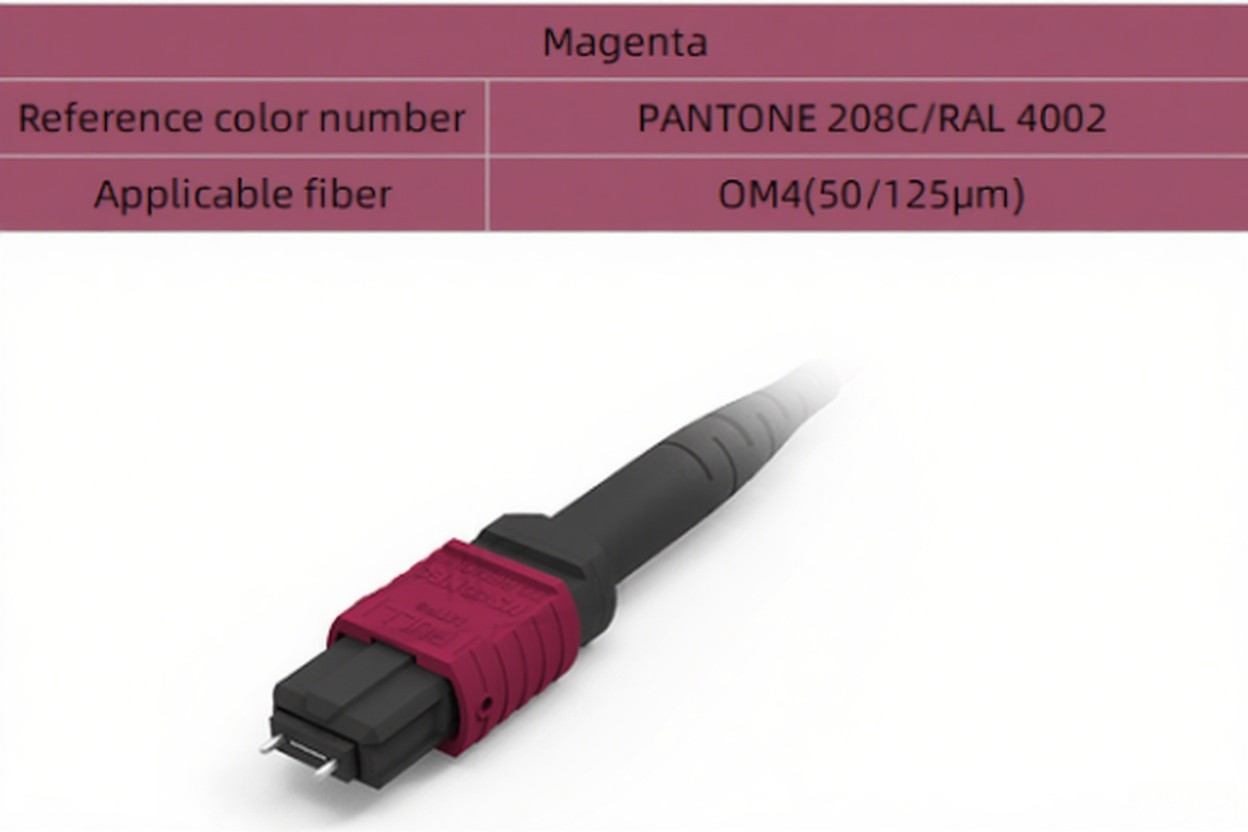

SM Yellow OM3/OM4 Aque OM4 Violet OM5 Green
single mode |  |  |
Multimode |  |  |
Multimode |   |   |
PERFORMANCE
| Ferrule type | Insertion loss | Return loss | |
| Typical | Maximum | ||
| SM standard loss | ≤0.20dB | ≤0.75dB | ≥60dB(APC 8°) |
| SM low loss | ≤0.10dB | ≤0.35dB | |
| MM standard loss | ≤0.20dB | ≤0.60dB | ≥20dB |
| MM low loss | ≤0.10dB | ≤0.35dB | |
| Fiber mode | Performance | Fiber count |
| Single mode | Standard loss | 12(1×12) |
| 24(2×12) | ||
| Low loss | 12(1×12) | |
| Multimode | Standard loss | 12(1×12) |
| 12(1×16) | ||
| 24(2×12) | ||
| 32(2×16) | ||
| Low loss | 12(1×12) | |
| 24(2×12) |
