Description

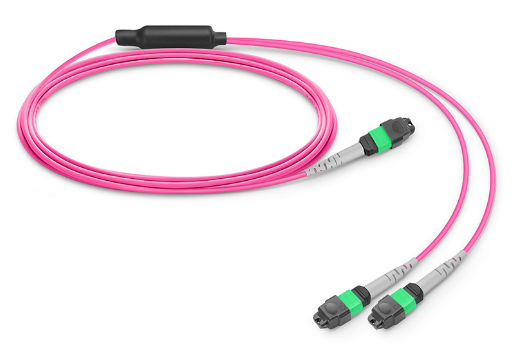

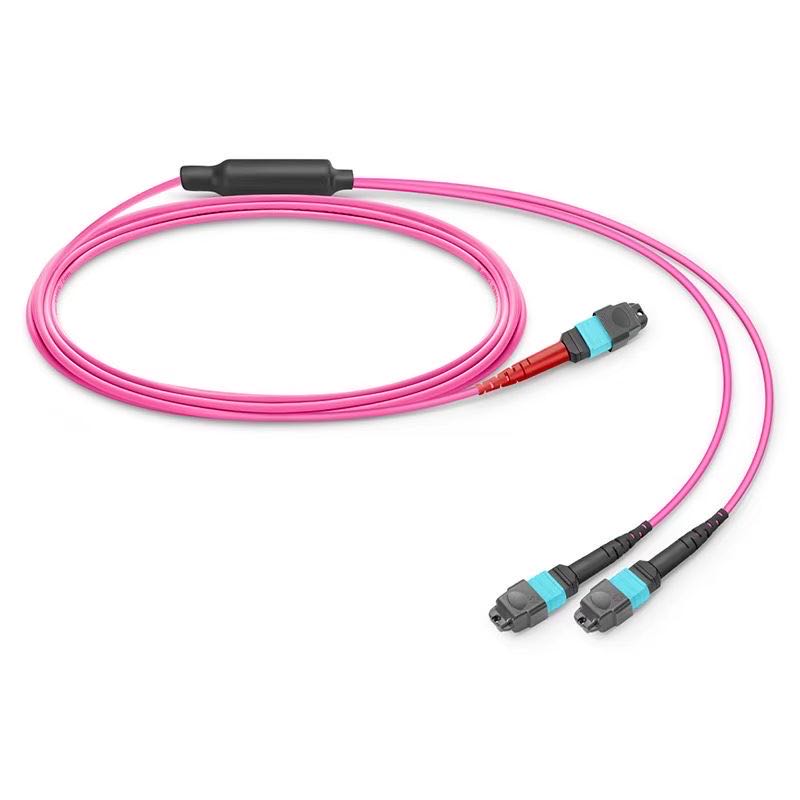

MTP®/MPO Breakout Cable, MTP®-12 APC (Female) to 2 x MTP®-4 APC (Female)

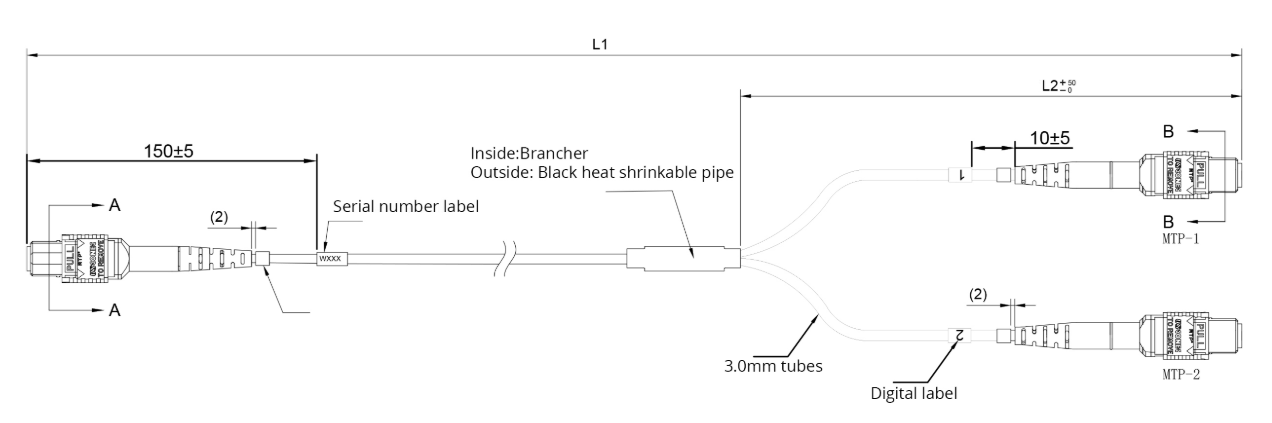

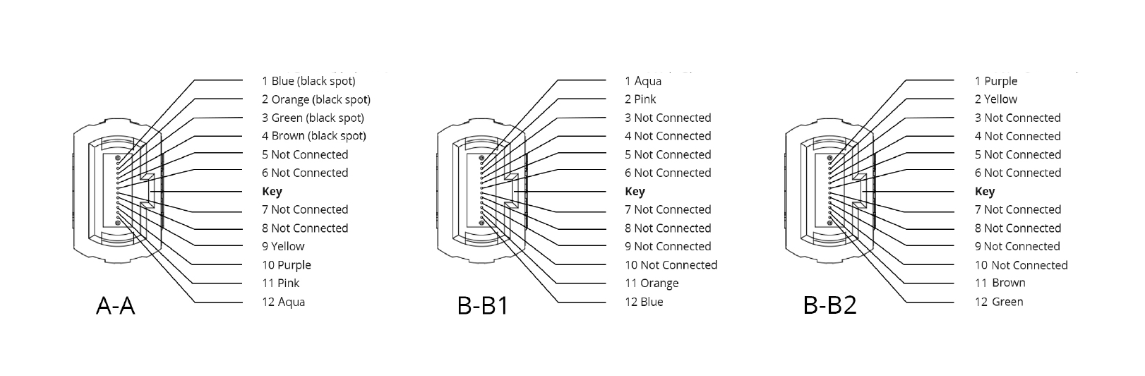

MTP® /MPO breakout cable is designed to provide a more flexible multifiber cabling system based on MTP®/MPO products. Unlike MTP® /MPO harness cable, MTP® /MPO breakout cables are terminated with MTP® /MPO connectors on both ends, can provide more possibilities for the existing 8/16/24 fiber cabling system.MTP®/MPO-12 APC to 2 x MTP®MPO-4 APC Breakout harness cable, whose MTP®/MPO-12 connectors only use 8 active fibers to transmit light and 4 inactive fibers not connected and MTP®/MPO-4 connectors use MTP®-12 only 4 active fibers to transmit light and 8 inactive fibers not connected.
Specifications
Connector A MTP®/MPO Female Connector B MTP®/MPO Female Fiber Mode OM3/OM4 50/125 Wavelength 850/1300nm 400G Ethernet Distance 50/100m at 850nm 800G Ethernet Distance 50m at 850nm Glass Fiber Corning ClearCurve® Multimode Fiber Polish Type APC to APC Insertion Loss 0.35dB Max (0.15dB Typ.) Return Loss ≥20dB Attenuation at 850nm ≤2.3dB/km Attenuation at 1300nm ≤0.6dB/km Cable Jacket Plenum (OFNP) Minimum Bend Radius 7.5mm Cable Outside Diameter (OD) 3.0mm Breakout Length 0.5m Installation Tensile Load 66N Tensile Strength 60/120N (Long/Short Term) Operating Temperature -10 to 60°C (14 to 140℉) Storage Temperature -10 to 70°C (14 to 158℉) |

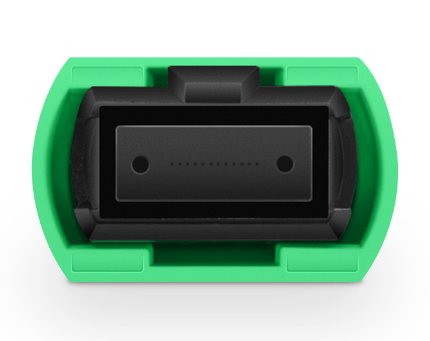

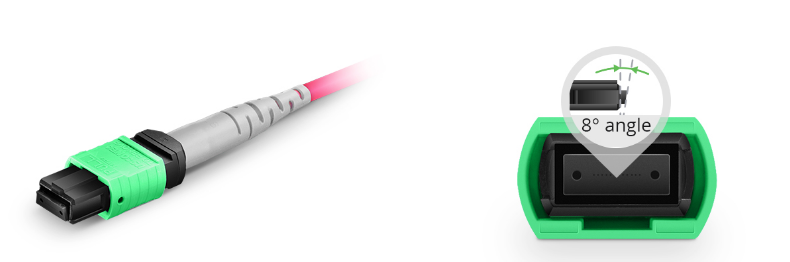

| MTP® Connector delivers stable signals and achieves flexible system design | The APC polish provides a minimal reflection of the optical signal for optimal signal integrity. |

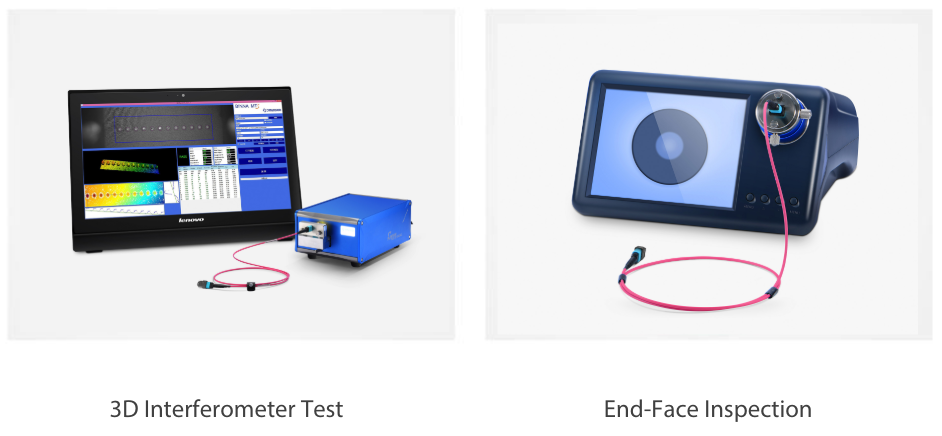

Comprehensive performance testing system ensures more secure operation and keeps more stable and reliable data connection. 3D interferometer provides verification of MTP®/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards. Clean optical connectors are paramount in providing a reliable, high-performance fiber optic infrastructure.
