Description

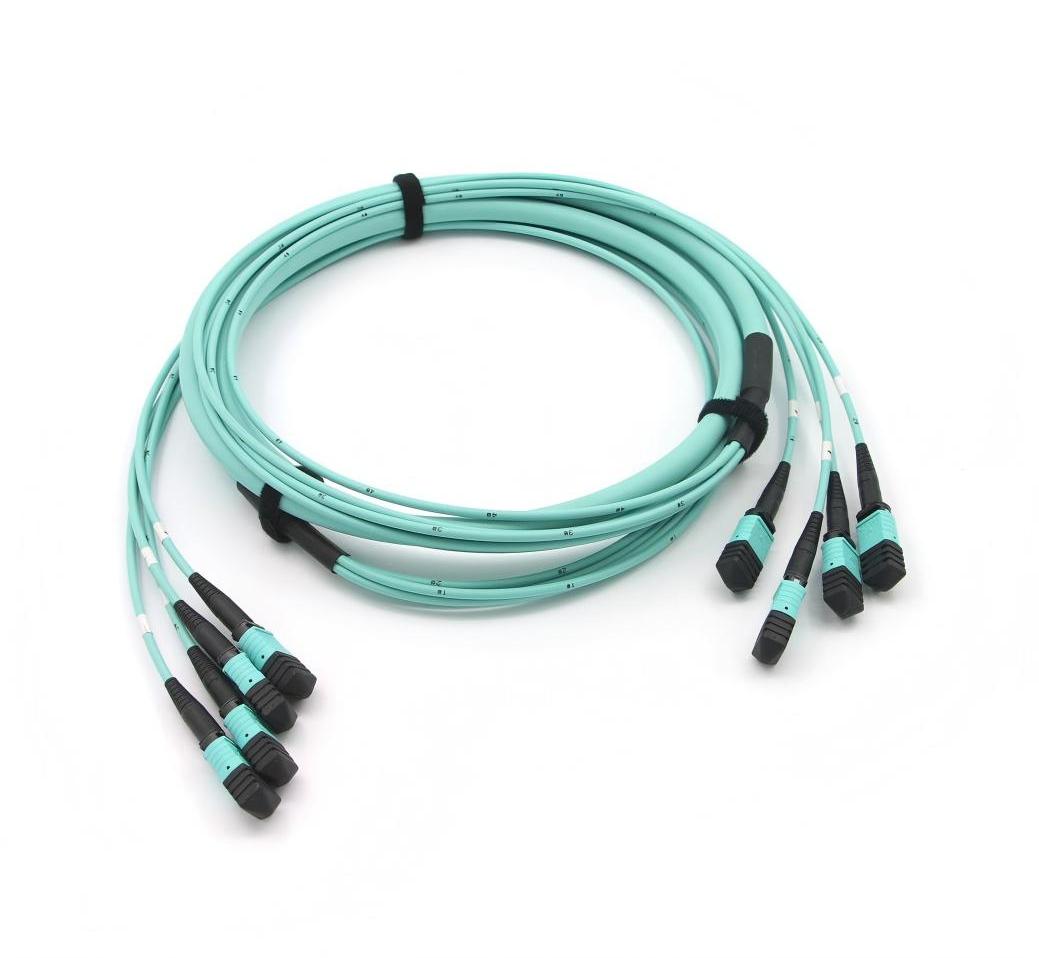

MTP® /MPO Trunk Cable, MTP®-12 UPCto MTP®-12 UPC , 48 Fibers, Multimode (OM3)
MTP®/MPO trunks are high - capacity optical fiber assemblies that consist of multiple MTP® or MPO connectors and a bundled group of optical fibers. They are designed to handle a large number of optical fiber connections in a single, organized unit. Similar to MTP®/MPO harnesses but often with a greater number of fibers and a more robust construction in some cases, trunks serve as a crucial part of high - density optical cabling systems.
Inside the trunk, there is a substantial bundle of optical fibers. The fibers can be single - mode or multi - mode, depending on the application requirements. Single - mode fibers are preferred for long - distance, high - bandwidth applications such as telecommunications backbones, while multi - mode fibers are commonly used for shorter - distance connections within data centers or local area networks.
In data centers, MTP®/MPO trunks play a vital role in establishing high - density fiber optic connections. They are used to connect different racks, cabinets, or even different areas within the data center. For example, they can link the core switching area with server racks, enabling high - speed data transfer between servers and network equipment. The use of trunks helps in reducing cable clutter, optimizing space utilization, and improving the overall manageability of the data center's cabling infrastructure.

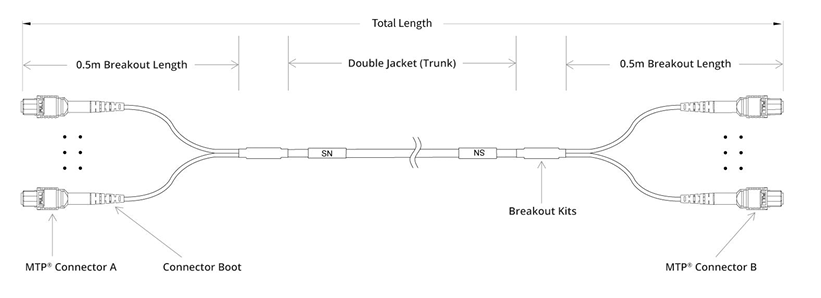

Connector A MTP®/MPO Female Connector B MTP®/MPO Female Fiber Mode OM3 50/125μm Wavelength 850/1300nm Glass Fiber Corning/YOFC® Multimode Fiber Minimum Bend Radius 7.5mm Polish Type UPC to UPC Polarity Type B Cable Jacket Plenum (OFNP) Cable Structure Double Jacket Fiber Count 48 Fibers Breakout Length 0.5m Cable Outside Diameter (OD) 8.5-9.0mm Breakout Outside Diameter (OD) 2.0mm Insertion Loss 0.35dB Max Return Loss ≥20dB Attenuation at 850nm ≤3.5dB/km Attenuation at 1300nm ≤1.5dB/km Long-term Tensile Load 200N Short-term Tensile Load 660N Operating Temperature -10 to 60°C (14 to 140°F) Storage Temperature -10 to +70°C (14 to 158℉) |

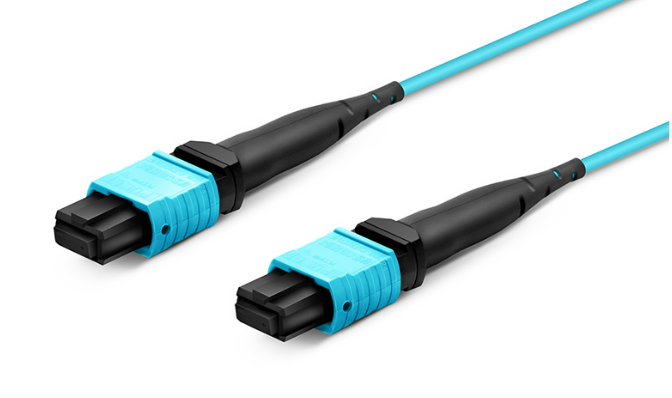

| MTP® Connector delivers stable signals and achieves flexible system design | The UPC polish provides a minimal reflection of the optical signal for optimal signal integrity. |
Comprehensive performance testing system ensures more secure operation and keeps more stable and reliable data connection. 3D interferometer provides verification of MTP®/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards. Clean optical connectors are paramount in providing a reliable, high-performance fiber optic infrastructure.
Products Listing
MPO-4 Trunk | |
Vsunlihgt PN | DES |
Trunk-4XMPOFLCOS2 | MPO Harness, 4XOS2-MPO/FEMALE-12F , Type B, Yellow,XXm |
Trunk-4XMPOFLCOM4 | MPO Harness, 4XOM4-MPO/FEMALE-12F , Type B, Magenta, XXm |
MPO-8 Trunk | |
Vsunlight PN | DES |
Trunk-8XMPOFLCOS2 | MPO Harness, 8XOS2-MPO/FEMALE-12F , Type B, Yellow,XXm |
Trunk-8XMPOFLCOM4 | MPO Harness, 8XOM4-MPO/FEMALE-12F , Type B, Magenta, XXm |
Customized MPO-Trunk | |
VSUN PN | DES |
Harnesses-XXFMPOFLCOS2 | MPO Trunk Cable, 8-288F, OS2, Yellow, XXm |
Harnesses-XXMPOFLCOM4 | MPO Trunk Cable, 8-288F, OS2, Yellow, XXm |
