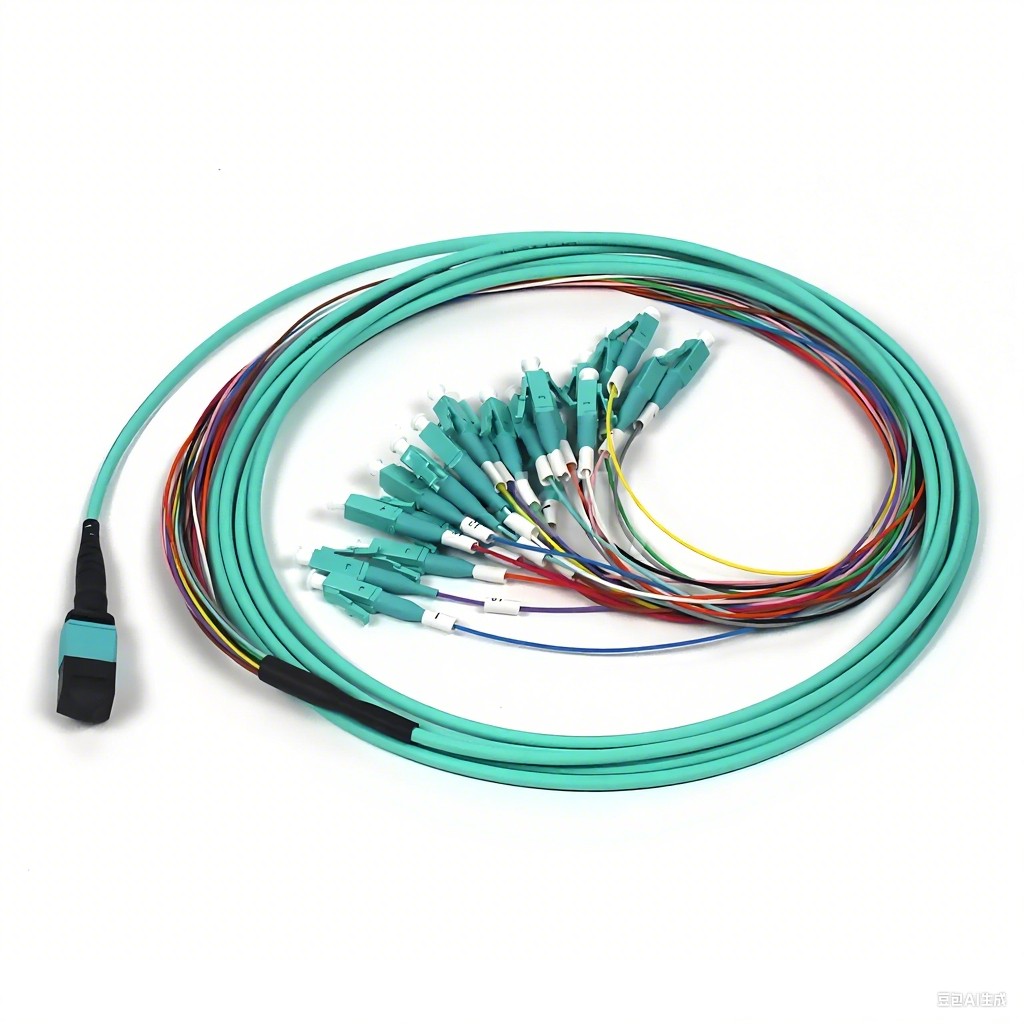

MTP®/MPO harness cables-Fanout kit-0.9mm breakout
MTP®/MPO harness cables are a kind of MTP®/MPO fanout harness cable or breakout cable assembly with one MTP®/MPO connector on one end and multiple single-fiber connectors (LC, SC, FC, etc.) on the other end, designed for data distribution and routing to patch panels. It is used to transition from trunk backbone assemblies to fiber rack systems. The MTP® harness cable is fully configurable, available with a variety of cable and connector combinations. For the hardware and equipment in the same cabinet, the longer MPO cord can provide flexibility at any location, and the branch MTP®/MPO cable can be winded into the vertical cable organizer.
PRODUCT PARAMETERS
| Performance Level | Standard | Elite | ||||
| Connector | Mode | Endface | IL(max)(dB) | RL(min)(dB) | IL(max)(dB) | RL(min)(dB) |
| MPO/MTP | SM | 12F/APC | ≤0.70 | ≥60 | ≤0.35 | ≥60 |
| 24F/APC | ≤0.70 | ≥60 | ≤0.35 | ≥60 | ||
| 48F/APC | ≤0.70 | ≥60 | ||||
| MM | 12F/PC | ≤0.70 | ≥20 | ≤0.35 | ≥20 | |
| 24F/PC | ≤0.70 | ≥20 | ≤0.35 | ≥20 | ||
| 48F/PC | ≤0.70 | ≥20 | ||||
| LC/SC/FC/ST | SM | APC | ≤0.70 | ≥60 | ≤0.10 | ≥60 |
| UPC | ≤0.70 | ≥50 | ≤0.10 | ≥50 | ||
| MM | PC | ≤0.70 | ≥30 | ≤0.10 | ≥30 | |
Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.
|
|
|

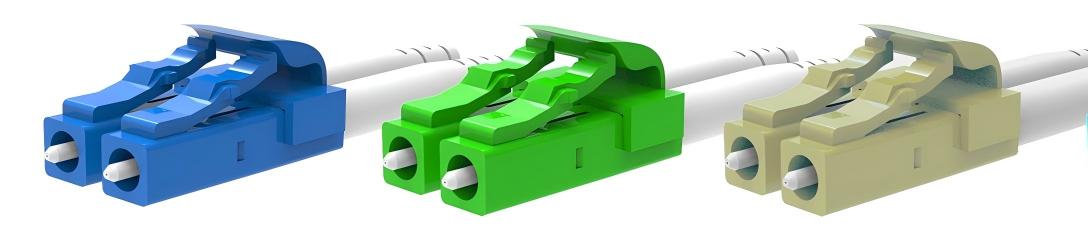

| US Conec MTP® Connector with Optimal 0.35dB Low IL | Corning ClearCurve® Multimode Fiber | LC UPC Duplex |
Fiber count
6 fibers | 8 fibers | 12 fibers | 24 fibers | 48 fibers | |

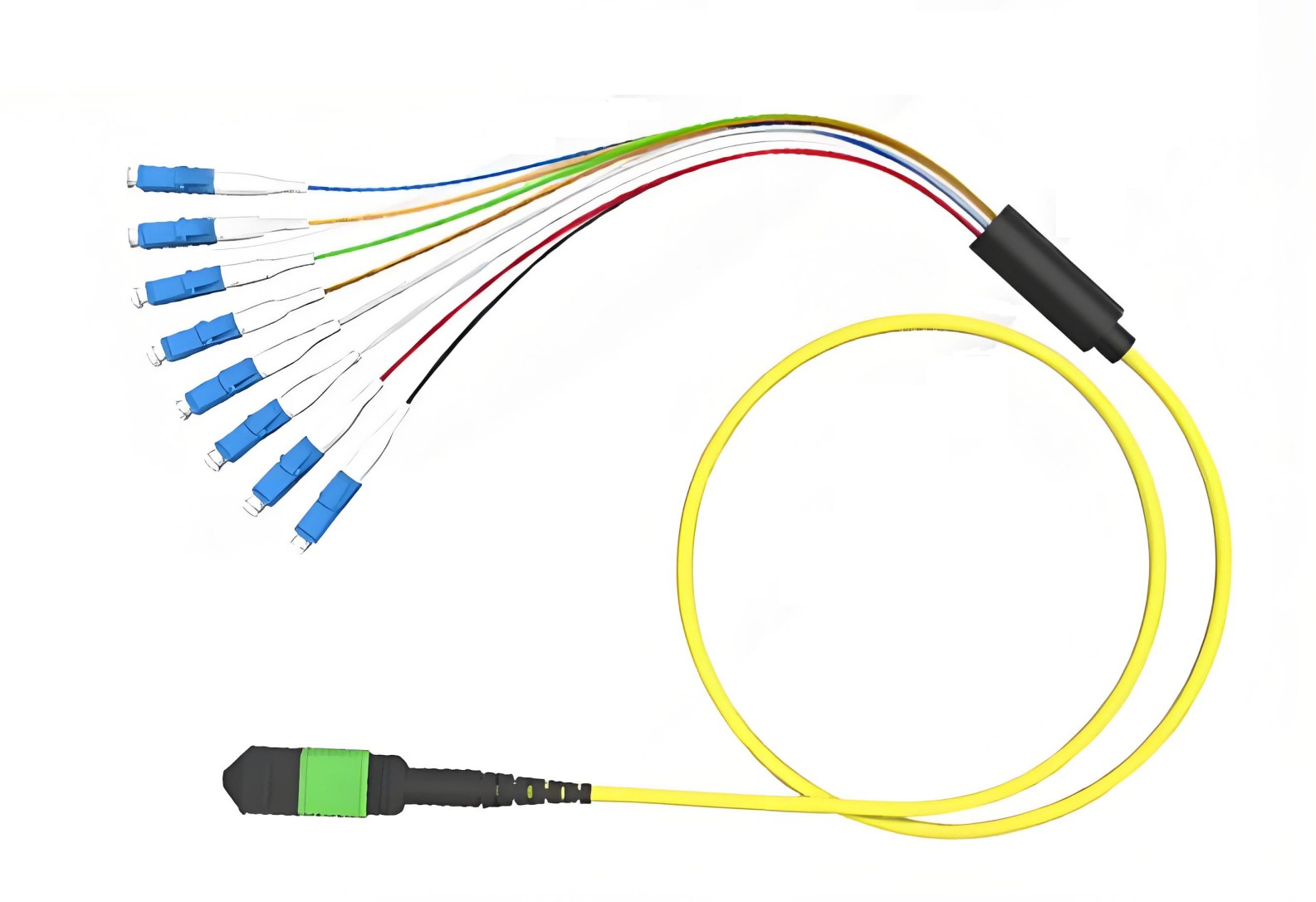

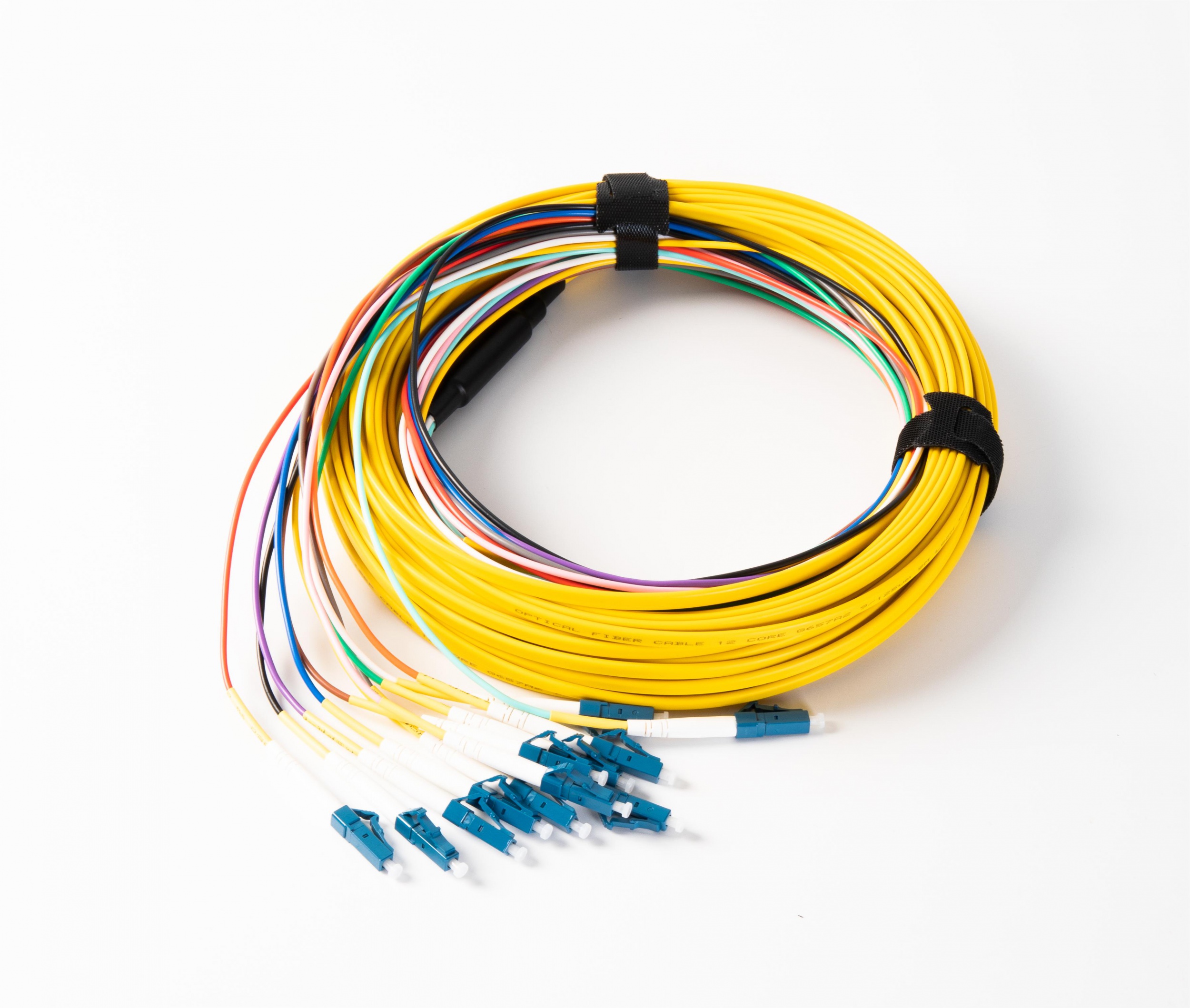

Mini round cable / Ribbon cable-Fanout kit -0.9mm breakout |  |
|
|
|
|
Fiber Type
 | |
|  |

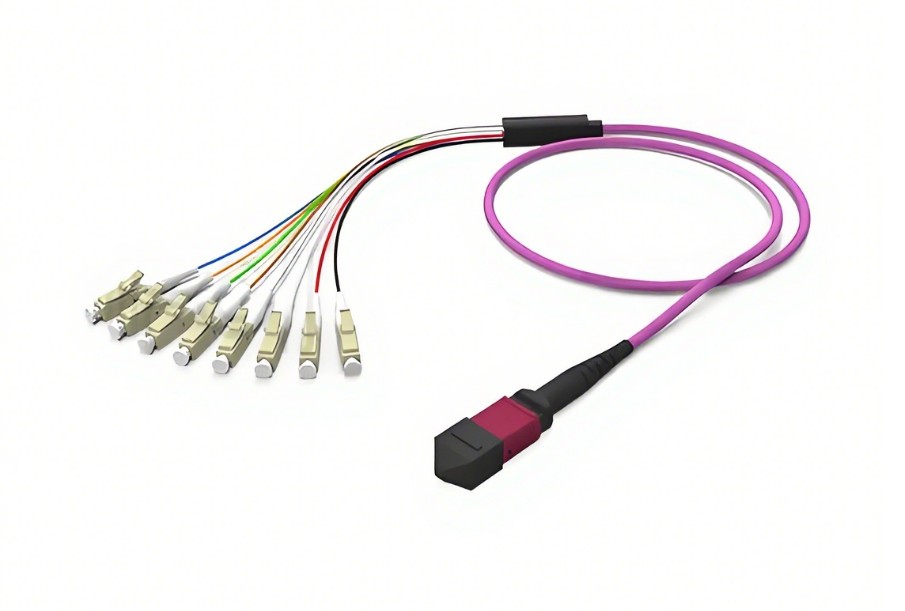

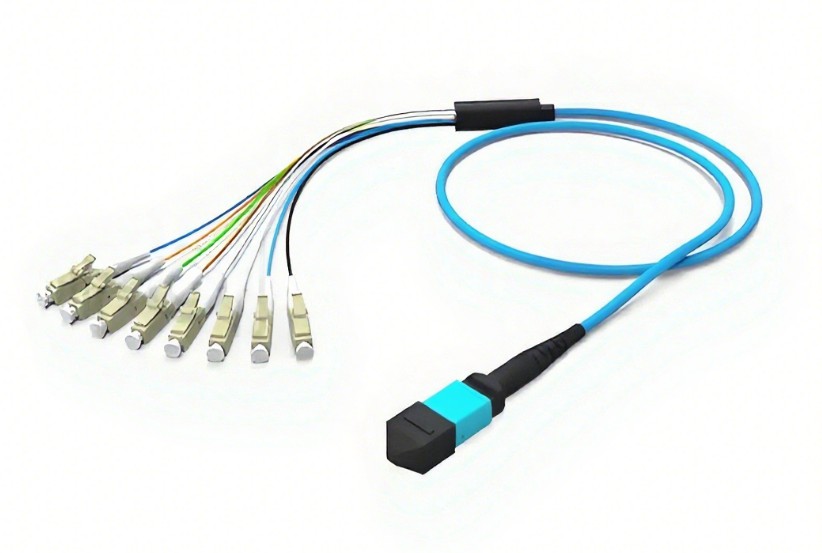

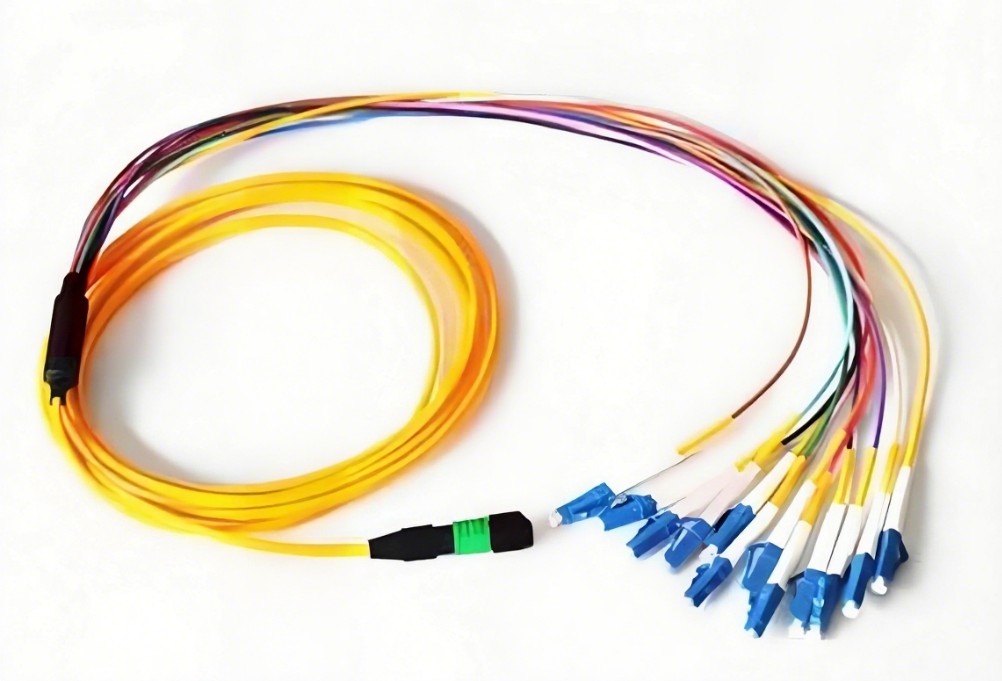

| SM(G652D/ G657A1/ G657A2/ G657B3 ) | OM3(With aqua sheath) | OM4(With aqua,violet or pink sheath) | OM5(With lime green sheath) |
Connector Option
Male / Female
connector housing
Breakout length Cable Structure
