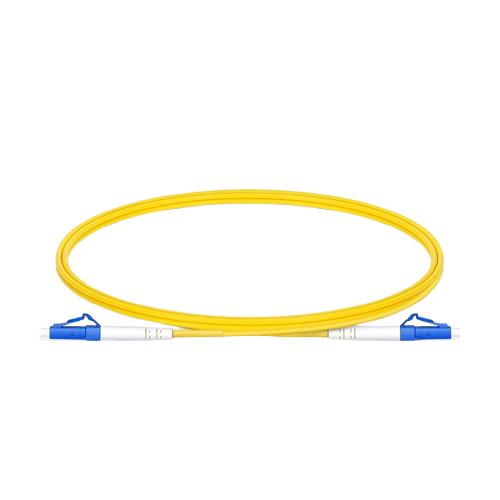

Simplex OS2 Single Mode Fiber Optic Patch Cable
Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It is best suited for long distance application and can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
Specifications

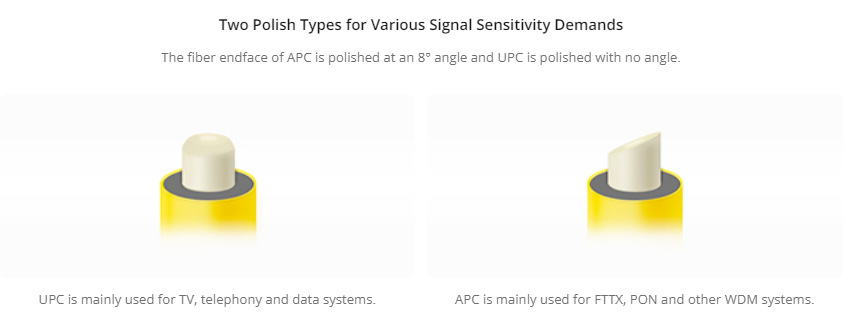

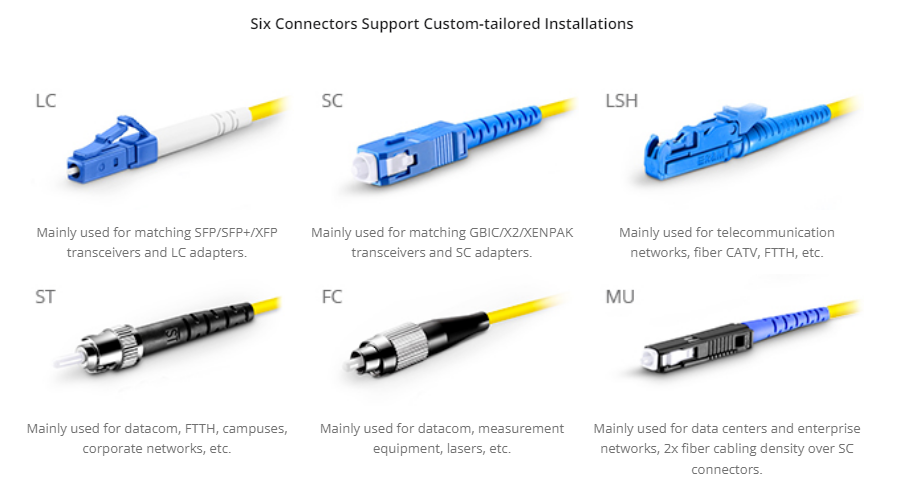

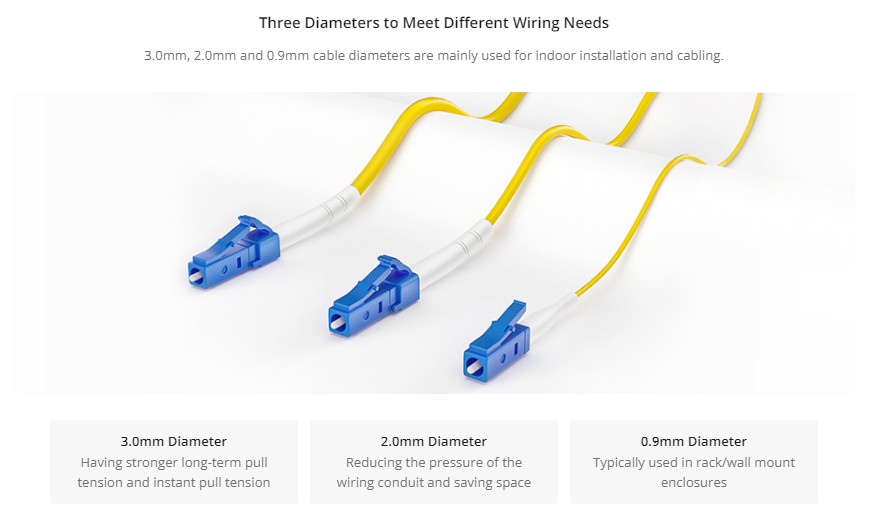

Connector Type LC/SC/ST/FC/LSH/MU Polish Type UPC/APC Fiber Count 1 Fiber Glass Fiber Corning SMF-28® Ultra Fiber Fiber Mode OS2 9/125μm Wavelength 1310/1550nm Cable Type Tight-Buffered Cable Color Aqua/Black/Blue/Brown/Green/Orange/Red/Rose/ Slate/Violet/White/Yellow Cable Outside Diameter (OD) 2.0/0.9/3.0mm Flame Rating Riser (OFNR)/LSZH/Plenum (OFNP) Min. Bend Radius (Optical Fiber) 10mm Min. Bend Radius (Fiber Cable) 10/5D (Dynamic/Static) Connector Durability 1000 times Tensile Strength (Long/Short Term) 90/150N Insertion Loss ≤0.3dB Return Loss ≥50dB Attenuation at 1310nm 0.4dB/km Attenuation at 1550nm 0.3dB/km |
Custom Products Tailored to Your Need
Diverse Custom Options Strict Quality Control Technical Suppor
Choose suitable options based on your Ensure high quality products with state Get support fron professional
applications. of testing facility. engineer team.
