D-MD-8S0-1x5; DWDM Band split/combine filter

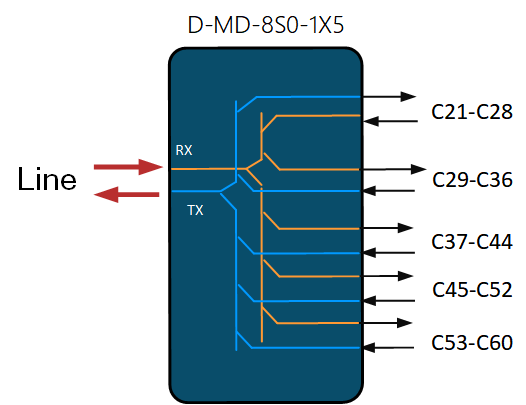

The D-MD-8S0-1x5 is a band split/combine filter with a line port and 5 channel band ports. The 40 DWDM channelsare split into five groups of 8 channels enabling fan-out configurations:

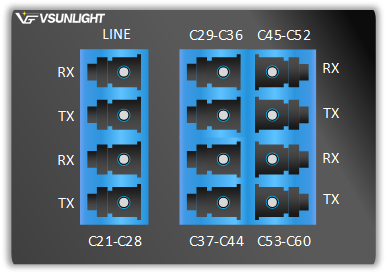

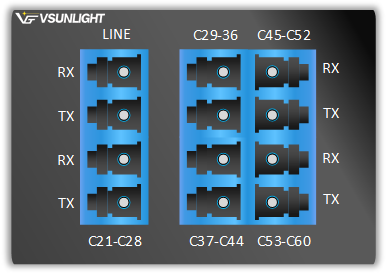

D-MD-8S0-1x5 icon and front plate
The channels of the sub ports match the channels of the H-MD-09-xxx-yyy and H-MD-09-xxx-yyy-EM-LL DWDMMux/Demux filters
| PARAMETER | D-MD-8S0-1X5 | Loss values at I-temp conditions. |
| Insertion loss, Line Ch band Tx | ≤2.0dB |

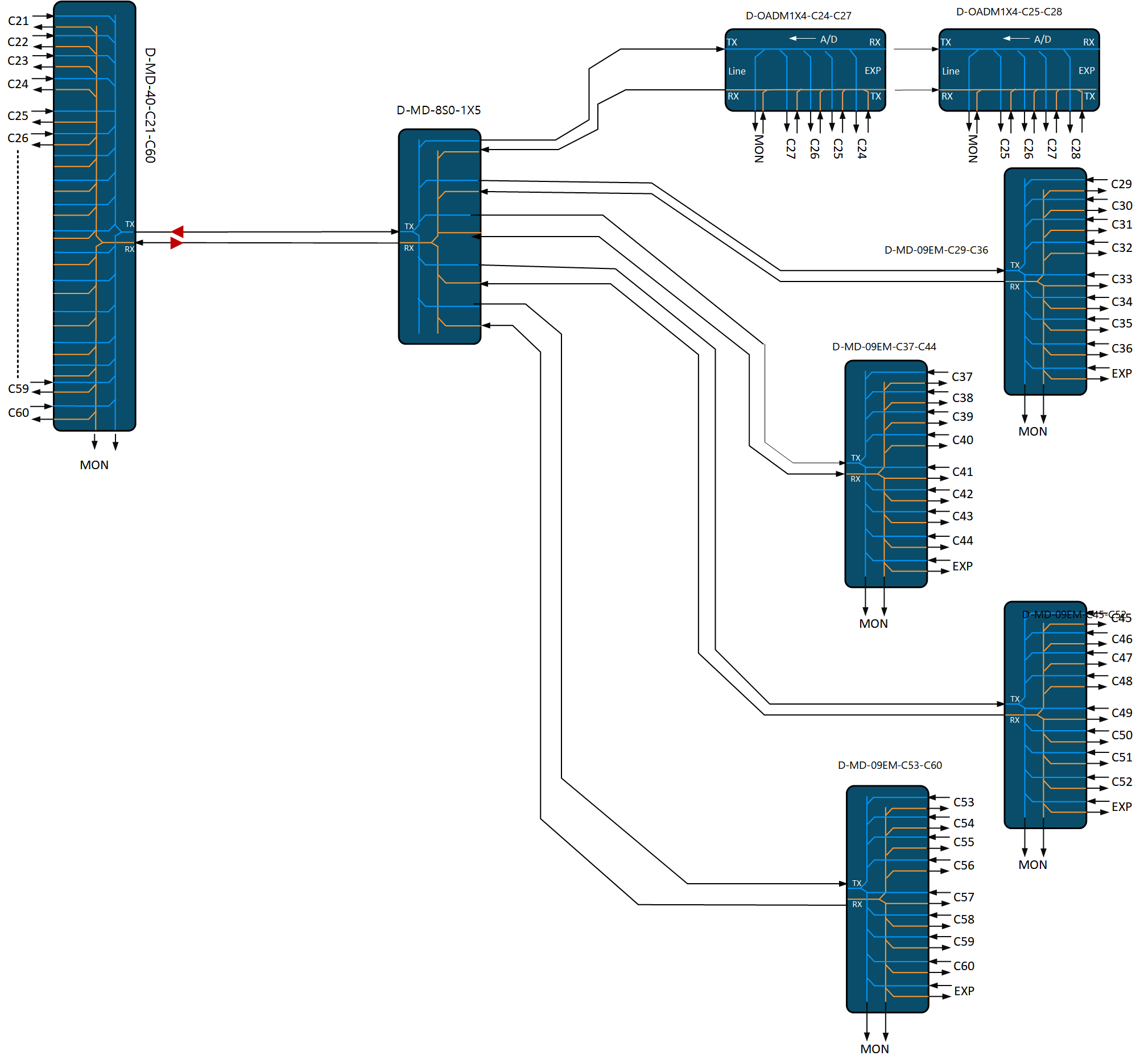

The figure below shows a network example where one branch is using two 4ch AD-filters to enable 4ch drops attwo different locations. The other branches use 8ch Mux/Demux filters to terminate all 8 channels.The example includes optical amplifiers at the head-end to extend the distance. Vsunlight provides both amplification and automatic power balancing in a 1 RU rack mount.
→
Attached file ：D-MD-8S0-1X5 For more technical data。
