Description

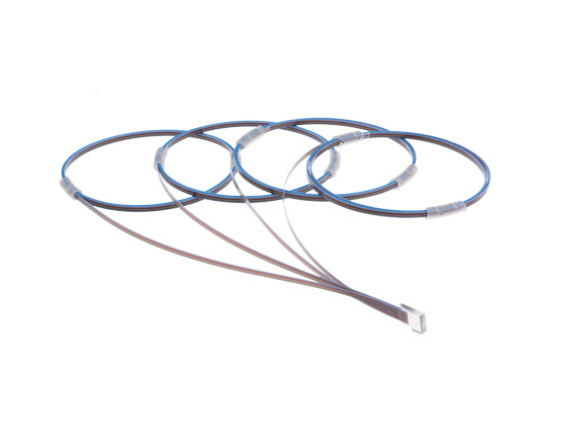

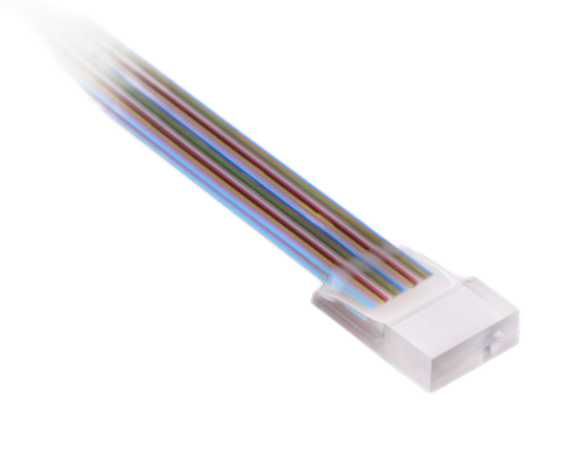

Fiber Array
Fiber arrays are optical devices formed by arranging a beam of fibers or strips of fiber at specified intervals and fixing them to a substrate using a V-groove substrate. It is mainly composed of components such as V-slot bottom plate, cover, optical fiber and glue. The core advantages of fiber arrays lie in their high-precision fiber arrangement and low-loss optical signal transmission capabilities, and have become key components in planar optical waveguides, array waveguide gratings (AWGs), and microelectromechanical systems (MEMS).
Vsunlight self-produced fiber array provides a variety of options, such as the channelnumber of fiber array, core spacing and grinding angle. It is widely used in planaroptical waveguide (PLC), arrayed waveguide grating (AWG), Active array opticaldevices in different fields such as MEMS and so on .
Optical Performance
Parameter | Unit | Specifications |
Number of Channels | CH | 2CH\4CH\5CH\8CH\9CH\16CH\32CH\64CH\128CH |
Fiber Spacing | um | 2CH\4CH\8CH:250±0.5，8CH\16CH\32CH\64CH:127±0.5 |
Insertion Loss@Typ | dB | 0.15 |
Return Loss | dB | 55 |
Grind angle | ° | 8 |
Angle control | ° | ±0.3 |
Operation Temperature | ℃ | -40~85℃ |
Fiber type | / | Corning G657A1/A2 or Customer specify |

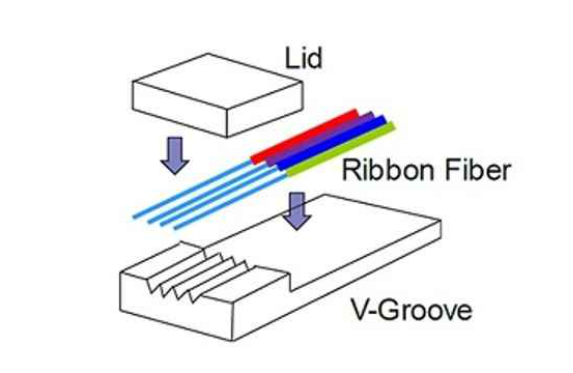

Fiber Array Structural diagram
According to their physical principles, fiber array Consisting of three parts: V-groove、Ribbon Fiber and Lid.
Ordering Information

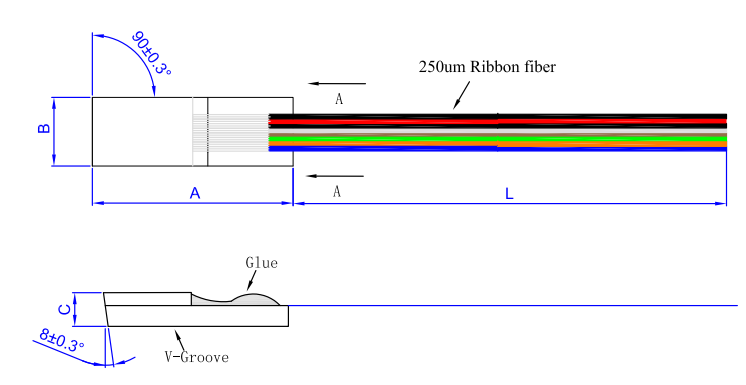

Channel | Fiber type | A(mm) | B(mm) | C(mm) | L(mm) | Fiber color |
4CH | 1 four core fiber | 10±0.2 | 2.5±0.05 | 2.5±0.05 | 1.5or2.5 | Blue\Orange\Green\Brown |
8CH | 2 four Cores fiber | 10±0.2 | 2.5±0.05 | 2.5±0.05 | 1.5or2.5 | Blue\Orange\Green\Brown X2 |
8CH | 1 eight core fiber | 10±0.2 | 3.0±0.05 | 2.5±0.05 | 1.5or2.5 | Blue\Orange\Green\Brown\Gray\White\Red\Black |
16CH | 2 eight cores fiber | 12±0.2 | 3.5±0.05 | 2.5±0.05 | 1.5or2.5 | Blue\Orange\Green\Brown\Gray\White\Red\Black X2 |
32CH | 4 eight cores fiber | 12±0.2 | 5.7±0.05 | 2.5±0.05 | 1.5or2.5 | Blue\Orange\Green\Brown\Gray\White\Red\Black X4 |
64CH | 8 eight cores fiber | 12±0.2 | 9.8±0.1 | 2.5±0.05 | 1.5or2.5 | Blue\Orange\Green\Brown\Gray\White\Red\Black X8 |

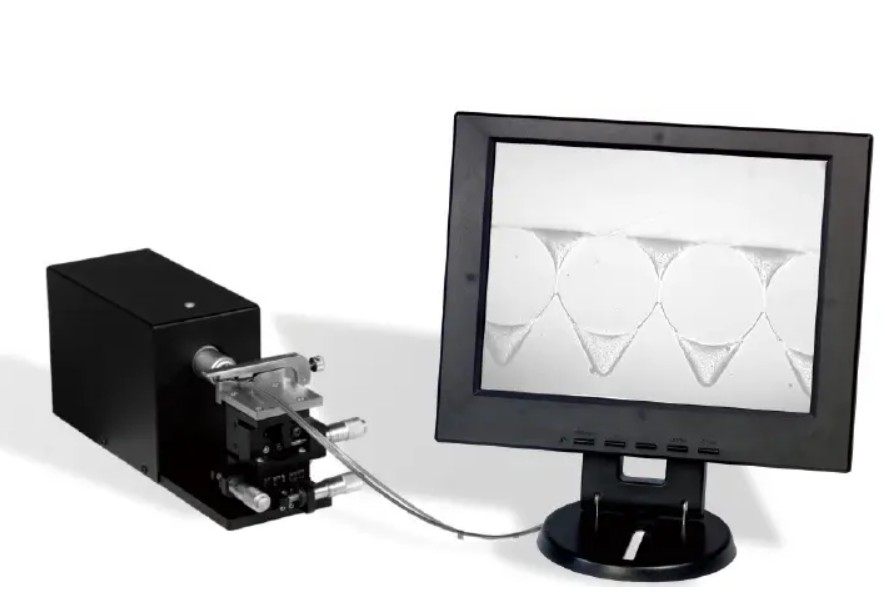

Fiber array inspection equipment
Application
- Planar optical waveguide（PLC）
- The arrayed waveguide grating（AWG）
- Bi-Direction Telecommunication
- Active/passive array optical fiber devices
- multi-channel micro-optical modules
 |  |  |  |

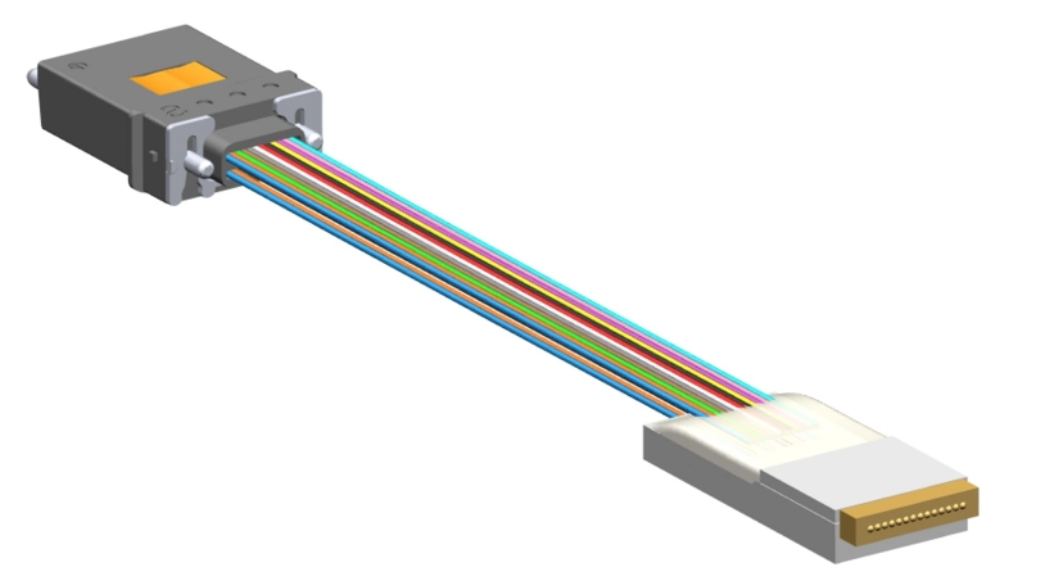

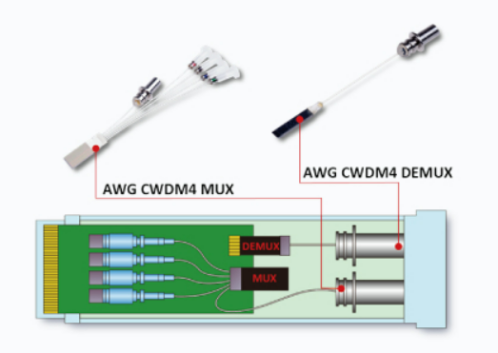

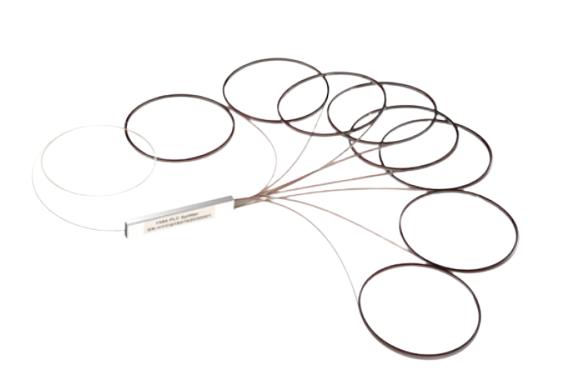

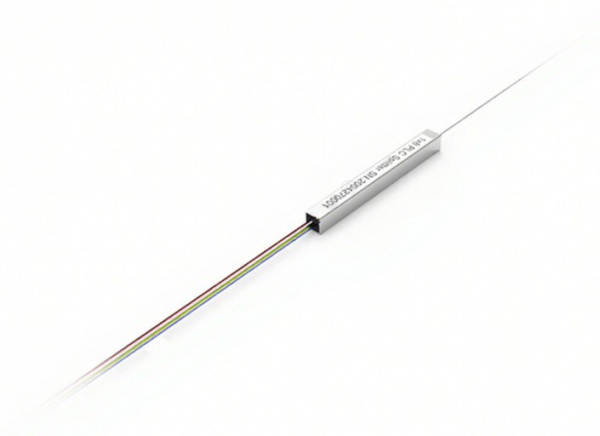

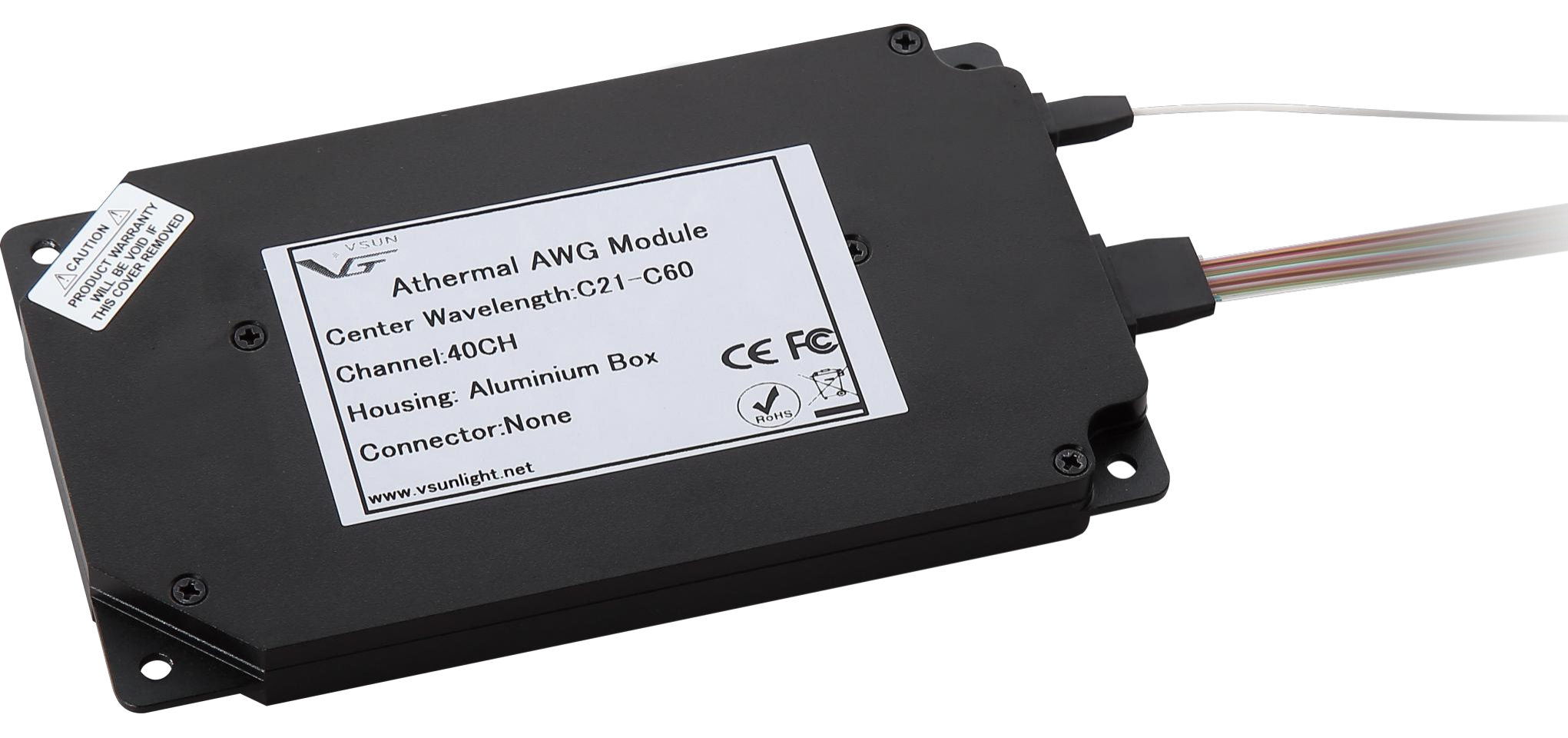

| PLC Splitter | AAWG | FA-MT | CWDM4 MUX&DEMUX |
Features
| Standards RoHS
Test Criteria
|
