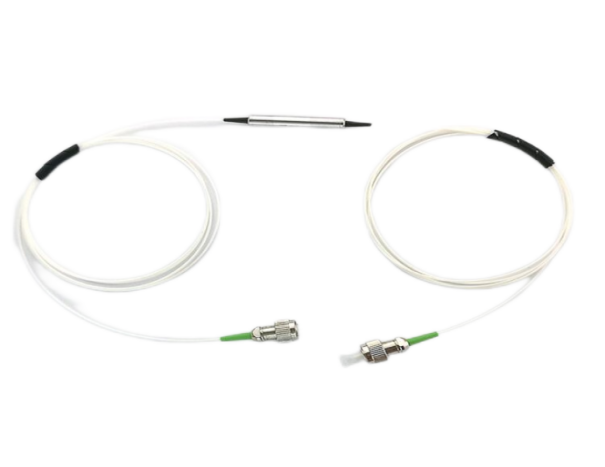

Optical Isolator
An optical fiber isolator is a passive device that allows the propagation of the one-way light waves and that is sufficiently isolated from reflected light to improve the transmission efficiency of light waves. Apply to erbium doped fiber amplifier, the performances and technical applications of theoptical isolator in detail. An optically isolated passive device made by Vsunlight is a passive device that transmits high-frequency signal energy in one direction in one direction, ensuring that light travels in only one direction. It is characterized by small forward insertion loss, high reverse isolation and high return loss. All versions are designed for use in an outdoor nvironment within a temperature range of –10 ℃ to +70 ℃.
Optical Performance
Parameter | Unit | Specifications | |
Physical | |||
Package | / | Refer To The Ordering Information | |
Environmental | |||
Operating Temperature | ℃ | -40 ~ +85 | |
Storage Temperature | ℃ | -40 ~ +85 | |
Optical Interface | |||
Connector | / | Refer To The Ordering Information | |
Optical | |||
Structure | / | Single Stage | |
Operating Wavelength | nm | λc±15 | |
Grade | / | P | A |
Insertion Loss@Typ | dB | 0.35 | 0.4 |
Insertion Loss@Max | dB | 0.45 | 0.55 |
Isolation@λc 23℃ Typ | dB | 40 | 35 |
Isolation@λc 23℃ Min | dB | 30 | 28 |
Polarization Dependent Loss | dB | ≤0.05 | ≤0.10 |
Polarization Mode Dispersion | Ps | ≤0.25/0.05 | |
Return Loss | dB | ≥60/55(Input/Output) | |
Insertion Loss Temperature Sensitivity | dB/℃ | ≤0.005 | |
Power Handing | mW | ≤500 | |
Notes:
- Insertion loss includes connector loss and covers the entire operating temperature.
- The specification does not include the connector.The insertion loss of the connector increases by 0.3dB and the Return Loss decreases by5dB.
- Above is the Vsunlight standard, if you have any other requirements, please contact sales@vsunlight.net for more options;
Ordering Information
ISO | Type | Operating Wavelength | Grade | Pigtail Type | Fiber Length | Connector Type |
S=SingleStage D=DualStage X=Customized
| 1=1310nm 2=1550nm X=Customize
| 1=P Grade 2=A Grade
| 0=250umbare fiber 1=0.9mmloosetube 2=2.0mmloose tube 3=3.0mmloose tube X=Customized
| 1=0.5m 2=1.0m 3=1.5m 4=2.0m 5=2.5m 6=3.0m X=Customized
| OO=None FU=FC/PC FA=FC/APC SU=SC/PC SA=SC/APC LU=LC/PC LA=LC/APC ST=ST/UPC XX=Customized
| |
Package Type(mm) | Φ3.8*L26(glass tube) | Φ5.5*L35/Φ5.5*L38(steel tube) | Customized | |||

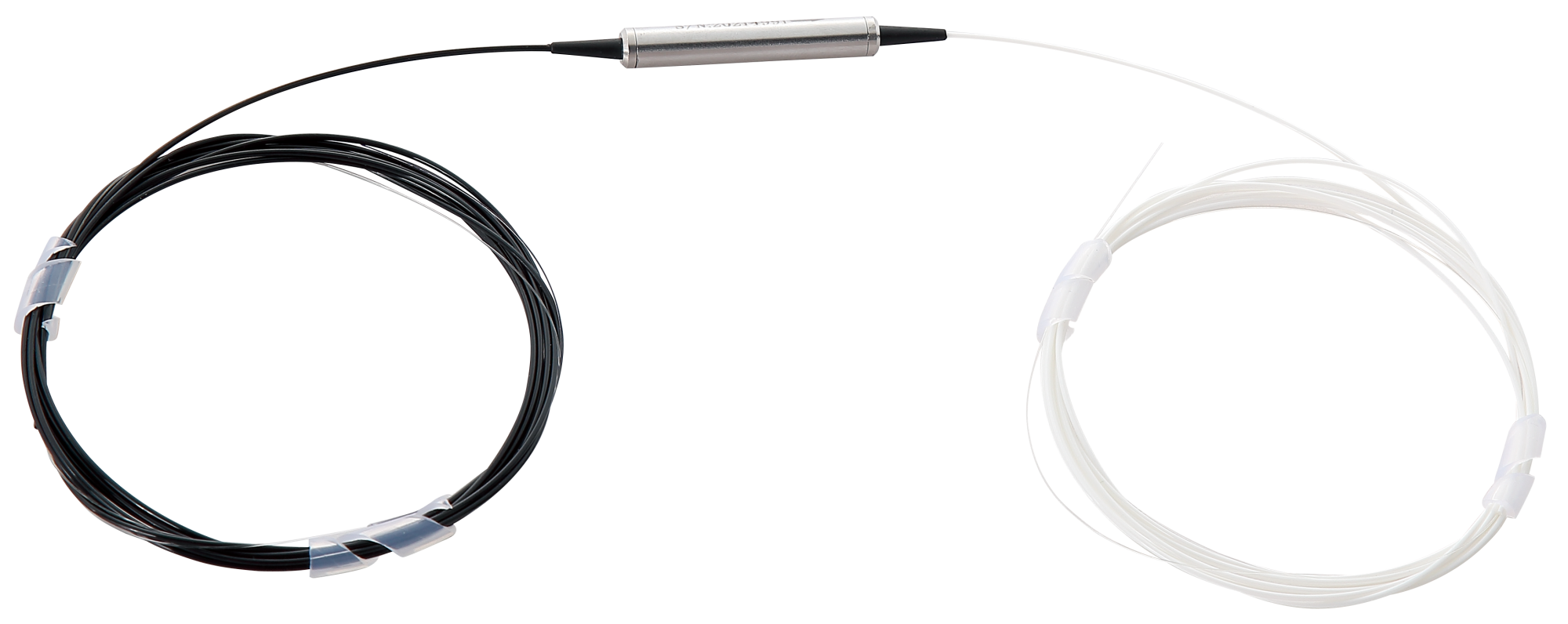

Product Diagram
When optical signals are transmitted in optical fibers, they usually have certain losses. Therefore, in fiber optic networks, erbium-doped fiber amplifiers (EDFA) are required to amplify the light to compensate for the energy loss caused by insertion loss. As a very important optical amplifier device in medium and long distance fiber optic networks, EDFA has three main applications in fiber optic networks, including relay amplification, pre amplification, and post amplification, to ensure that optical signals can be transmitted for hundreds or even thousands of kilometers.
Features
- High isolation
- Low insertion loss
- High return loss
- Low polarizationdependentloss(PDL)
- Low polarization mode dispersion
- Ultra Stable and Highly Reliable
- Epoxy-free optical path
