L-MD-4LAN-EM-SFX; LAN WDM Mux/Demux filters

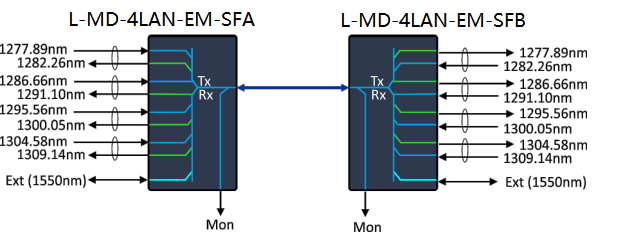

There are eight LANWDM channels defined and theD-MD-4LAN-EM-SFx filters are using one channel in uplinkand another in downlink, providing 4 bi-directional channels in total. Consequently, there are two different filters,denoted “A” and “B” where the difference lies in the transmitted and received channels.

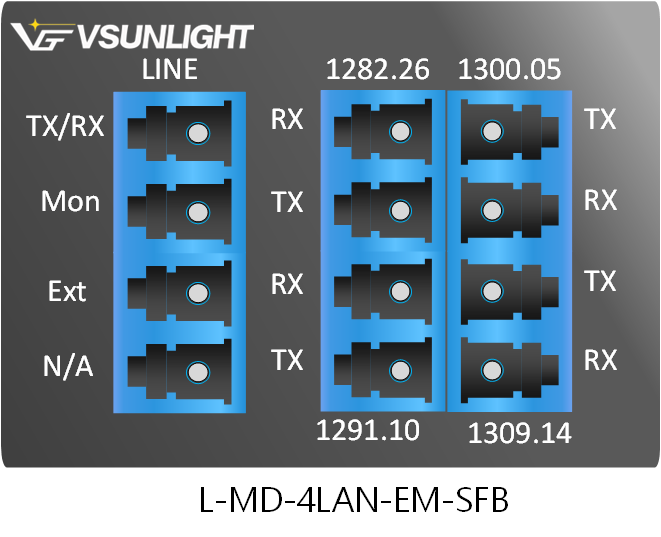

L-MD-4LAN-EM-SFx icons and front plates
| RDERING CODE | LANWDM CHANNELS |
| H-MD-4LAN-EM-SFA | 1277.89nm 1286.66nm 1295.56nm 1304.58nm |
| H-MD-4LAN-EM-SFB | 1282.26nm 1291.10nm 1300.05nm 1309.14nm |
The L-MD-4LAN-EM-SFx filters have a Monitor port that tap off 1% of the transmitted and received line signal.This provides the ability to monitor the channel power levels via a connected Optical Channel Monitoring (OCM)device or an optical spectrum analyzer.
