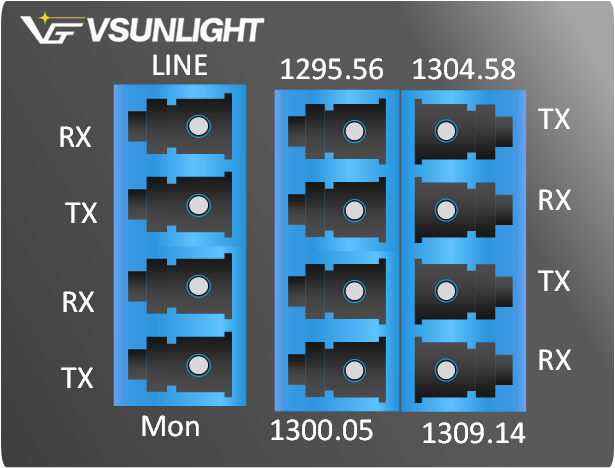

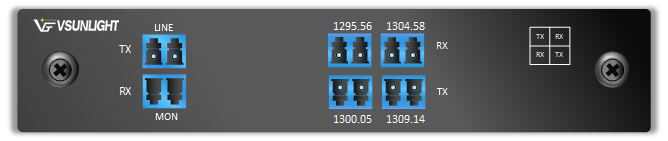

L-MD-4LAN-295-309
The L-MD-4LAN-295-309 filter is a LANWDM Mux/Demux covering four of the LANWDM wavelengths 1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm.These wavelengthsare also part of the CW-WDM MSA, covering O-BAND DWDM technology spaced with 200GHz.Thus, the filter canas an example be used with LANWDM transceivers or as a 4x100G configuration using single lambda 100G O-BAND DWDM transceivers shown in the figure below.

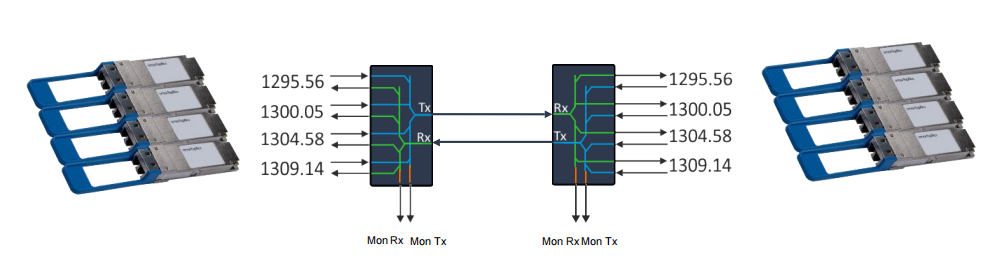

4x100G configuration using 100G O-band DWDM transceivers
| PARAMETER | C-TEMP CONDITIONS |
| Operating Wavelengths | 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm |

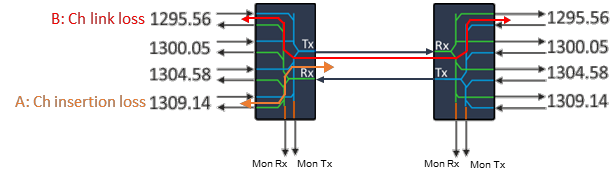

| Insertion loss, per LANWDM channel (A) | Max 1.7 dB |
| Link loss, per LANWDM channel (B) | Max 3.0 dB |
Hot Product
L-MD-4LAN-295-309
The L-MD-4LAN-295-309 filter is a LANWDM Mux/Demux covering four of the LANWDM wavelengths 1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm.These wavelengthsare also part of the CW-WDM MSA, covering O-BAND DWDM technology spaced with 200GHz.Thus, the filter canas an example be used with LANWDM transceivers or as a 4x100G configuration using single lambda 100G O-BAND DWDM transceivers shown in the figure below.
L-MD-4LAN-EM-SFX; LAN WDM Mux/Demux filters
The L-MD-4LAN-EM-SFx filters are two LANWDM-filters for single-fiber configurations

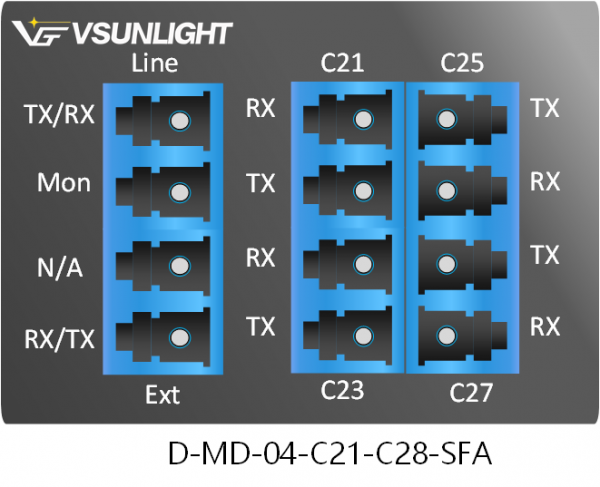

D-MD-04-C21-C28-SFx & D-MD-04-C29-C36-SFx
The D-MD-04-C21-C28-SFx and D-MD-04-C29-C36-SFx filters are two sets of 4 channel DWDM-filters for singlefiber configurations. There are eight DWDM wavelengths used to create and the 4 bi-directional channels, one wavelength in uplink and another in downlink, providing 4 bi-directional channels in total. Consequently, there are two different filters, denoted “A” and “B” where the difference lies in the transmitted and received channels
D-MD-16EM-Cxx-Cyy; 16ch DWDM filter
The D-MD-16EM-Cxx-Cyy filters are two DWDM Mux/DeMux’es having 16 wavelength ports, one extension port and monitor ports for Tx and Rx line interfaces.
