Description

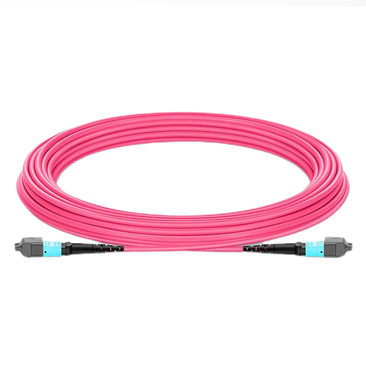

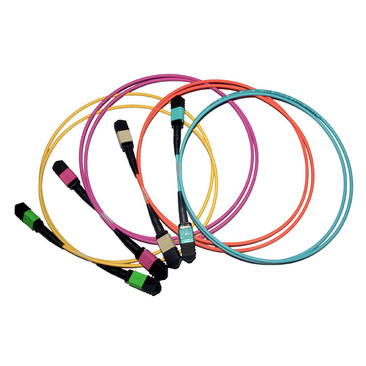

MTP®/MPO trunk cabling connects MTP®/MPO modules together as a permanent link. They facilitate rapid deployment of high-density backbone cabling in data centers and other high-density fiber environments, reducing network installation or reconfiguration time and cost. Its efficient plug-and-play structure greatly reduces the initial installation and routine maintenance costs. Pre-terminated trunk cables can also be used with plug-and-play modules or MTP®/MPO connector panels to achieve multi-level connection. Pre-terminated trunk cable can also be extended by MTP®/MPO panel with the plug-and-play module. They are used to interconnect module cassettes, panels or ruggedized MTP®/MPO fanouts, spanning MDA, HDA and EDA zones.
| Connector A | MPO | Connector B | MPO |
| Patch cord type | Trunk/Breakout patch cord | Fiber number | 2-72 cores |
| MPO IL | Standard loss/low loss | Polishing | SM:APC/MM:PC |

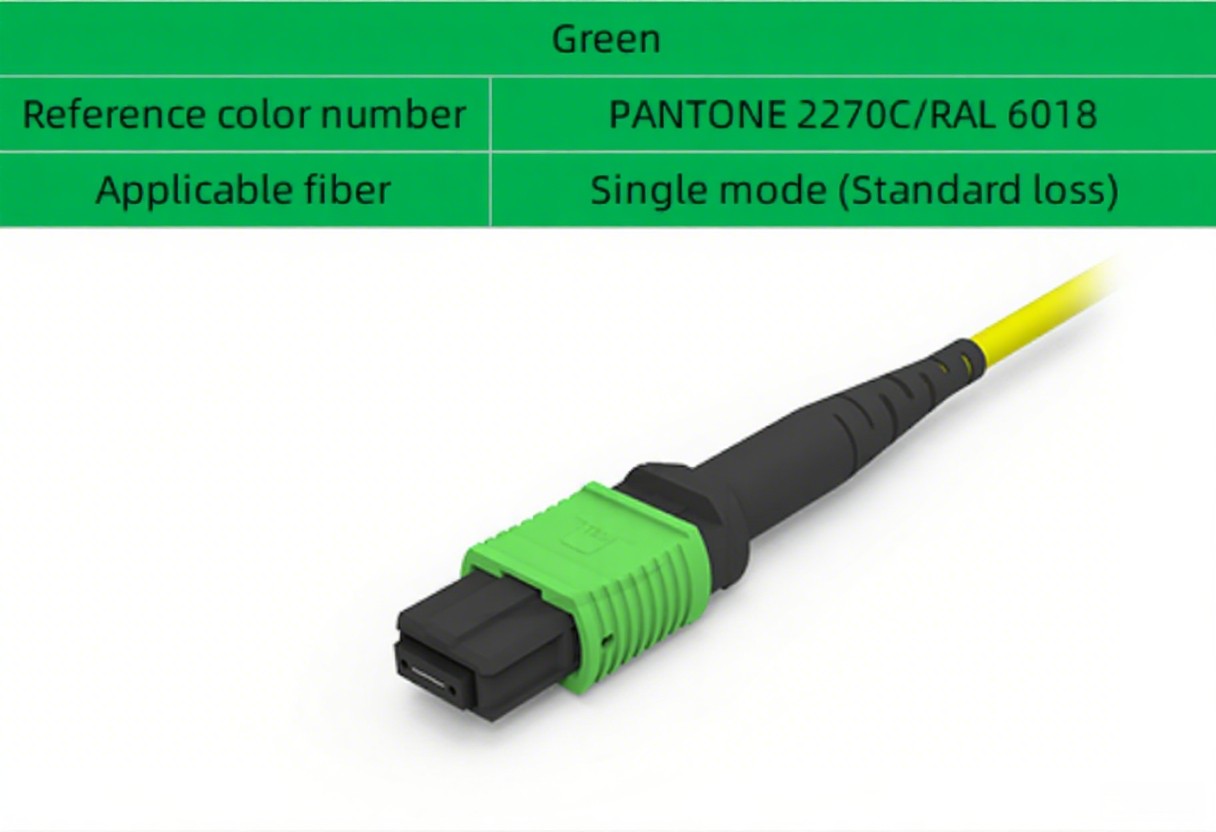

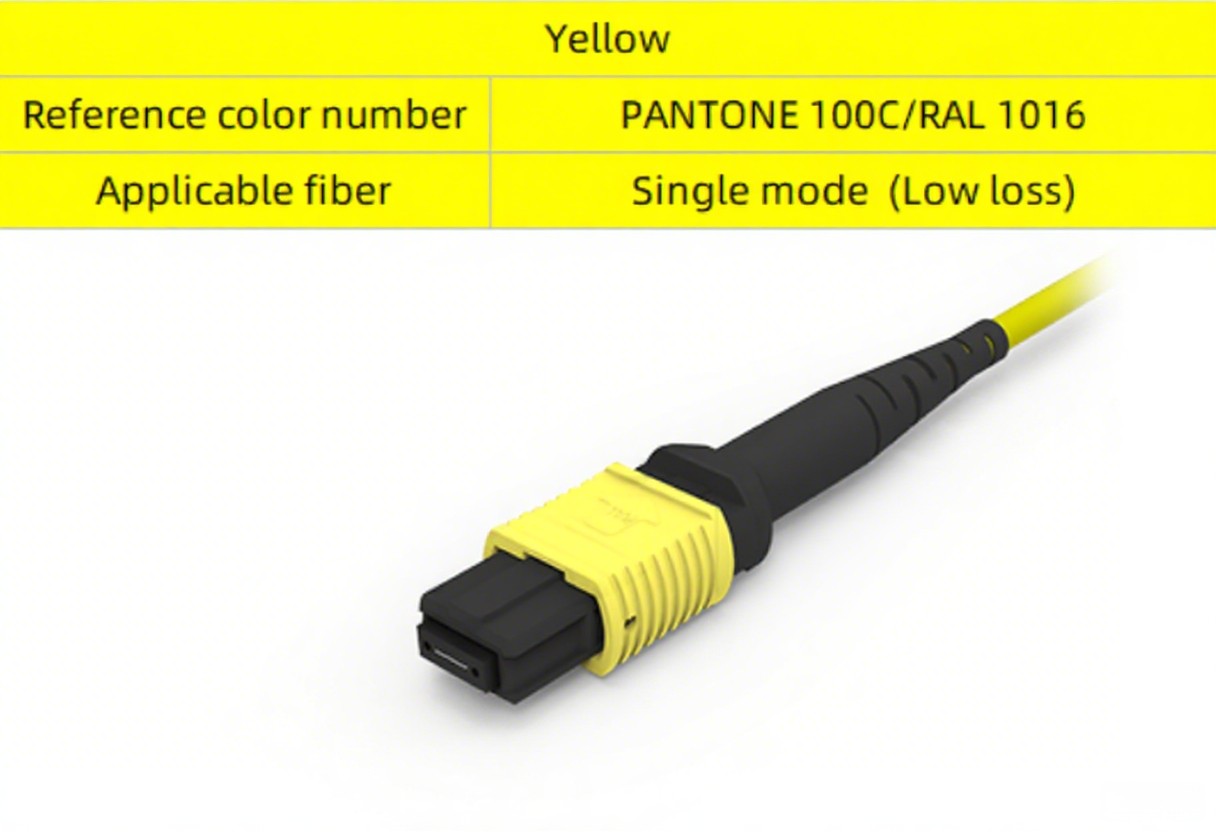

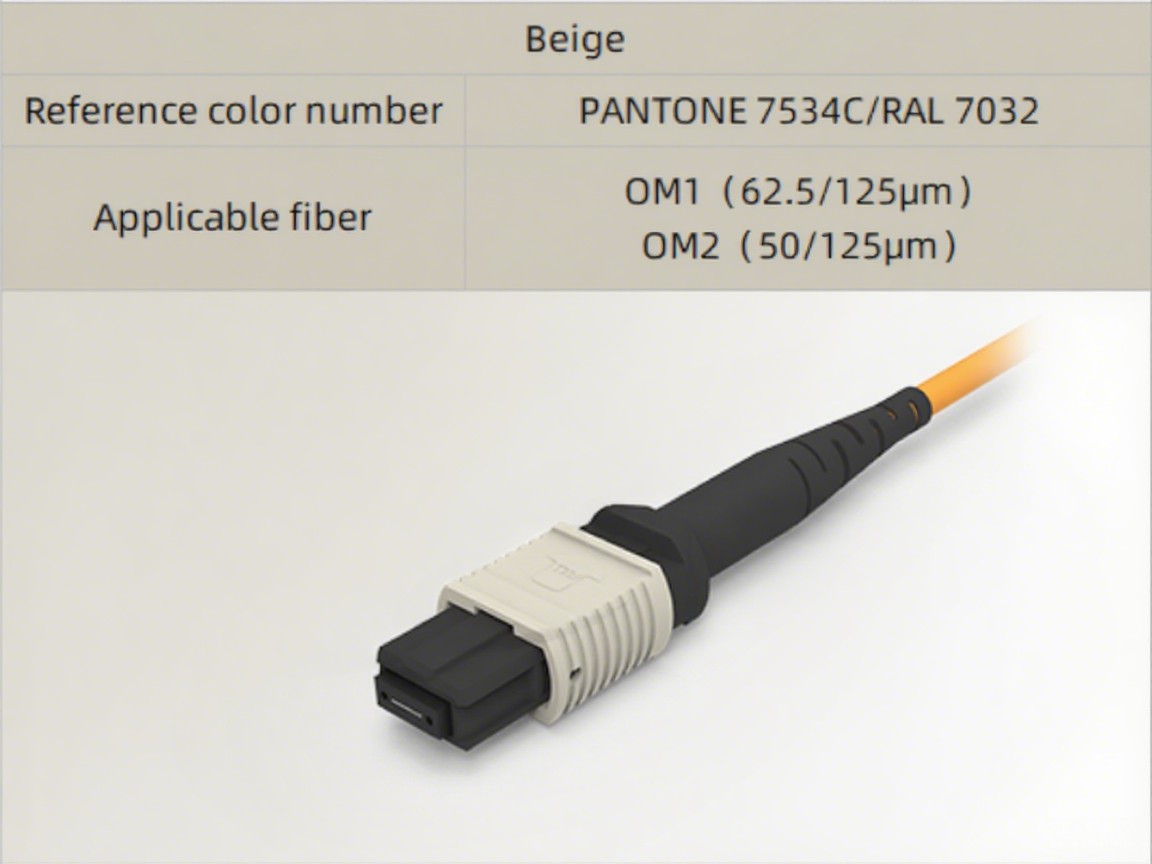

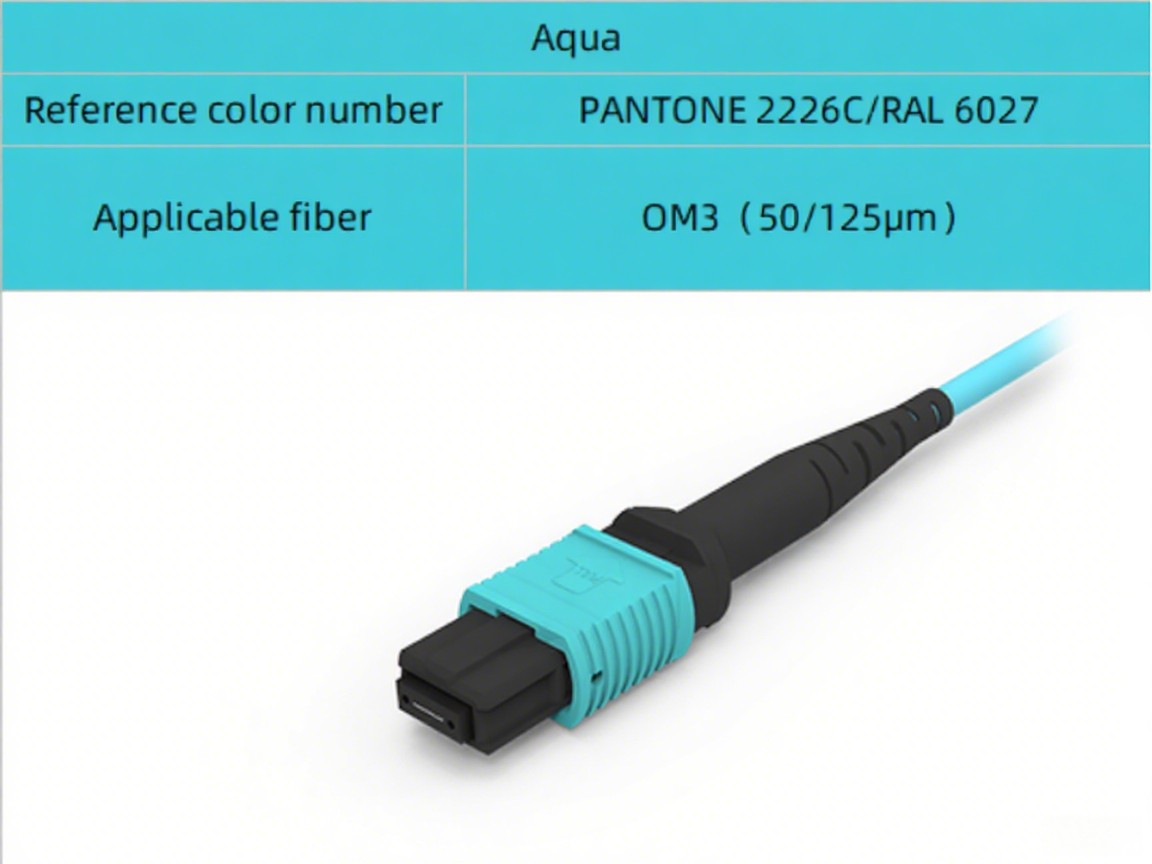

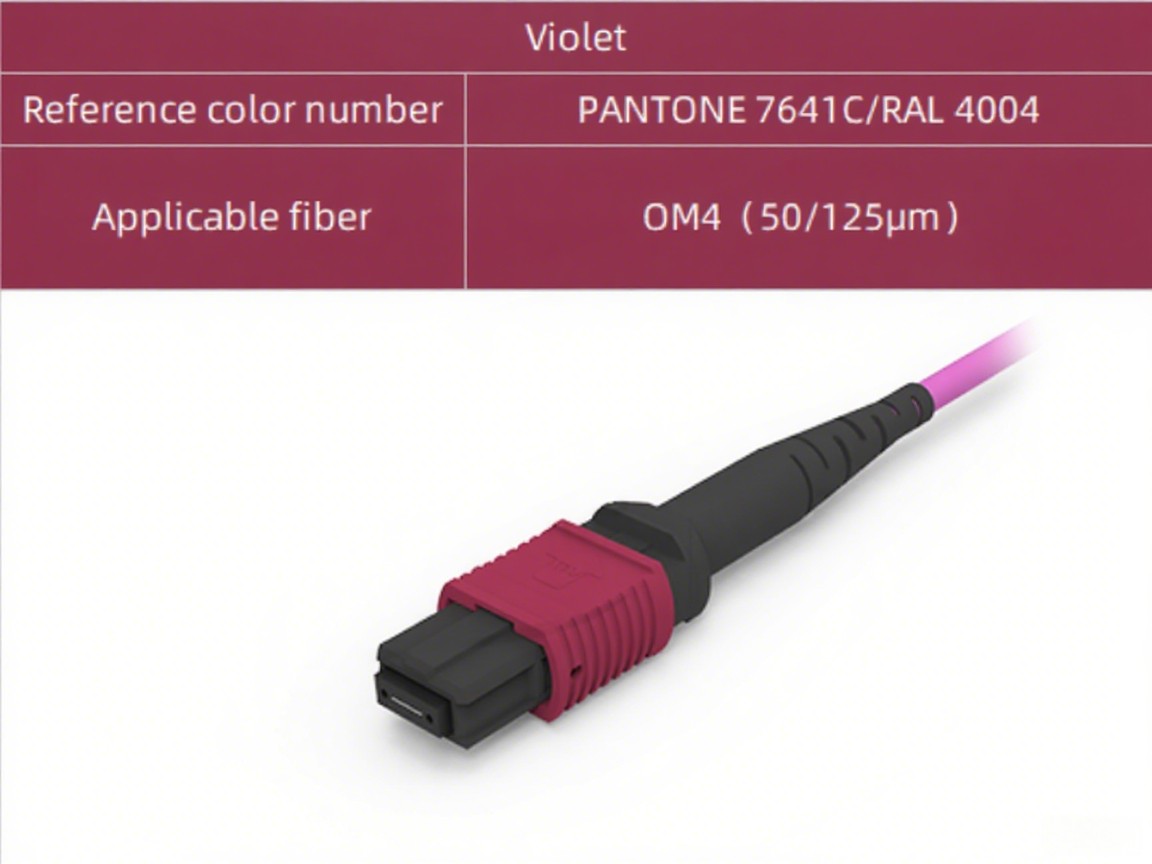

| Connector housing color | Yellow/Green/Beige/Aqua/Violet/Magenta/Lime green | Connector boot type | Round/ribbon/bare fiber |

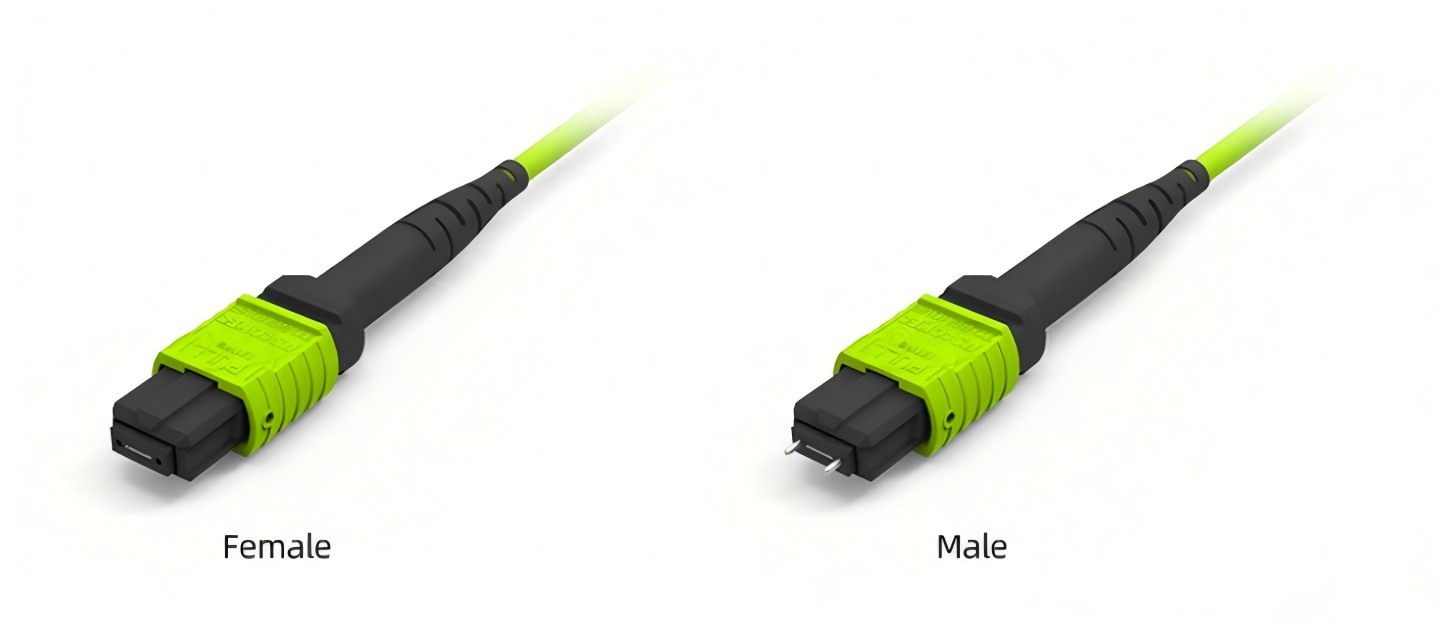

| Connector type | Female/Male | RL | ≥20dB(MM);≥60dB(SM) |
| IL(Typical) | 0.1/0.2dB | IL(Max.value) | 0.35/0.6dB |
| Transmission rate | 40G/100G | Tolerance | +6cm |
| Cable outer diameter | 3.0/3.5/4.5/5.0mm | Cable color | Yellow/Aqua/Violet/Magenta/Lime green |
| Cable material | LSZH/PVC | Flame retardant grade | OFNR/OFNP |
| Fiber brand | Corning/YOFC | Fiber type | G657A1/OM3/OM4/OM5 |
| Working wavelength | 1310/1550(SM);850/1300(MM) | Fiber loss | 0.35dB@1310nm/0.2dB@1550nm/2.4dB@850nm/0.6@1300nm |
| Min.bending radius(Short term) | 10D | Min.bending radius(long term) | 20D |

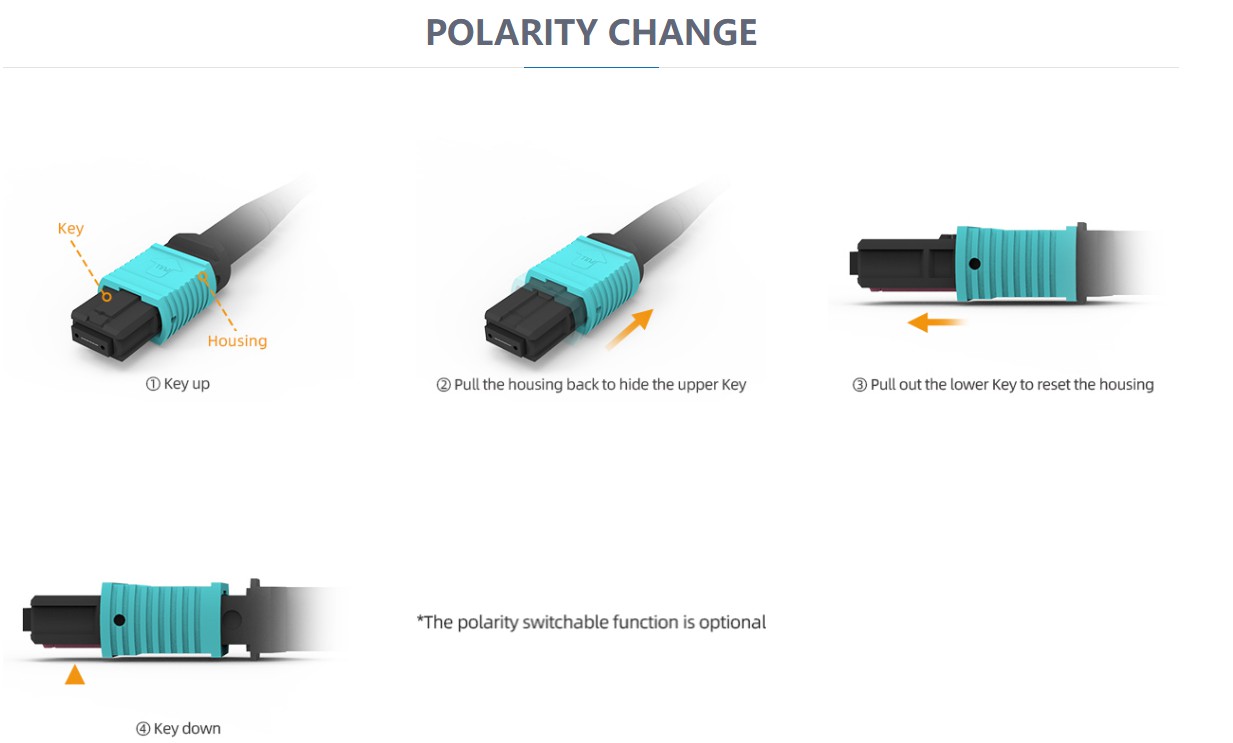

| Polarity | Type A/B/C/others | Durability | ≥500 times |
| Operating temperature | -10 to 70℃（14 to 158 ℉） | Storage Temperature | -40 to 85℃（-40 to 185 ℉） |

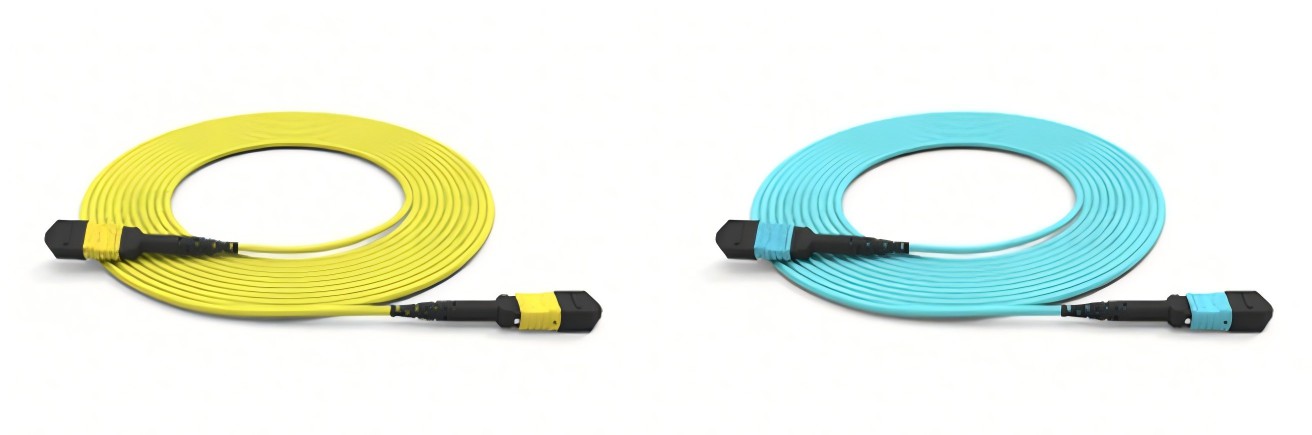

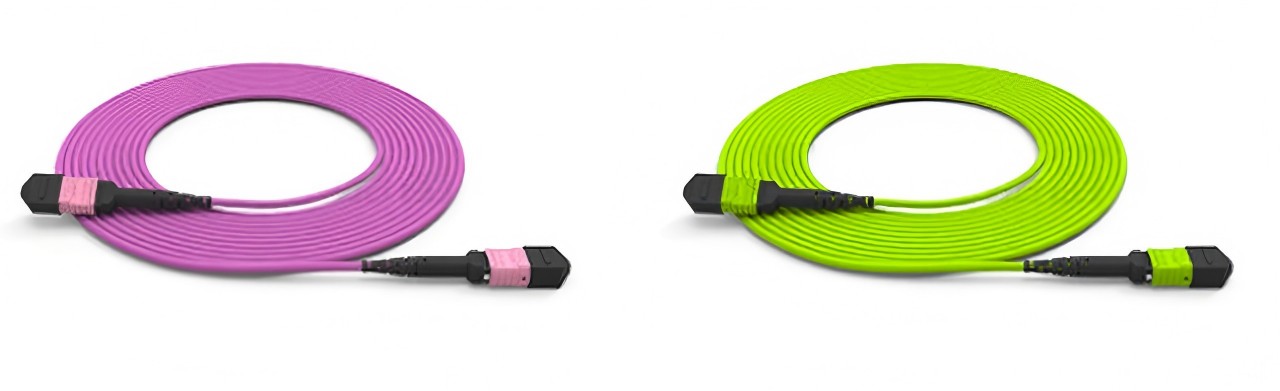

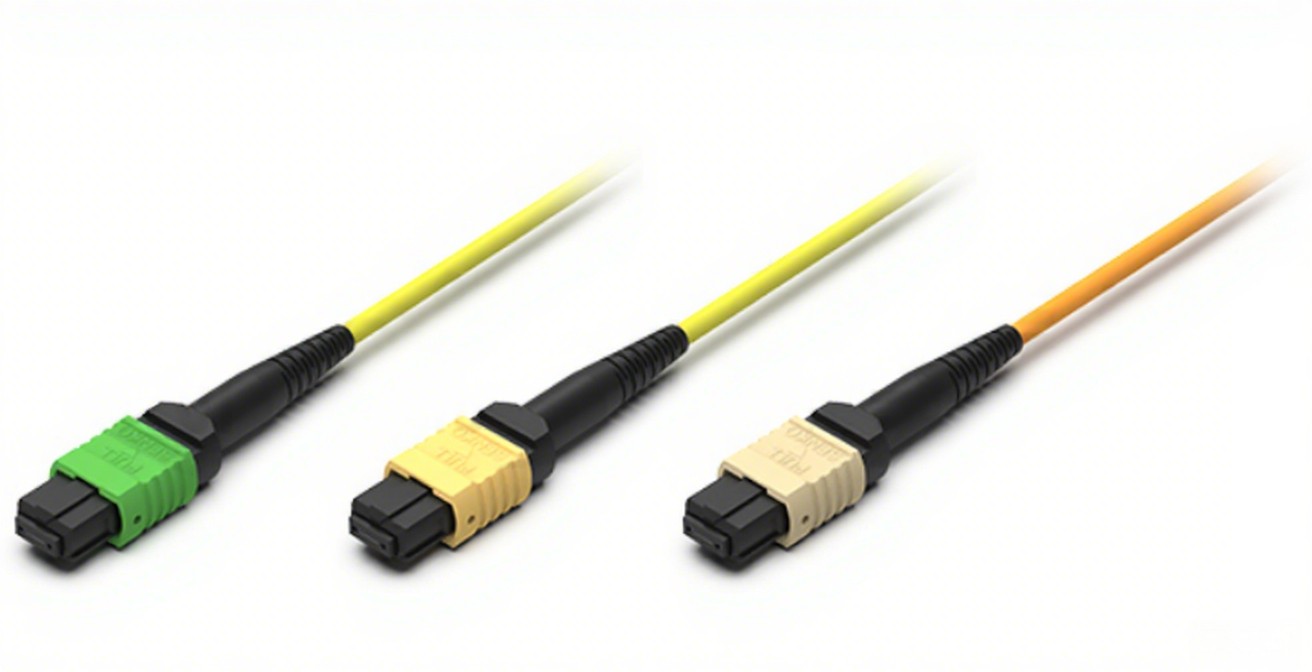

SM Yellow OM3/OM4 Aqua OM4 Violet OM5 Green
single mode |  |  |
Multimode |  |  |
Multimode |  |
PERFORMANCE
| Ferrule type | Insertion loss | Return loss | |
| Typical | Maximum | ||
| SM standard loss | ≤0.20dB | ≤0.75dB | ≥60dB(APC 8°) |
| SM low loss | ≤0.10dB | ≤0.35dB | |
| MM standard loss | ≤0.20dB | ≤0.60dB | ≥20dB |
| MM low loss | ≤0.10dB | ≤0.35dB | |
| Fiber mode | Performance | Fiber count |
| Single mode | Standard loss | 12(1×12) |
| 24(2×12) | ||
| Low loss | 12(1×12) | |
| Multimode | Standard loss | 12(1×12) |
| 12(1×16) | ||
| 24(2×12) | ||
| 32(2×16) | ||
| Low loss | 12(1×12) | |
| 24(2×12) |
Hot Product
MTP®/MPO-24 APC to 3 x MTP®/MPO-8 APC
MTP®/MPO Breakout Cable, MTP®MPO-24 APC (Female) to 3 x MTP®/MPO-8 APC (Female), 24 Fibers, Single Mode (OS2), Plenum (OFNP), 0.35dB Max, Type B, Yellow

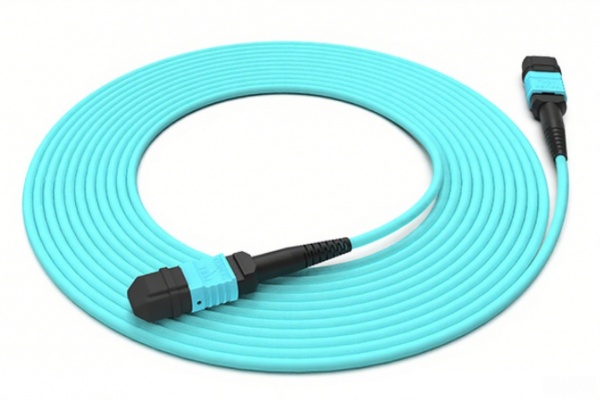

SENKO MPO Connector
