Description

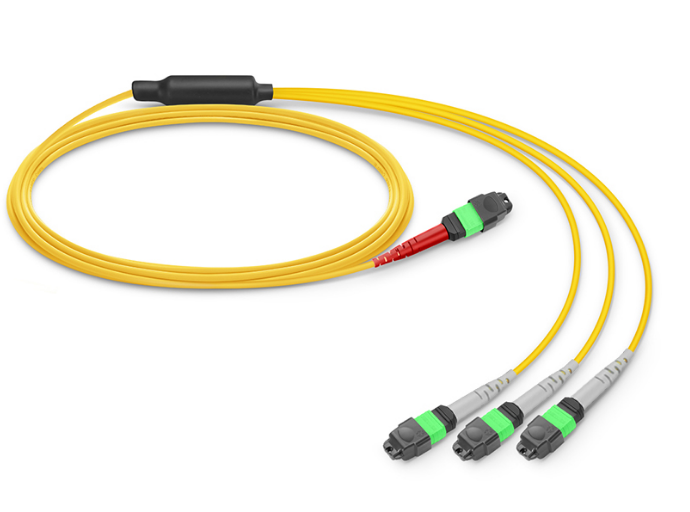

MTP® /MPOBreakout Cable, MTP®/MPO-24 APC to 3 x MTP®/MPO-8 APC,
24 Fibers, Single Mode (OS2)
MTP®/MPO Breakout cable is designed to provide a more flexible multi-fiber cabling system based on MTP®/MPO products. Unlike MTP® harness cable, MTP®/MPO Breakout cables are terminated with MTP® connectors on both ends and can provide more possibilities for the existing 24-fiber cabling system.
The 40/100G MTP®/MPO Breakout cables eliminate the wasted fibers in current 40G transmission and upcoming 100G transmission. Compared to purchase and install separate Breakout cassettes, using MTP®/MPO Breakout cables is a more cost-effective and lower-loss option.
Specifications Fiber Connector MTP®/MPO Gender Female Fiber Mode OS2 9/125μm Wavelength 1310/1550nm Glass Fiber Corning/YOFC SMF-28® Polish Type APC to APC Insertion Loss 0.35dB Max (0.15dB Typ.) Return Los ≥60dB Attenuation at 1310nm ≤0.32dB/km Attenuation at 1550nm ≤0.18dB/km Cable Jacket Plenum (OFNP) Minimum Bend Radius 10mm Cable Outside Diameter (OD) 3.0mm Breakout Length 0.5m Installation Tensile Load 66N Tensile Strength 80/240N (Long/Short Term) Operating Temperature -10 to 60°C (14 to 140℉) Storage Temperature -10 to 70°C (14 to 158℉) |

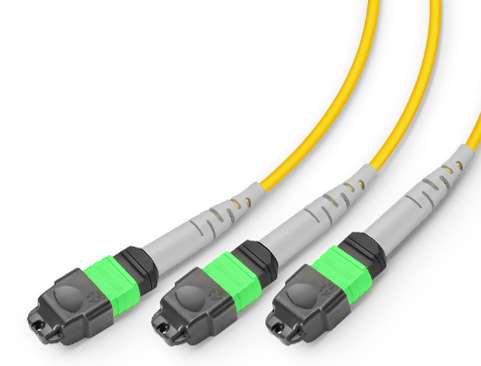

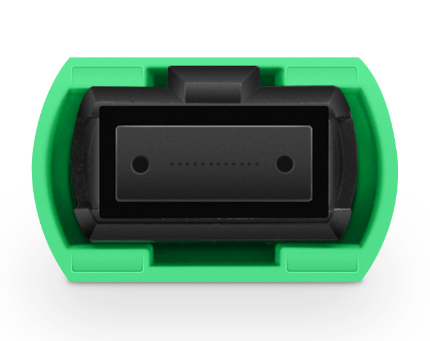

| MTP® Connector delivers stable signals and achieves flexible system design | The APC polish provides a minimal reflection of the optical signal for optimal signal integrity. |
Comprehensive performance testing system ensures more secure operation and keeps more stable and reliable data connection. 3D interferometer provides verification of MTP®/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards. Clean optical connectors are paramount in providing a reliable, high-performance fiber optic infrastructure.
Hot Product
MTP®/MPO harness cables-Fanout kit -2.0/3.0mm breakout
When used in conjunction with trunk jumpers, MTP®/MPO branch jumpers enable seamless transition of multimode systems in data centers during upgrades of data transmission rates. Mainly used for internal cabinet connections, this fiber optic jumper serves as a cost-effective alternative, eliminating time-consuming on-site termination work. It is suitable for high-density fiber cabling in data centers with limited space and high requirements for cable management.

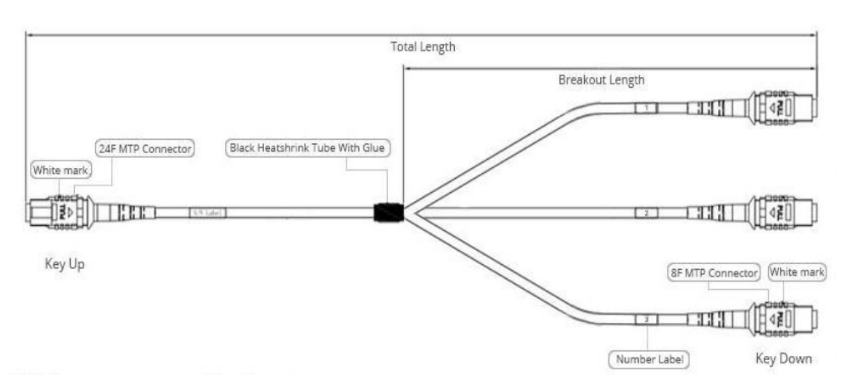

MTP®/MPO-24 APC to 3 x MTP®/MPO-8 APC
MTP®/MPO Breakout Cable, MTP®MPO-24 APC (Female) to 3 x MTP®/MPO-8 APC (Female), 24 Fibers, Single Mode (OS2), Plenum (OFNP), 0.35dB Max, Type B, Yellow
MTP®/MPO Breakout Cable, MTP®-12 APC (Female) to 2 x MTP®-4 APC (Female)
MTP® /MPO Breakout cable is designed to provide a more flexible multi-fiber cabling system based on MTP®/MPO products. Unlike MTP® harness cable, MTP®/MPO Breakout cables are terminated with MTP® connectors on both ends and can provide more possibilities for the existing 8-fiber cabling system.
MTP®/MPO Trunk Cable, MTP®/MPO-12 UPC (Female) to MTP®/MPO-12 UPC (Female), 48 Fibers, Multimode (OM3)
MTP®/MPO Trunk Cable, MTP®/MPO-12 UPC (Female) to MTP®/MPO-12 UPC (Female), 48 Fibers, Multimode (OM3)
