Description

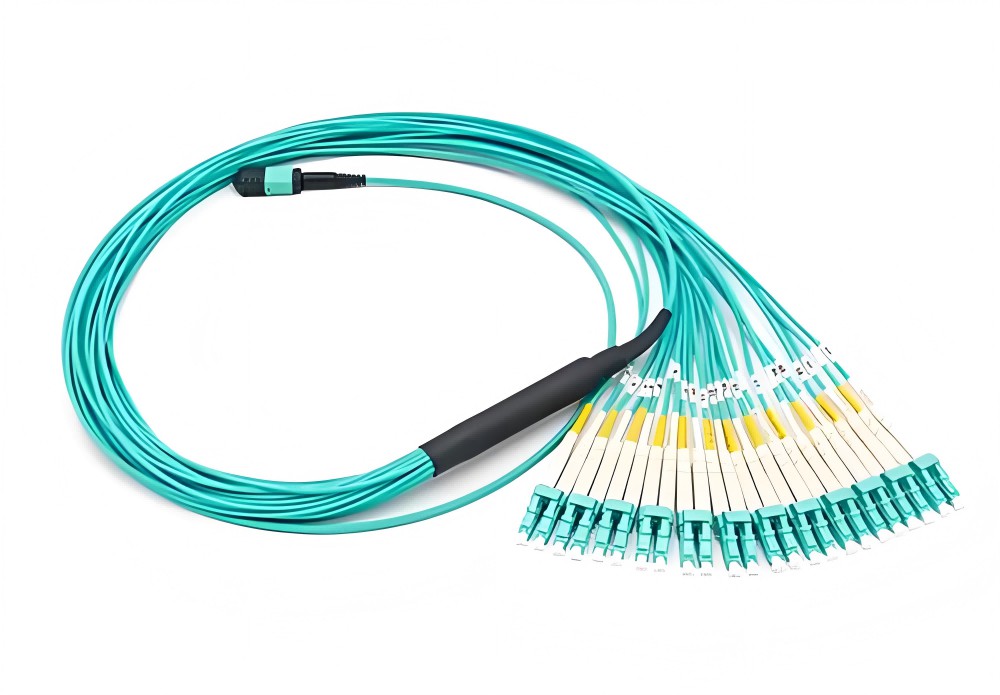

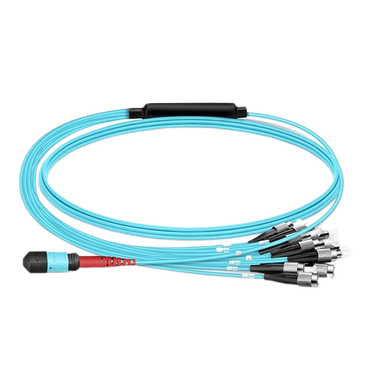

MTP®/MPO harness cables-Fanout kit -2.0/3.0mm breakout
When used in conjunction with trunk jumpers, MTP® /MPO branch jumpers enable seamless transition of multimode systems in data centers during upgrades of data transmission rates. Mainly used for internal cabinet connections, this fiber optic jumper serves as a cost-effective alternative, eliminating time-consuming on-site termination work. It is suitable for high-density fiber cabling in data centers with limited space and high requirements for cable management.
PRODUCT PARAMETERS
| Performance Level | Standard | Elite | ||||
| Connector | Mode | Endface | IL(max)(dB) | RL(min)(dB) | IL(max)(dB) | RL(min)(dB) |
| MPO/MTP | SM | 12F/APC | ≤0.70 | ≥60 | ≤0.35 | ≥60 |
| 24F/APC | ≤0.70 | ≥60 | ≤0.35 | ≥60 | ||
| 48F/APC | ≤0.70 | ≥60 | ||||
| MM | 12F/PC | ≤0.70 | ≥20 | ≤0.35 | ≥20 | |
| 24F/PC | ≤0.70 | ≥20 | ≤0.35 | ≥20 | ||
| 48F/PC | ≤0.70 | ≥20 | ||||
| LC/SC/FC/ST | SM | APC | ≤0.70 | ≥60 | ≤0.10 | ≥60 |
| UPC | ≤0.70 | ≥50 | ≤0.10 | ≥50 | ||
| MM | PC | ≤0.70 | ≥30 | ≤0.10 | ≥30 | |
Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.
|
|
|

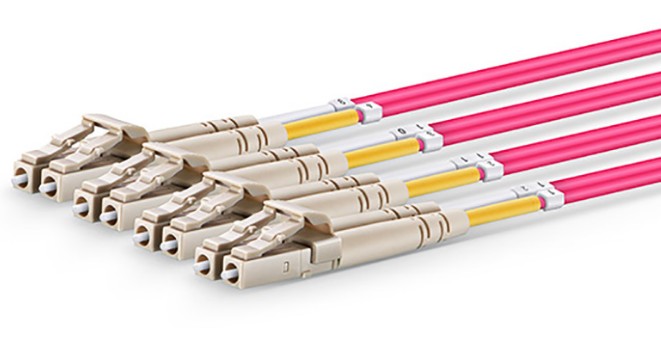

| US Conec MTP® Connector with Optimal 0.35dB Low IL | Corning ClearCurve® Multimode Fiber | LC UPC Duplex |
Fiber count
4 fibers | 8 fibers | 12 fibers | 24 fibers | 48 fibers | |

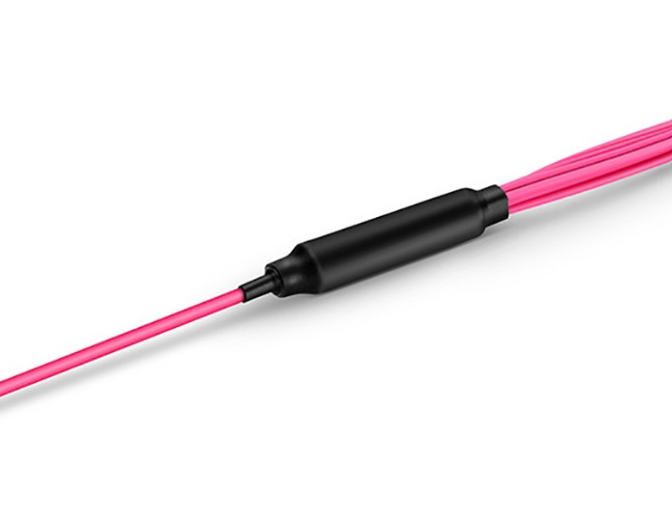

Mini round cable / Ribbon cable-Fanout kit -2.0/3/0mm breakout |  |
|
|
|
|
Fiber Type
|  |
|  |

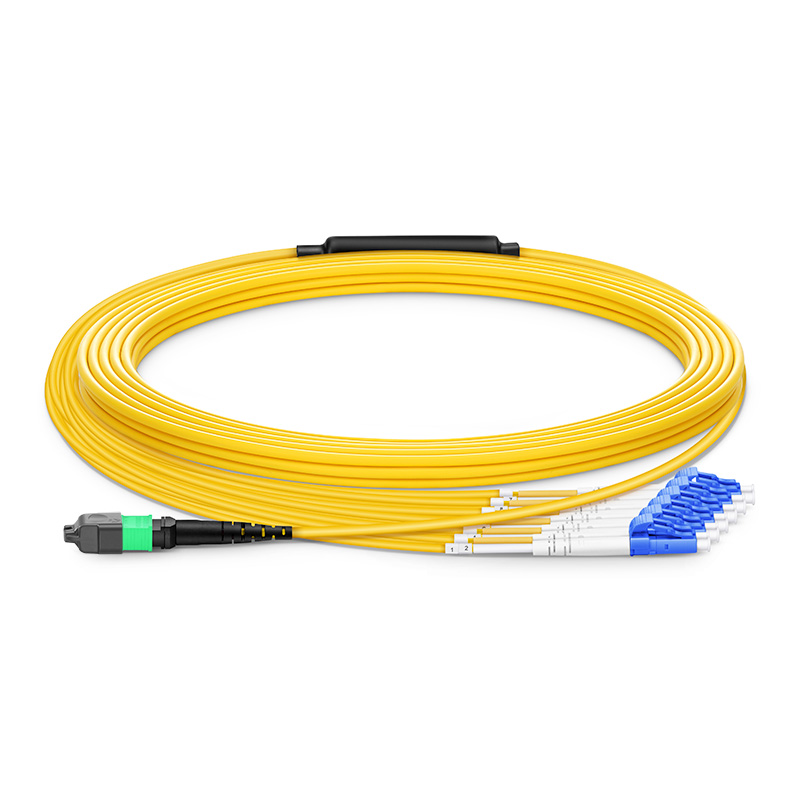

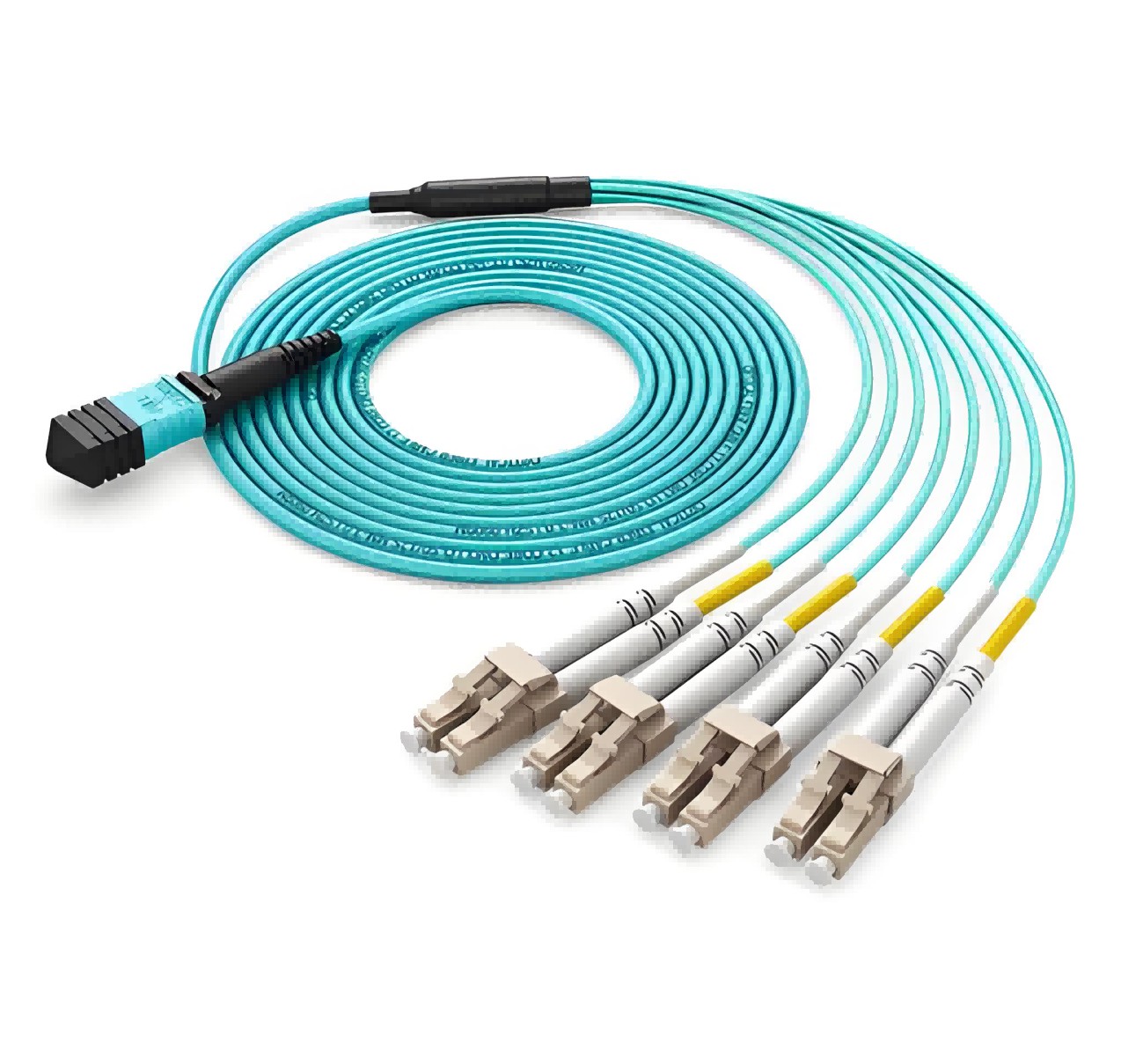

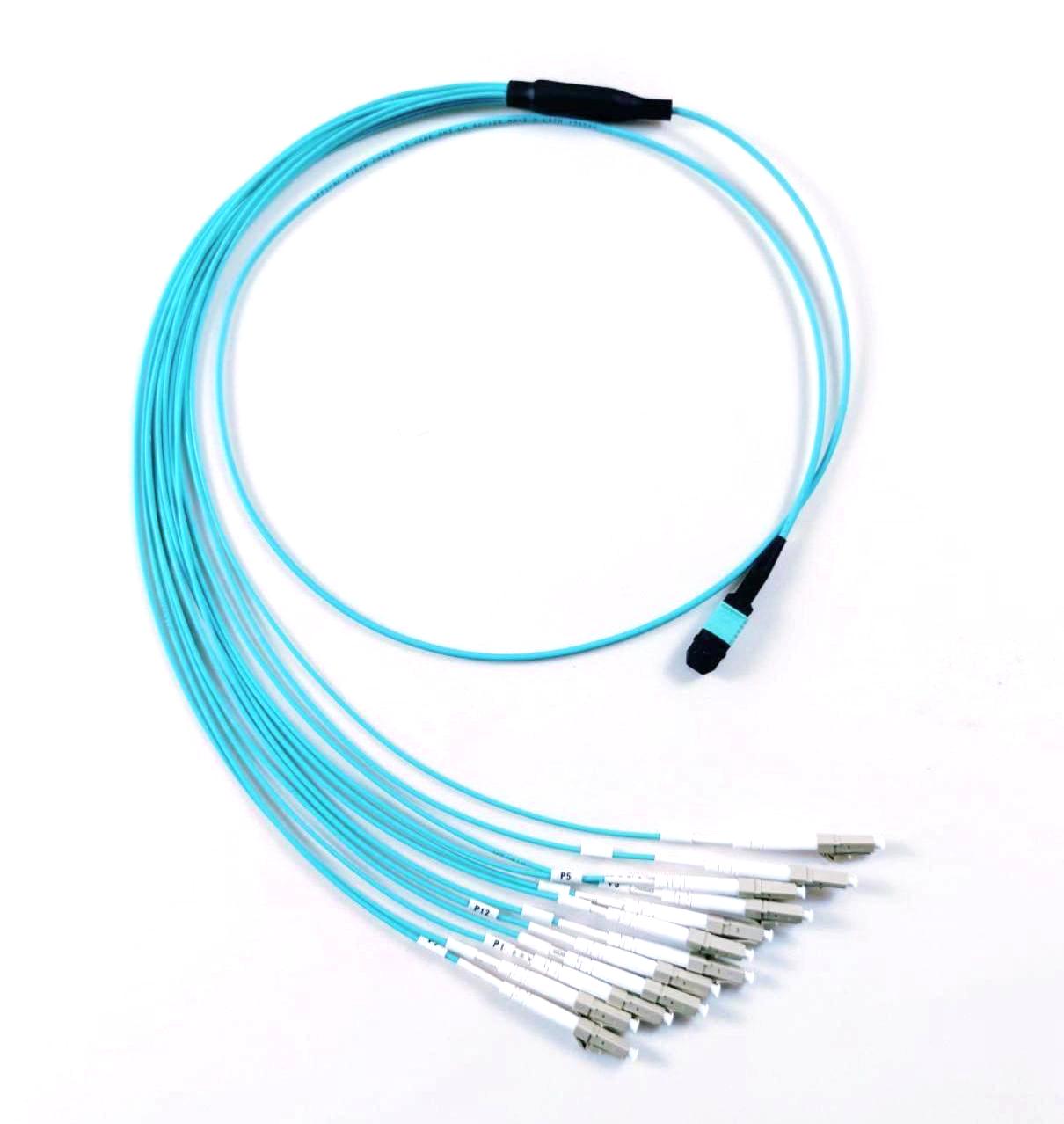

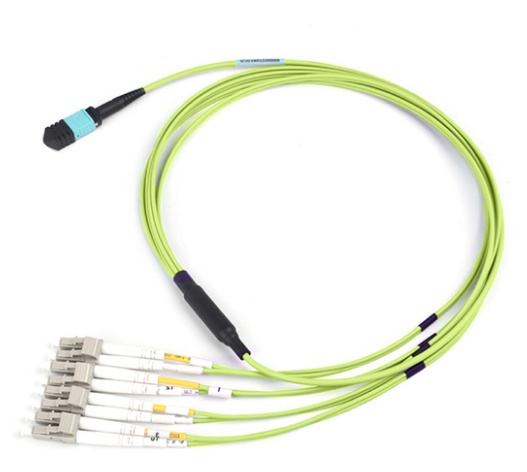

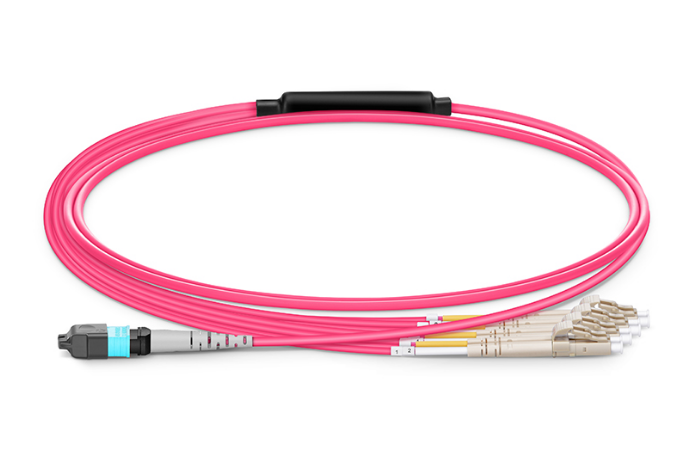

| SM(G652D/ G657A1/ G657A2/ G657B3) | OM3(With aqua sheath) | OM4(With aqua,violet or pink sheath) | OM5(With lime green sheath) |

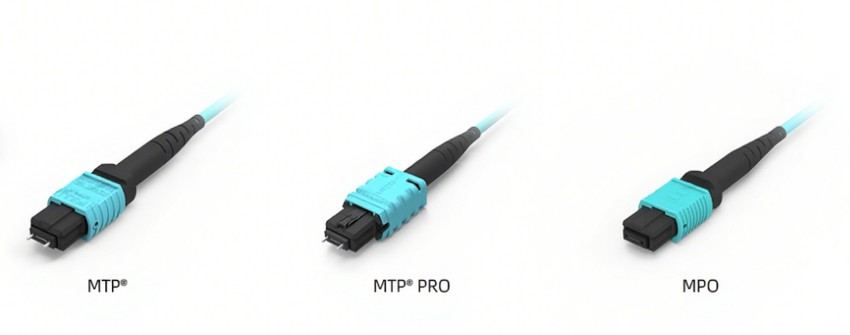

Connector Option

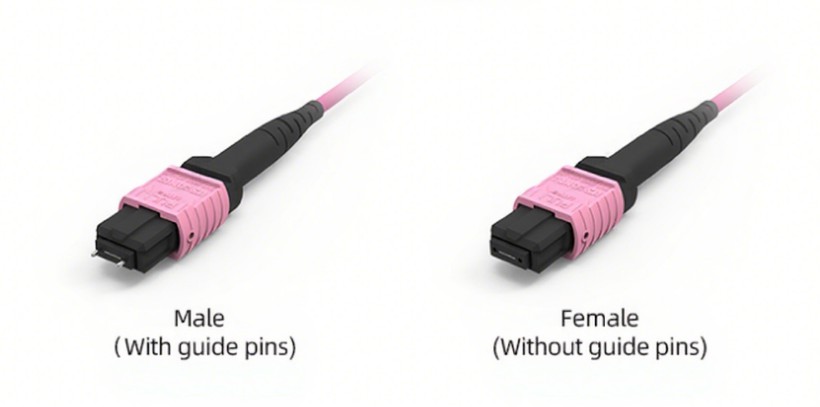

Male / Female

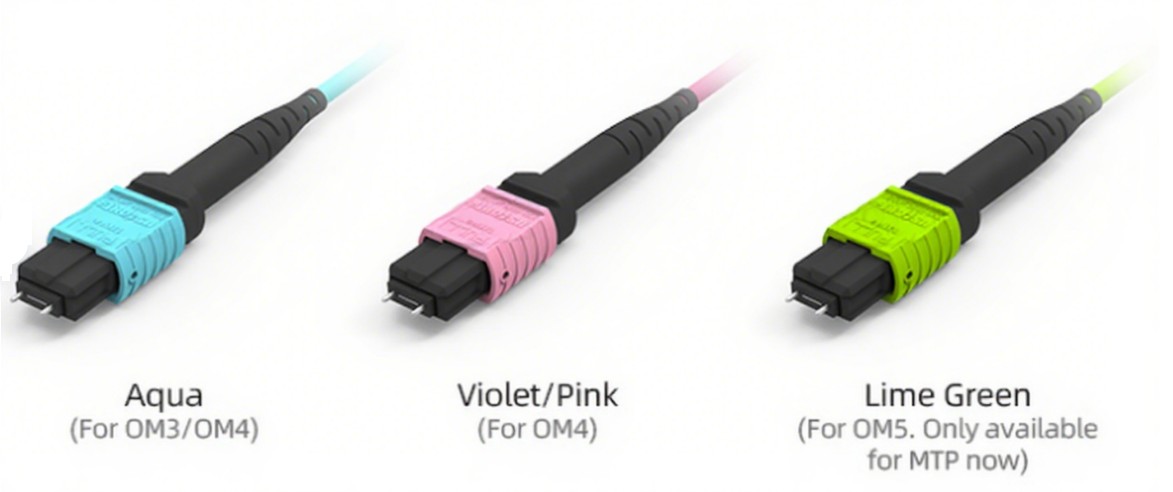

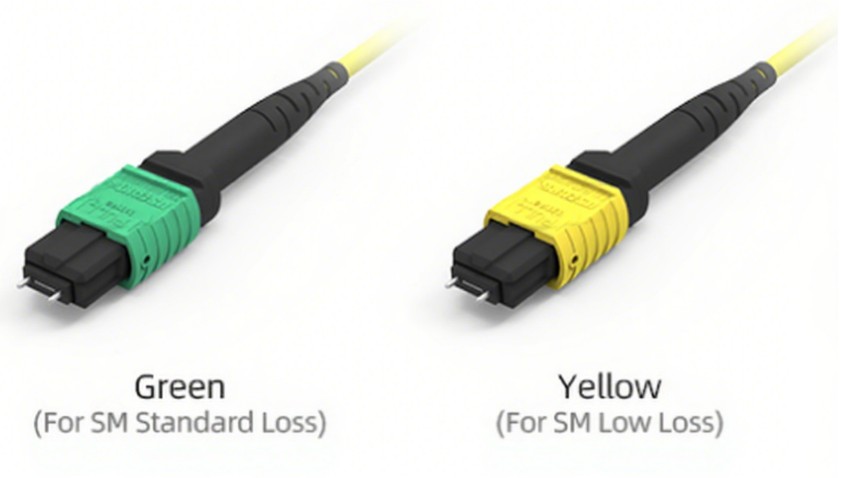

connector housing

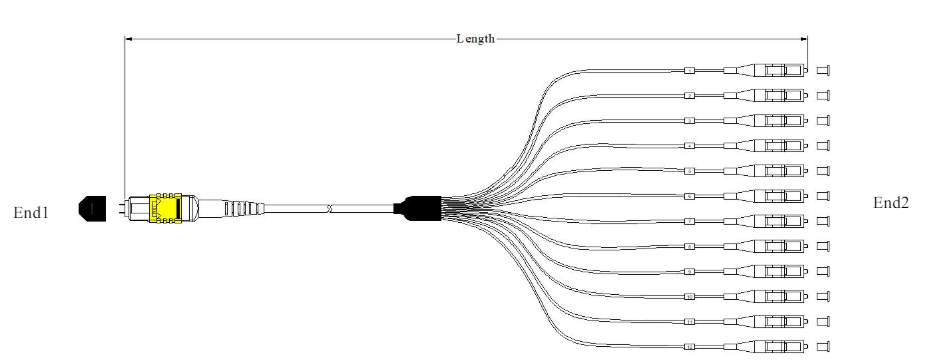

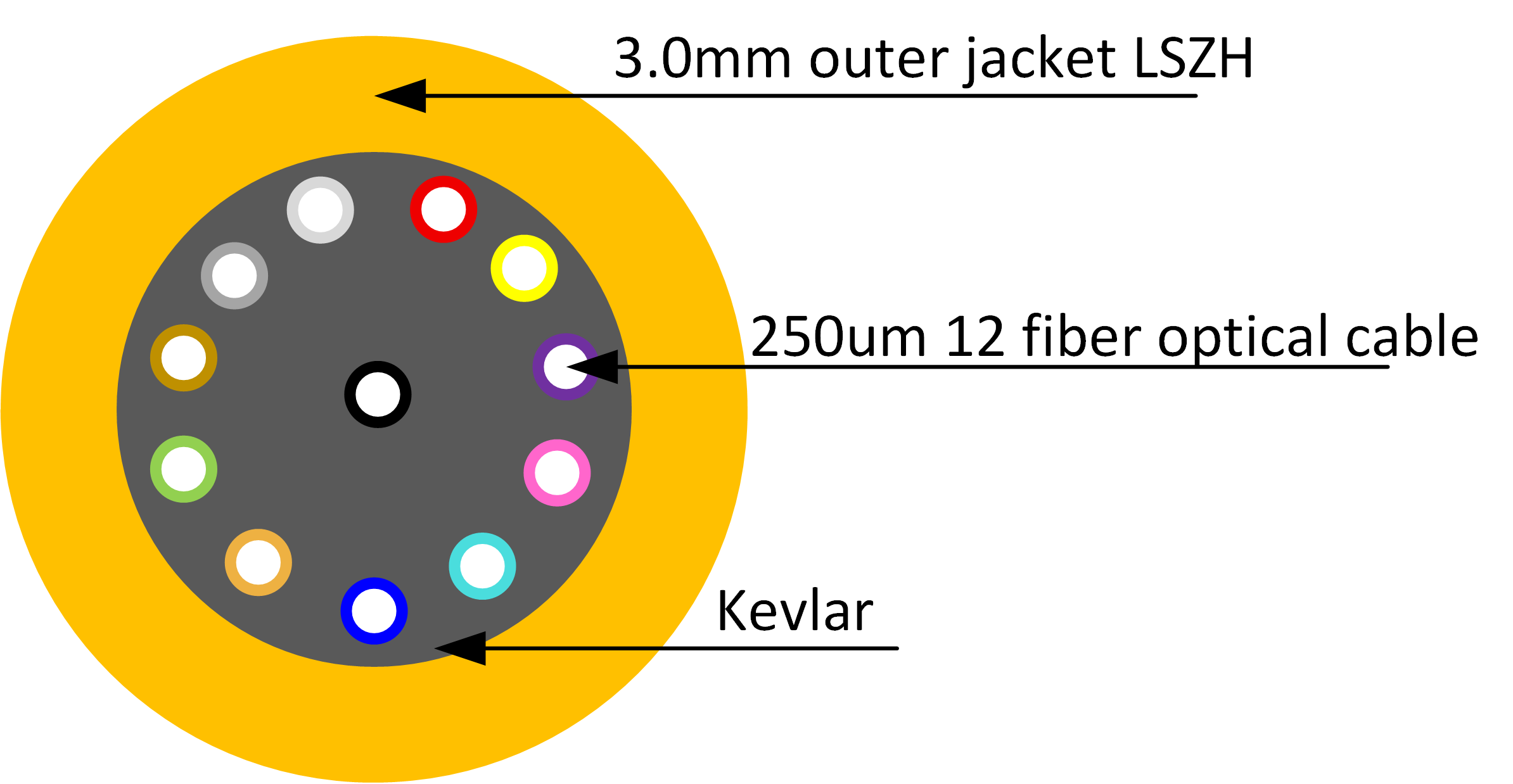

Breakout length Cable Structure
Hot Product
2 x MTP®/MPO-12 UPC to 3 x MTP®/MPO-8 UPC, 24 Fibers,
MTP® /MPO Breakout Cable, 2 x MTP®/MPO -12 UPC (Male) to 3 x MTP®/MPO-8 UPC (Female), 24 Fibers, Multimode (OM4), Plenum (OFNP), 0.35dB Max
MPO/MTP -0.9mm breakout
MPO/MTP® Hydra cable assemblies is deployed inside plug and play cassette modules. It is used for multi-fiber to single-fiber splitting out interconnects.
MTP®/MPO harness cables-Fanout kit-0.9mm Breakout

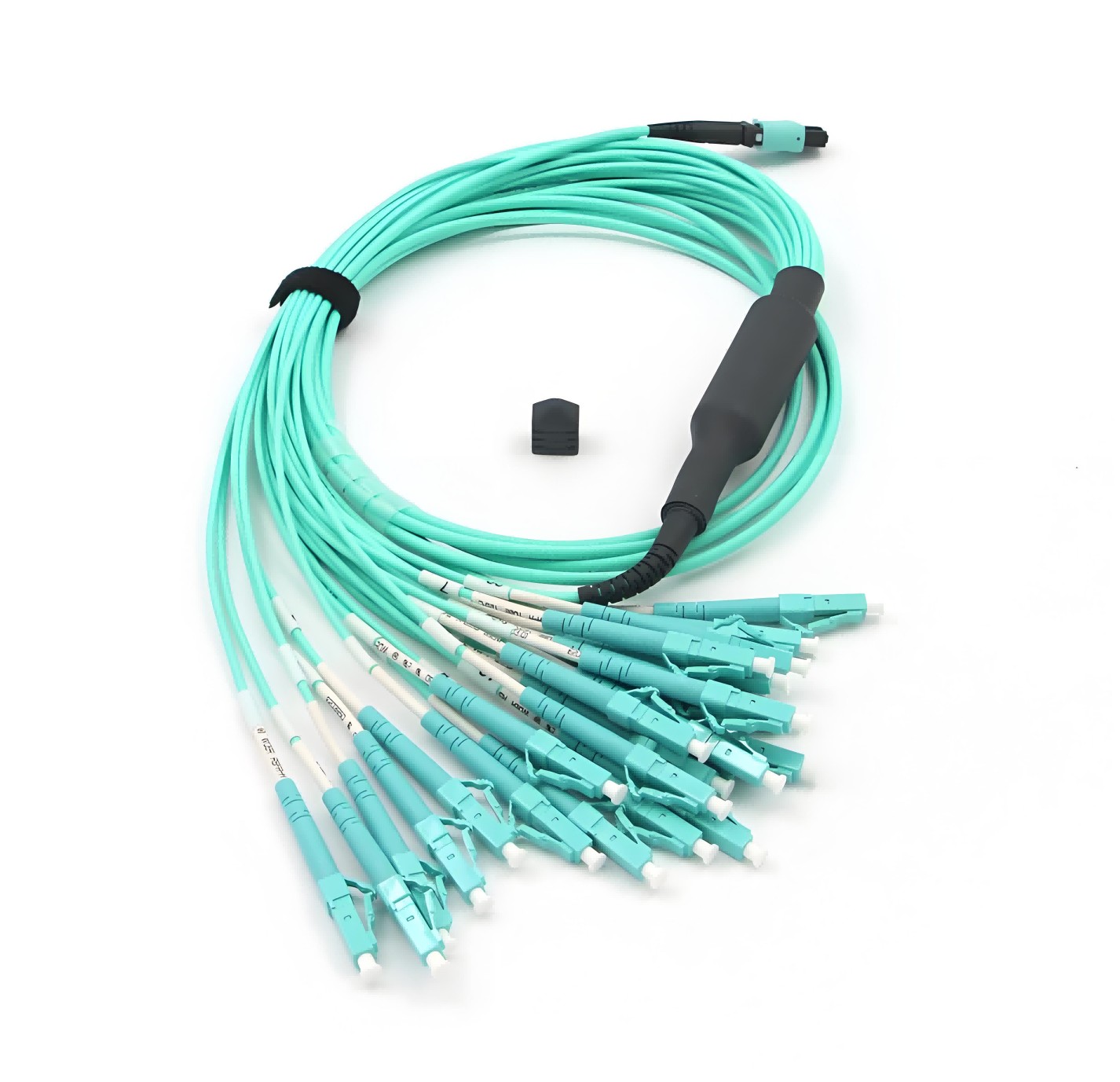

MTP®/MPO harness cables are a kind of MTP®/MPO fanout harness cable or breakout cable assembly with one MTP®/MPO connector on one end and multiple single-fiber connectors (LC, SC, FC, etc.) on the other end, designed for data distribution and routing to patch panels. It is used to transition from trunk backbone assemblies to fiber rack systems. The MTP® harness cable is fully configurable, available with a variety of cable and connector combinations. For the hardware and equipment in the same ca
MTP®/MPO harness cables-Fanout kit -2.0/3.0mm breakout
When used in conjunction with trunk jumpers, MTP®/MPO branch jumpers enable seamless transition of multimode systems in data centers during upgrades of data transmission rates. Mainly used for internal cabinet connections, this fiber optic jumper serves as a cost-effective alternative, eliminating time-consuming on-site termination work. It is suitable for high-density fiber cabling in data centers with limited space and high requirements for cable management.
