Description

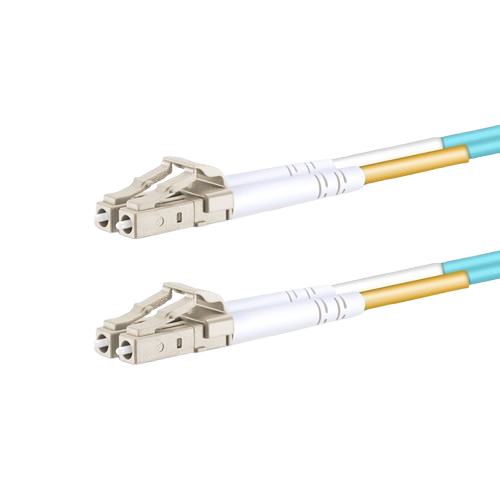

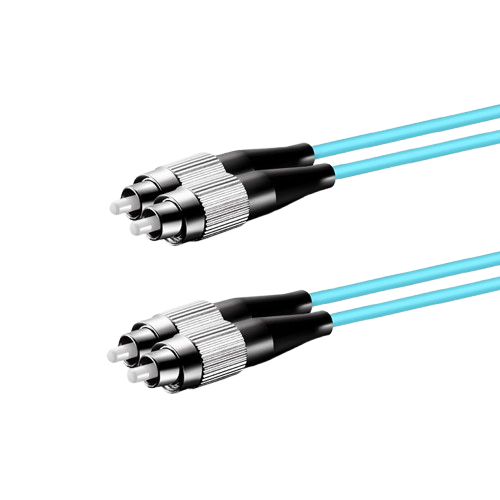

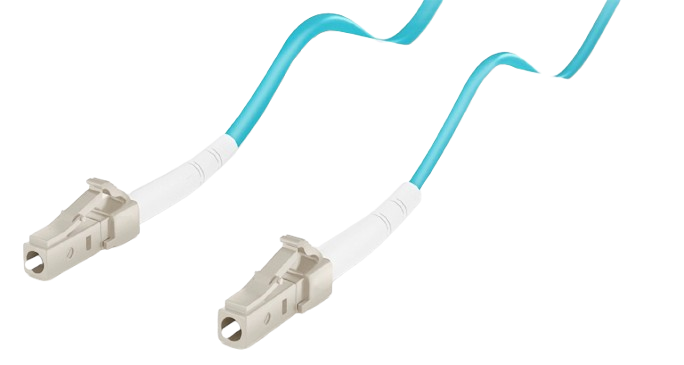

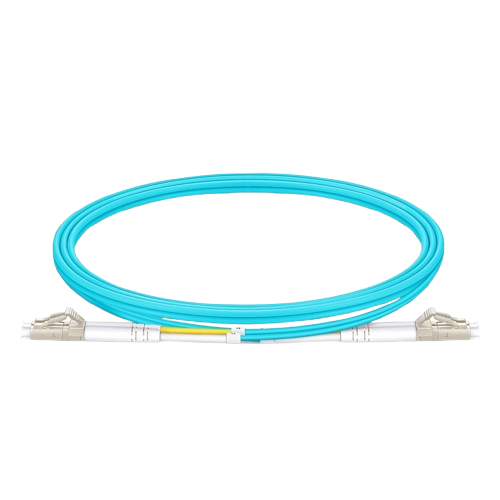

Multimode LC/SC/FC/ST/E2000 Duplex Fiber Patch Cable
Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It is best suited for long distance application and can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
Specifications
Connector Type LC/SC/ST/FC/ E2000 Polish Type APC/UPC Fiber Mode OM3/OM4 50/125μm Wavelength 850/1300nm Fiber Grade Bend Insensitive Minimum Bend Radius 7.5mm Flame Rating Riser (OFNR)/LSZH/Plenum (OFNP) Cable Outside Diameter (OD) 1.2/1.6/2.0/3.0mm Fiber Count 2 Fibers Polarity A (Tx) to B (Rx)/A (Tx) to A (Rx) Insertion Loss ≤0.3dB Return Loss ≥30dB Attenuation at 850nm 3.5dB/km Attenuation at 1300nm 1.5dB/km |

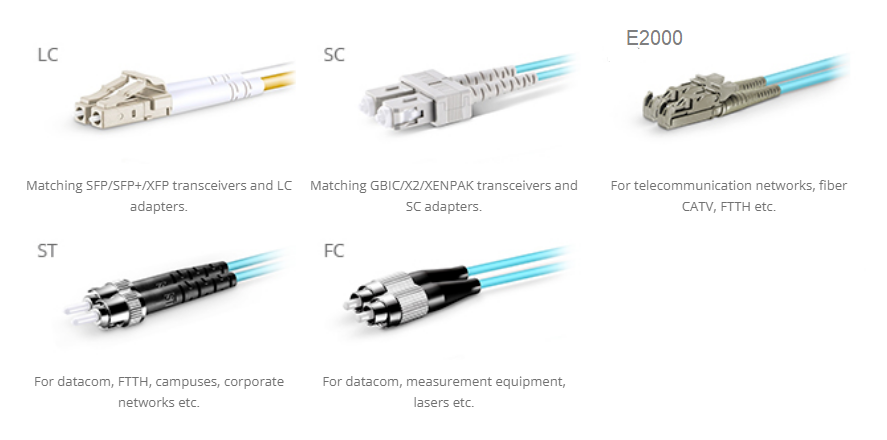

Five Connectors Support Custom-tailored Installations
Two Polish Types for Various Signal Sebsitivity Demands

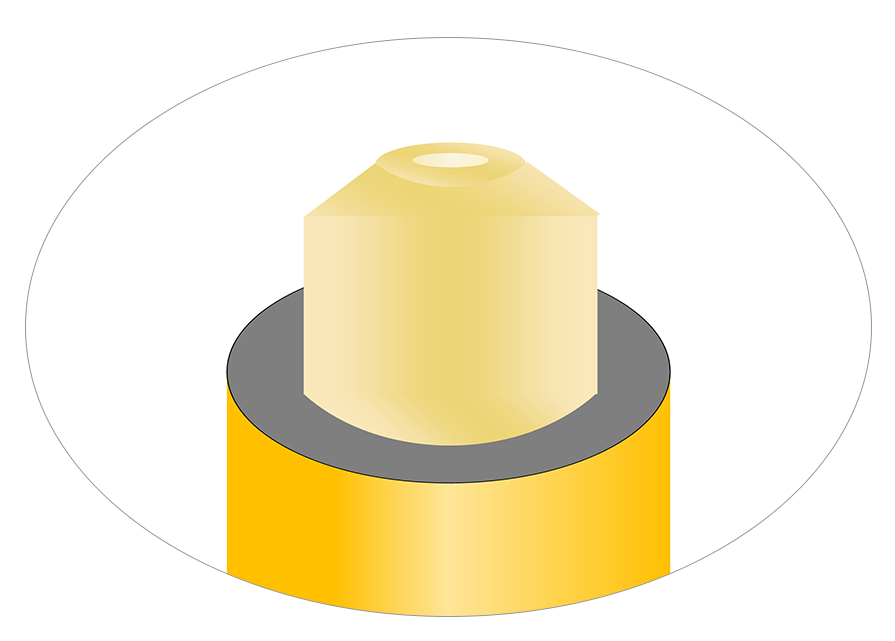

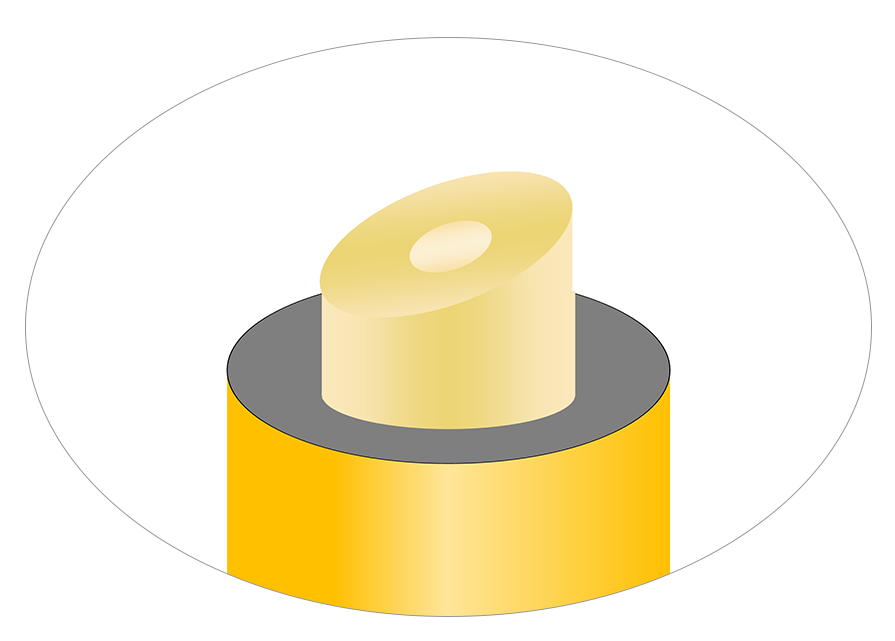

The fiber endface of APC is polished at an 8° angle and UPC is polished with no angle
UPC is mainly for TV,telephony and data systems. APC is mainly used for FTTX, PON and other WDM systems.
Two Diameters to Meet Different Wiring Needs
2.0mm and 3.0mm cable diameters mainly used for indoor installation and cabling.
Hot Product
Multimode LC/SC/FC/ST/E2000 Duplex Fiber Patch Cable
OM3/OM4/OM5 Multimode LC/SC/FC/ST/LSH/MU Duplex Fiber Patch Cable
Duplex Fiber Patch OS2 Single Mode LC/SC/FC/ST 2.0mm
Customized OS2 Single Mode LC/SC/FC/ST/LSH/MU/MTRJ Duplex Fiber Patch Cable
Simplex Optic Patch OS2 Single Mode LC/SC/ FC/ST FiberCable 2.0mm
Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.
This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It is best suited for long distance application and can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
SC Connector
Vsunlight can provide fiber optic patch cord that comply with OS2, OM1, OM2, OM3, OM4, and OM5 standards, which can meet the requirements of Gigabit Ethernet, 10 Gigabit Ethernet and high-speed Fibre Channel applications. vsunlight patch cord products have been widely used in data center, enterprise, FTTx, LAN and WAN, cable TV networks, and telecommunications network applications.
