With compact structure and bending insensitive cables, the ABS Module Splitter takes less distortion during use, which ensures reliable optical transmission.
Description

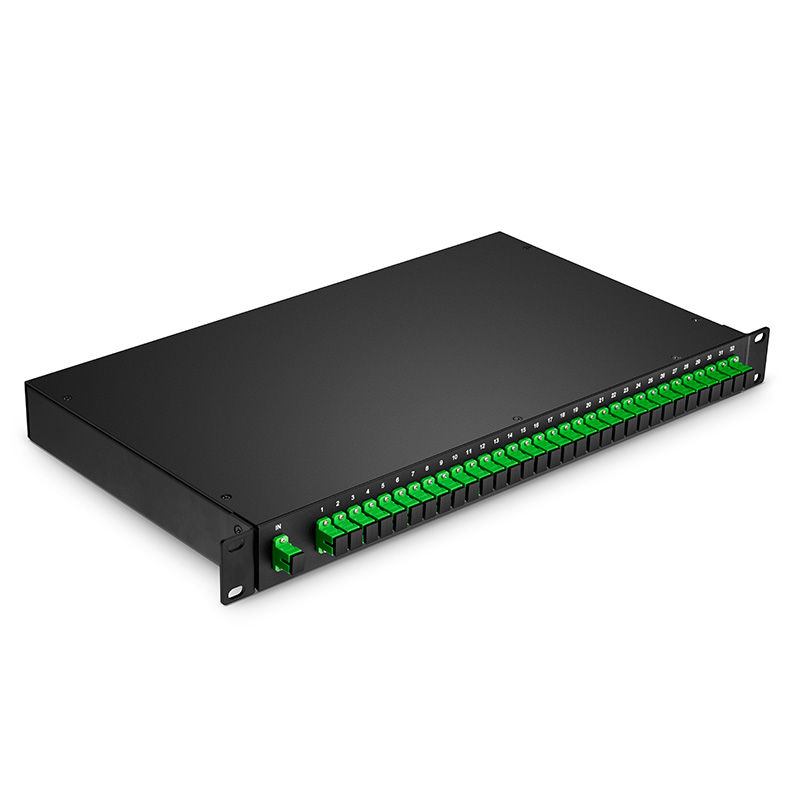

PLC Fiber Splitter, 1U 19' Rack Mount, SC/APC, Singlemode
The 19-inch rack-mount PLC splitters are specifically designed for standard 19' racks, making them ideal for data centers or server rooms with high wiring density requirements. They feature low insertion loss, low polarization-dependent loss, and consistent port performance. Available in 1×N and 2×N channel configurations with SC connectors, including 1×2 to 1×64 and 2×2 to 2×64 1U Rack Mount type fiber PLC splitters.
These splitters are encased in a metal box, offering easy installation in fiber optic applications and extensively used in Fiber To The Home (FTTH) networks, adhering to PON standards like GPON and XGS-PON.
Specifications
| Package Style | Rack Mount | Configuration Type | 1x32 |
| fiber Type | G657A1/A2 | Operating Wavelength | 1260-1650nm |
| Connector Type | SC /APC | Split Ratio | Symmetrical |
| Input/Output Fiber Diameter | 0.9/ 2.0 mm | Input/Output Fiber Length | 0.8 m |
| Insertion Loss | ≤16.9 dB | Uniformity | ≤1.5 dB |
| Return Loss | ≥55 dB | Directivity | ≥55 dB |
| Polarization Dependent Loss | ≤ 0.3dB | Fiber Mode | Singlemode |
| PDL (Max.) | ≤0.3 dB | Wavelength Dependent Loss | ≤0.5 dB |
| Temperature Dependent Loss | ≤0.5 dB | Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Tempaerature | -40 to 85°C (-40 to 185°F) | Dimensions ( (HxWxD)mm | 44x482.6x250 mm Or Customized |
Premium Fiber Splitter Guarantees Stable Transmission
 |  |  |
Bend Insensitive Fiber G.657A1 cables with 10mm min.bend radius allow tighter or bending cable routing. | Nano-zirconia Ceramic Ferrules Nano-zirconia ceramic ferrules provide 17.0dB max.IL and 55dB min.RL. | SC/APC Connectors The fibers contain SC/APC connectors for plug and play, no need to splice. |
Uniform Distribution of Optical Signal
PLC splitters enable the transmission power at each splitter output port to be the same, which simplifies the network design and reduces the costs.
Multiple Modes can be Customized
The Bare Fiber PLC splitter not only available in a variety of split ratios and package types, and housing, split ratio,
and connector options can be customized according to customer requirement.
Full-band Wavelength Enhanced Compatibility and Flexibility
The PLC splitter is insensitive to wavelength and has full-band signal transmission from 1260 to 1650 nm,
ensuring superior compatibility and flexibility. It’s designed to meet current network demands and adapt easily to future upgrades,
providing reliable performance and long-term investment protection.
Widely Used in FTTX Projects and Data Communication Centers
Optical splitter has played an important role in passive optical networks (like EPON, GPON, BPON, FTTX, FTTH, etc.) by allowing a single PON Interface to be shared among many subscribers.
