With compact structure and bending insensitive cables, the ABS Module Splitter takes less distortion during use, which ensures reliable optical transmission.
Description

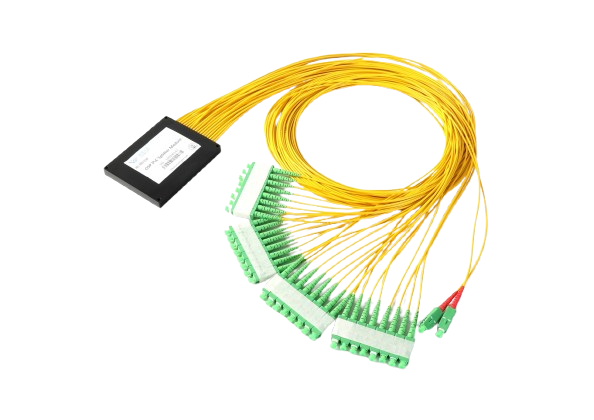

2x32 PLC Fiber Splitter, ABS Module, 2.0mm, SC/APC, Single mode
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. It is designed for splitting a single input signal at 1260-1650nm equally into 32 output signals, and is available with SC/APC connector, and it all use bend insensitive fiber (BIF) with a 10 mm bend radius to minimize loss.
Pigtailed ABS splitter provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It is mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets, and commonly Found in POL, Datacom, LAN, CATV, LCP, FTTx and More Applications.
Specifications
| Package Style | ABS/Metal Module | Configuration Type | 2x32 |
| fiber Type | G657A1/A2 | Operating Wavelength | 1260-1650nm |
| Connector Type | SC /APC | Split Ratio | Symmetrical |
| Input/Output Fiber Diameter | 2.0 mm | Input/Output Fiber Length | 2.2 m |
| Insertion Loss | ≤17.5 dB | Uniformity | ≤2.0 dB |
| Return Loss | ≥55 dB | Directivity | ≥55 dB |
| Polarization Dependent Loss | ≤ 0.3dB | Fiber Mode | Singlemode |
| PDL (Max.) | ≤0.3 dB | Wavelength Dependent Loss | ≤0.5 dB |
| Temperature Dependent Loss | ≤0.5 dB | Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Tempaerature | -40 to 85°C (-40 to 185°F) | Dimensions ( (HxWxD)mm | 18x120x80 mm Or Customized |
Premium Fiber Splitter Guarantees Stable Transmission
 |  |  |

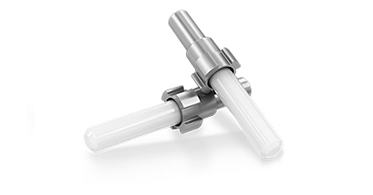

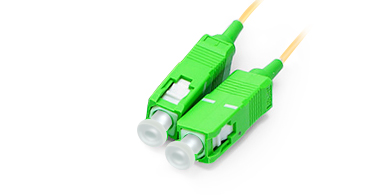

Bend Insensitive Fiber G.657A1 cables with 10mm min.bend radius allow tighter or bending cable routing. | Nano-zirconia Ceramic Ferrules Nano-zirconia ceramic ferrules provide 17.0dB max.IL and 55dB min.RL. | SC/APC Connectors The fibers contain SC/APC connectors for plug and play, no need to splice. |
Uniform Distribution of Optical Signal
PLC splitters enable the transmission power at each splitter output port to be the same, which simplifies the network design and reduces the costs.
Multiple Modes can be Customized
The Bare Fiber PLC splitter not only available in a variety of split ratios and package types, and housing, split ratio,
and connector options can be customized according to customer requirement.
Full-band Wavelength Enhanced Compatibility and Flexibility
The PLC splitter is insensitive to wavelength and has full-band signal transmission from 1260 to 1650 nm,
ensuring superior compatibility and flexibility. It’s designed to meet current network demands and adapt easily to future upgrades,
providing reliable performance and long-term investment protection.
Widely Used in FTTX Projects and Data Communication Centers
Optical splitter has played an important role in passive optical networks (like EPON, GPON, BPON, FTTX, FTTH, etc.) by allowing a single PON Interface to be shared among many subscribers.
Hot Product
PLC Fiber Splitter, ABS Module, 2.0mm, SC/APC, Single mode
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. It is designed for splitting a single input signal at 1260-1650nm equally into 32 output signals, and is available with SC/APC connector, and it all use bend insensitive fiber (BIF) with a 10 mm bend radius to minimize loss.
Asymmetric PLC Splitter
Vsunlisght is capable of supplying asymmetric plc splitters with practically uneven splittingratio, and the output optical signal divided in ratios of 60/40, 70/30, 95/5...Asymmetric plc optical splitters are allowing easy and cost-effective construction ofFTTH networks in single-family housing conditions, such as FTTR.
Mini Module PLC Splitter
Optical fiber PLC splitter is an integrated waveguide optical power distribution device based on quartz substrate, which is especially suitable for connecting the terminal equipment in the PON network and dividing the optical information in the optical fiber communication system into multiple outputs. It has the characteristics of small size, compact mechanism, low insertion loss, uniform power distribution, and good environmental adaptability. Mini Module type PLC splitter is small in size.
2 x N PLC Fiber Splitter, Steel Tube, Bare Fiber 250μm, No Connector, Singlemode
Vsunlight Bare Fiber PLC splitters is a kind of ODN product suitable for Fiber To The X (FTTX, X=Home, Office, Buliding etc...) networks, adhering to ITU.T PON standards like GPON and XGS-PON etc, which are packaged in a compact housing with options for 250 um leads and 900 um leads. These splitters offer low insertion loss and low polarization sensitivity.
