Description

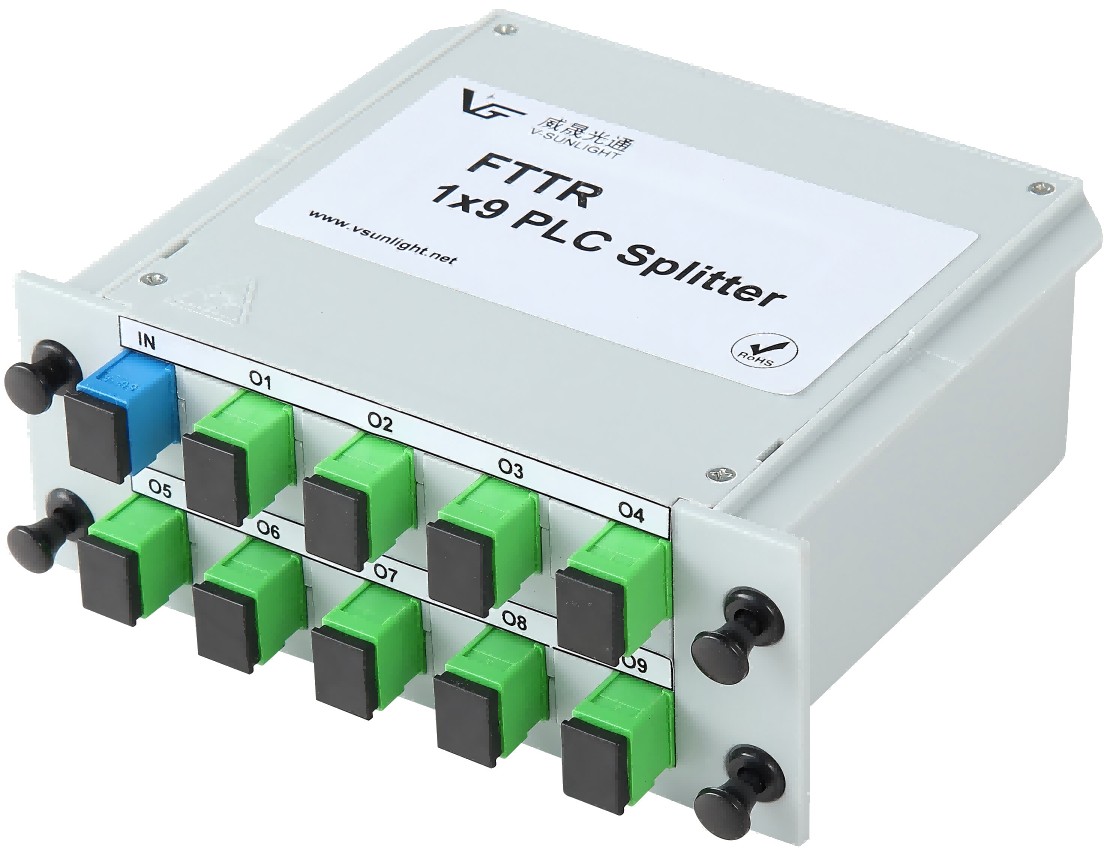

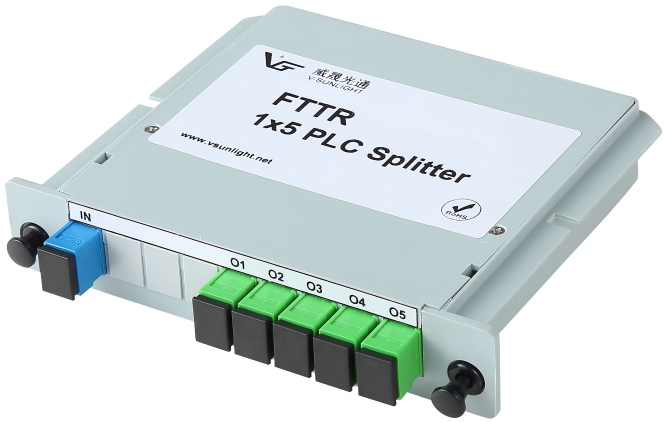

Asymmetric PLC Splitter

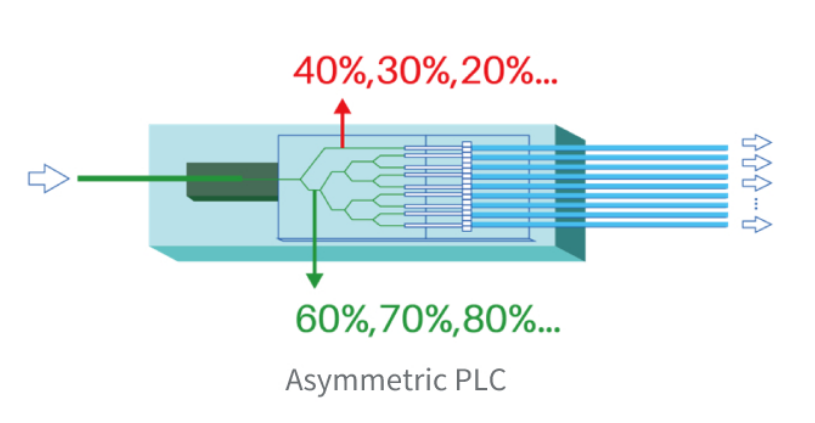

Vsunlight is capable of supplying asymmetric plc splitters with practically uneven splittingratio, and the output optical signal divided in ratios of 60/40, 70/30, 95/5...Asymmetric plc optical splitters are allowing easy and cost-effective construction of FTTH networks in single-family housing conditions, such as FTTR.
Specifications
| Product number | Asy-PLC-105-25-15 | Asy-PLC-109-25-15 | Asy-PLC-117-25-15 |
| Parameter | 1x5 | 1x9 | 1x17 |
| Operating Wavelength | 1260-1650nm | 1260-1650nm | 1260-1650nm |
| Fiber Diameter | 250nm | 250nm | 250nm |
| Insertion Loss | O1~O4 (6.25%)≤14.7dB O5(75%) ≤1.5dB | O1(70%)≤2.1dB O2~O9(3.75%) ≤16.2dB | O17(70%)≤2.1dB |
| Uniformity | ≤0.8 dB | O2~O9 ≤0.8dB | ≤1.2dB |
| Return Loss | ≥55 dB | ≥55 dB | ≥55 dB |
| PDL (Max.) | ≤0.3 dB | ≤0.3 dB | ≤0.3 dB |
| Directivity | ≥55 dB | ≥55 dB | ≥55 dB |
| Fibre Type | G657A1/A2 | G657A1/A2 | G657A1/A2 |
| Operating Temperature | -40 to 85°C (-40 to 185°F) | -40 to 85°C (-40 to 185°F) | -40 to 85°C (-40 to 185°F) |
| Dimensions ( (HxWxD) | 0.16'x1.97'x0.16' (4x50x4mm) | 0.16'x1.97'x0.16' (4x50x4mm) | 0.16'x1.97'x0.16' (4x50x4mm) |
Uniform Distribution of Optical Signal
PLC splitters enable the transmission power at each splitter output port to be the same,
which simplifies the network design and reduces the costs.
Multiple Modes can be Customized
The Bare Fiber PLC splitter not only available in a variety of split ratios and package types, and housing, split ratio,
and connector options can be customized according to customer requirement.
Full-band Wavelength Enhanced Compatibility and Flexibility
The PLC splitter is insensitive to wavelength and has full-band signal transmission from 1260 to 1650 nm,
ensuring superior compatibility and flexibility. It’s designed to meet current network demands and adapt easily to future upgrades,
providing reliable performance and long-term investment protection.

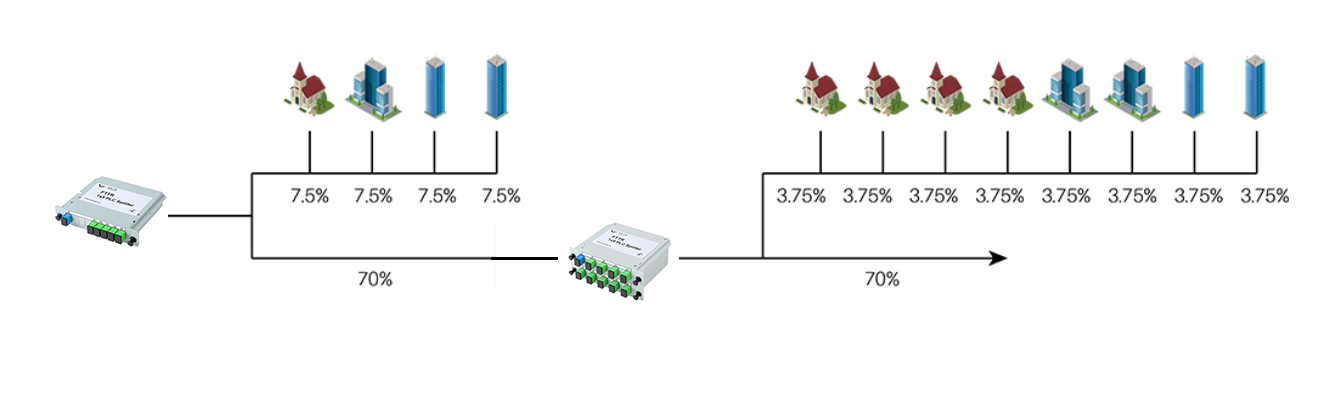

Widely Used in FTTX Projects and Cost-effective
Asymmetric plc optical splitters allow easy and cost-effective construction of FTTH networks to cover longer
distances between splitters and drop offervice to smaller housing conditions, such as rural or long-reach applications.
The 'Plug and play' and small package size of PLC ptical splitters canave initial deployment costs and eliminate the need for additional time splicing.
|
Hot Product
PLC Fiber Splitter, ABS Module, 2.0mm, SC/APC, Single mode
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. It is designed for splitting a single input signal at 1260-1650nm equally into 32 output signals, and is available with SC/APC connector, and it all use bend insensitive fiber (BIF) with a 10 mm bend radius to minimize loss.
PLC Fiber Splitter, 1U 19" Rack Mount, SC/APC, Singlemode
The 19-inch rack-mount PLC splitters are specifically designed for standard 19" racks, making them ideal for data centers or server rooms with high wiring density requirements. They feature low insertion loss, low polarization-dependent loss, and consistent port performance. Available in 1×N and 2×N channel configurations with SC connectors, including 1×2 to 1×64 and 2×2 to 2×64 1U Rack Mount type fiber PLC splitters.
Mini Module PLC Splitter
Optical fiber PLC splitter is an integrated waveguide optical power distribution device based on quartz substrate, which is especially suitable for connecting the terminal equipment in the PON network and dividing the optical information in the optical fiber communication system into multiple outputs. It has the characteristics of small size, compact mechanism, low insertion loss, uniform power distribution, and good environmental adaptability. Mini Module type PLC splitter is small in size.
1 x N PLC Fiber Splitter, Steel Tube, Bare Fiber 250μm, No Connector, Singlemode
1 x N PLC Fiber Splitter, Steel Tube, Bare Fiber 250μm, No Connector, Singlemode
