Description

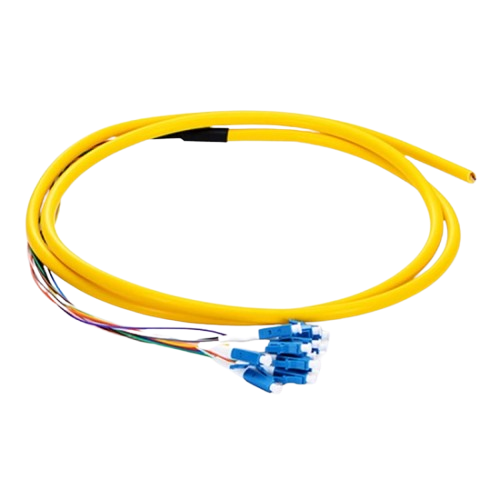

Fiber Optic Pigtail 4-96 Fibers OS2 Single Mode LC/SC/FC/ST/LSH
Optic pigtails 4-48 fibers are ideal for fusion splicing the required fiber connectivity for structured cabling systems including Data Centers, Broadband CATV, PON (Passive Optical Network), WDM or DWDM multiplexing, FTTH and voice services in ATM and SONET metropolitan and access networks. The bend-insensitive fiber optic pigtails have less attenuation when bent or twisted compared with traditional fiber optic pigtails, making the installation and maintenance more efficient.
Specifications
Connector A LC/SC/FC/ST/LSH UPC/APC Simplex Connector B Unterminated Fiber Count 4/6/8/12/24/48/96 Fibers Fiber Grade G.657.A1/A2 Fiber Mode OS2 9/125μm Wavelength 1310/1550nm Jacket Color Yellow Cable Type Color-coded/Bunch/Ribbon Cable Outside Diameter (OD) 0.9/2.0mm Cable Jacket 0.9mm: PVC (Unrated)/LSZH 2.0mm: Plenum (OFNP)/LSZH/Riser (OFNR) Min. Bend Radius (OpticalFiber) 10mm Min. Bend Radius (Fiber Cable) 10/5D (Dynamic/Static) Connector Durability 1000 Times Standard RoHS Compliant Attenuation at 1310nm 0.36dB/km Attenuation at 1550nm 0.22dB/km Insertion Loss ≤0.3dB Return Loss UPC≥50dB, APC≥60dB (LC/SC/ST/FC) UPC≥55dB, APC≥75dB (LSH) Vibration ≤0.2dB Interchangeability ≤0.2dB Operating Temperature Plenum (OFNP): -10 to 60°C (14 to 140°F) PVC (Unrated)/Riser (OFNR)/LSZH: -10 to 70°C (14 to 158°F) Storage Temperature Plenum (OFNP): -10 to 70°C (14 to 158°F) PVC (Unrated)/Riser (OFNR)/LSZH: -20 to 70°C (-4 to 158°F) |
Pigtail Structure
 |  |  |

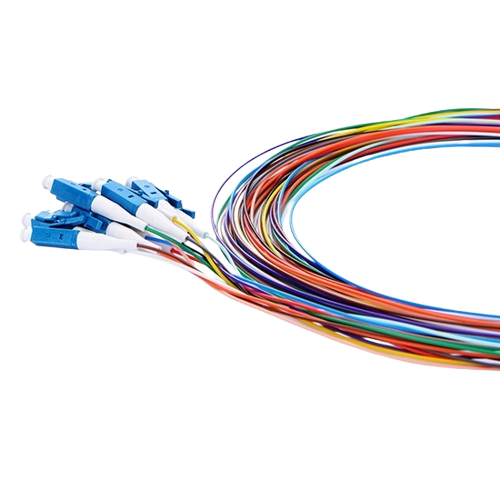

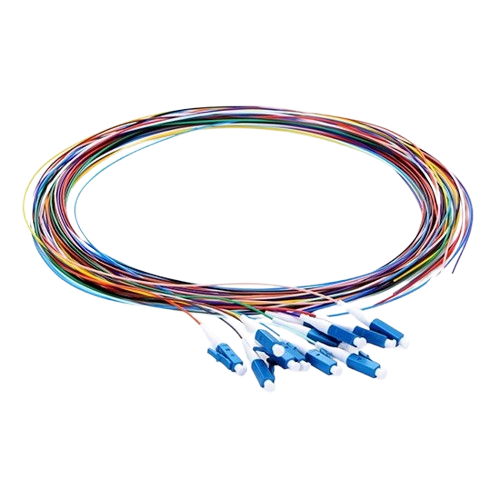

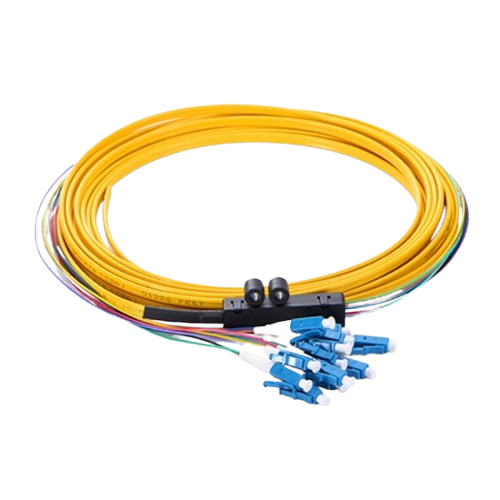

Color-coded Faster connector identification with color-coded pigtail.avoiding incorrect patching by possible fiber flipping. | Bunch Precision alignment of fiber optical components, used infiber distribution panels and interconnect modules. | Ribbon Compact size, light weight and high efficiency, reducingthe cost of field fusion splicing. |
Build a Stable and Robust Fiber Optic Network
High-quality tight-Buffered fiber optic pigtail protects the fiber optic core,and is easy to strip for splicing.

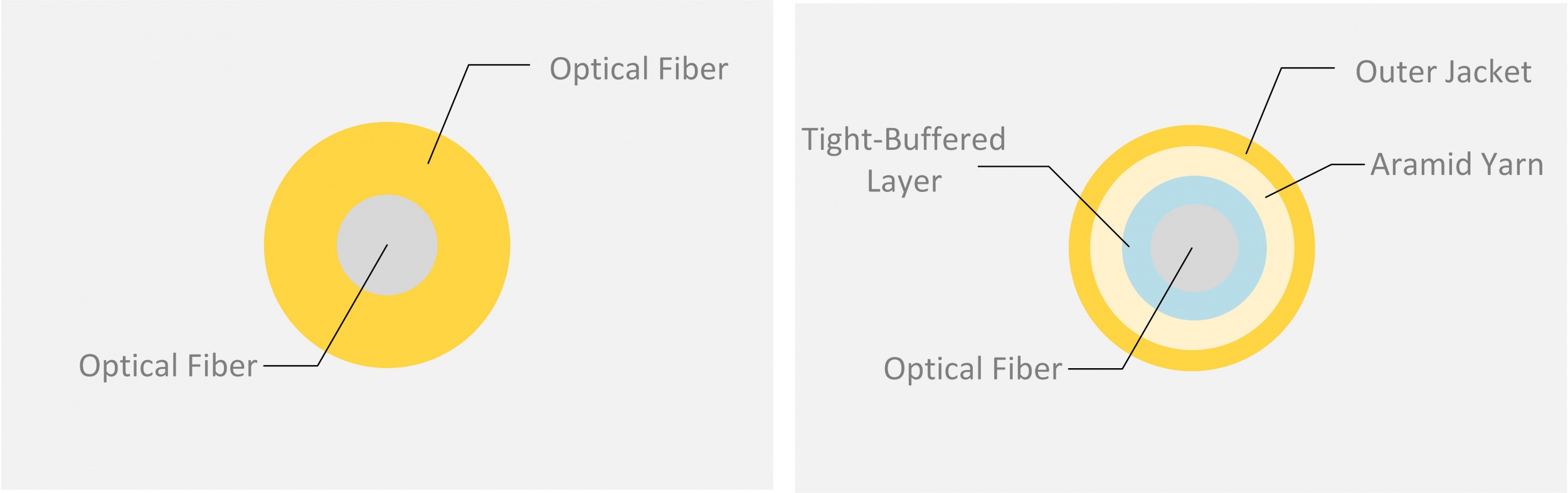

0.9mm Cross-Section Diagram 2.0mm Cross-Section Diagram

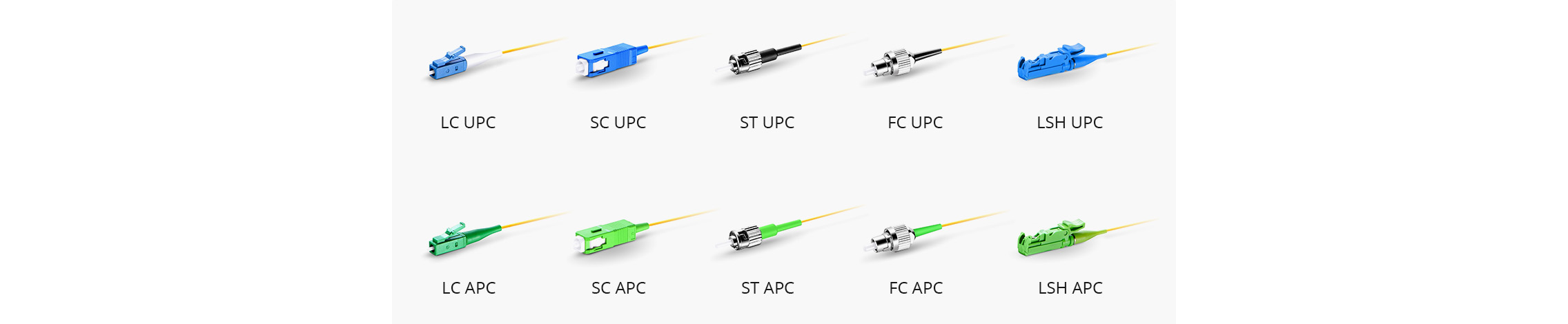

Optional Connectors
Various connectors are available, LC/SC/FC/ST/LSH, UPC/APC polish, to suit the needs of different applications.
