Description
Hybrid Fiber Patch Cable, LC/SC/FC/ST, Simplex, 1F, OS2, Riser (OFNR), 2.0mm
Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It is best suited for long distance application and can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional fiber patch cable and this will make the installation and maintenance more efficient.
Specifications
Connector A LC/SC/FC/ST APC/UPC Simplex Connector B LC/SC/FC/ST APC/ UPC Simplex Fiber Count 1 Fibers Fiber Grade G.657.A1/A2 (Compatible with G.652.D) Fiber Mode OS2 9/125μm Wavelength 1310/1550nm Flame Rating Riser (OFNR) Cable Outside Diameter (OD) 2.0mm RoHS Compliancy Status Compliant Cable Type Tight-Buffered Min. Bend Radius (OpticalFiber) 10mm Min. Bend Radius (Fiber Cable) 10/5D (Dynamic/Static) Connector Durability 1000 times Tensile Strength 90/150N (Long/Short Term) Insertion Loss ≤0.3dB Return Loss ≥50dB Attenuation at 1310nm 0.4dB/km Attenuation at 1550nm 0.3dB/km Operating Temperature -10 to 70°C (14 to 158°F) Storage Temperature -20 to 70°C (-4 to 158°F) |
PACTH CORD TYPE
LC Fiber Optical Connector Patch Cord
 |  |  |  |

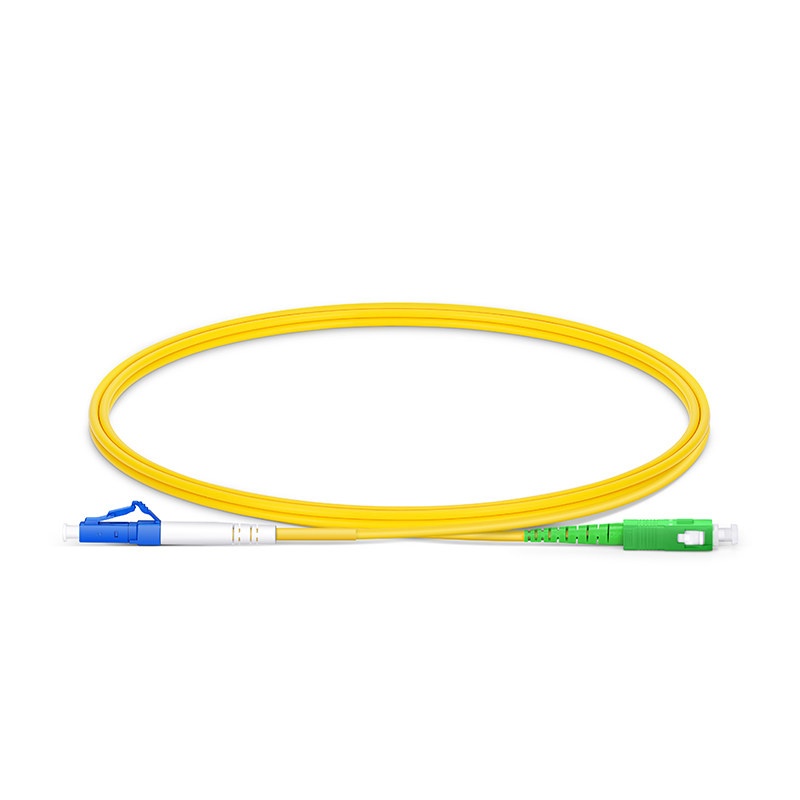

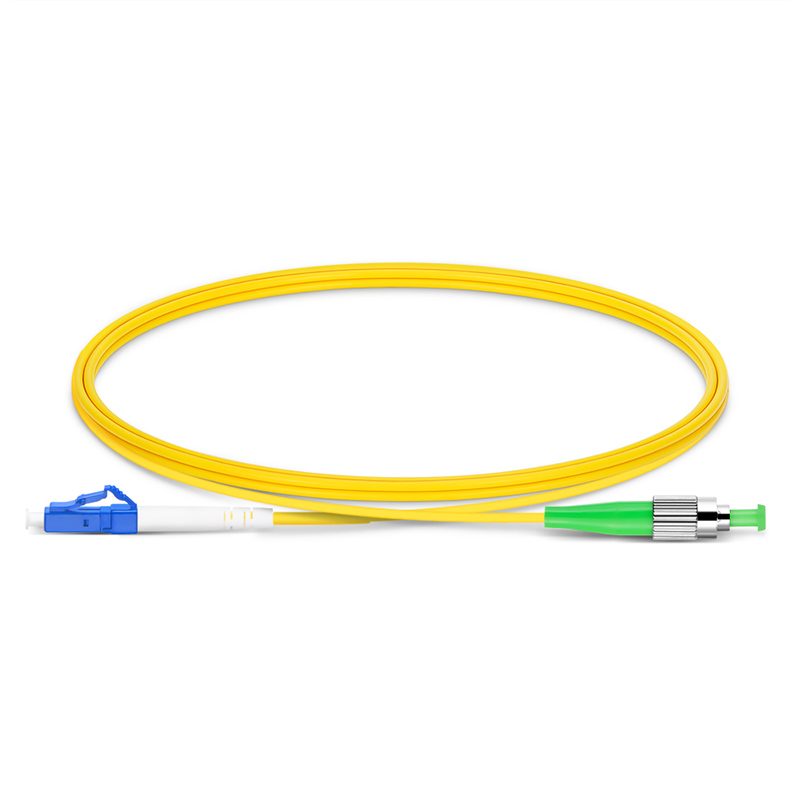

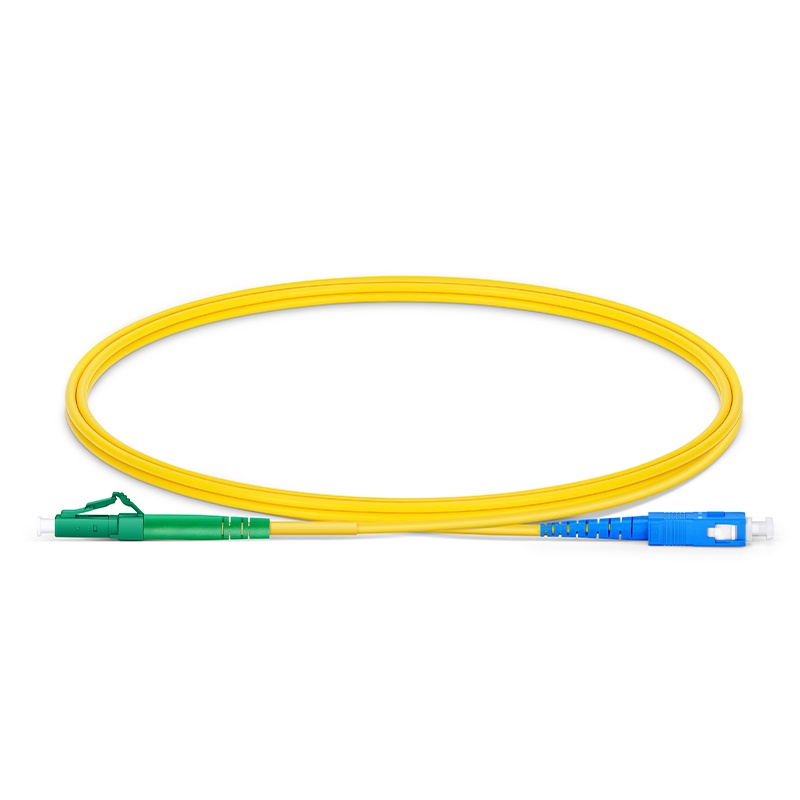

| Simplex LC-LC patch Cord | Simplex LC-SC Patch Cord | Simplex LC-FC Patch Cord | Simplex LC-ST Patch Cord |
SC Fiber Optical Connector Patch Cord
 |  |  |  |
| Simplex SC/UPC-SC/UPC patch Cord | Simplex LC/UPC-SC/UPC patch Cord | Simplex SC/APC-FC/APCpatch Cord | Simplex SC/UPC-ST/UPC patch Cord |
FC Fiber Optical Connector Patch Cord
 | | |  |
| Simplex FC/UPC-FC/UPC patch Cord | Simplex LC/UPC-FC/APC patch Cord | Simplex FC/APC-SC/APC patch Cord | Simplex FC/UPC-FC/APC patch Cord |
ST Fiber Optical Connector Patch Cord
 | | |
| Simplex ST-ST patch Cord | Simplex ST-LC patch Cord | Simplex ST-SC patch Cord |
E2000 Fiber Optical Connector Patch Cord
 Simplex E2000-E2000 patch Cord |  Deplux E2000-E2000 patch Cord |
Hot Product
Hybrid Fiber Patch Cable, LC/SC/FC/ST, Simplex , 1F, OS2, Riser (OFNR), 2.0mm
Hybrid Fiber Patch Cable, LC/SC/FC/ST, Simplex , 1F, OS2, Riser (OFNR), 2.0mm
Multimode LC/SC/FC/ST/E2000 Duplex Fiber Patch Cable
OM3/OM4/OM5 Multimode LC/SC/FC/ST/LSH/MU Duplex Fiber Patch Cable
Duplex Fiber Patch OS2 Single Mode LC/SC/FC/ST 2.0mm
Customized OS2 Single Mode LC/SC/FC/ST/LSH/MU/MTRJ Duplex Fiber Patch Cable
Simplex Optic Patch OS2 Single Mode LC/SC/ FC/ST FiberCable 2.0mm
Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.
This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It is best suited for long distance application and can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
