Description

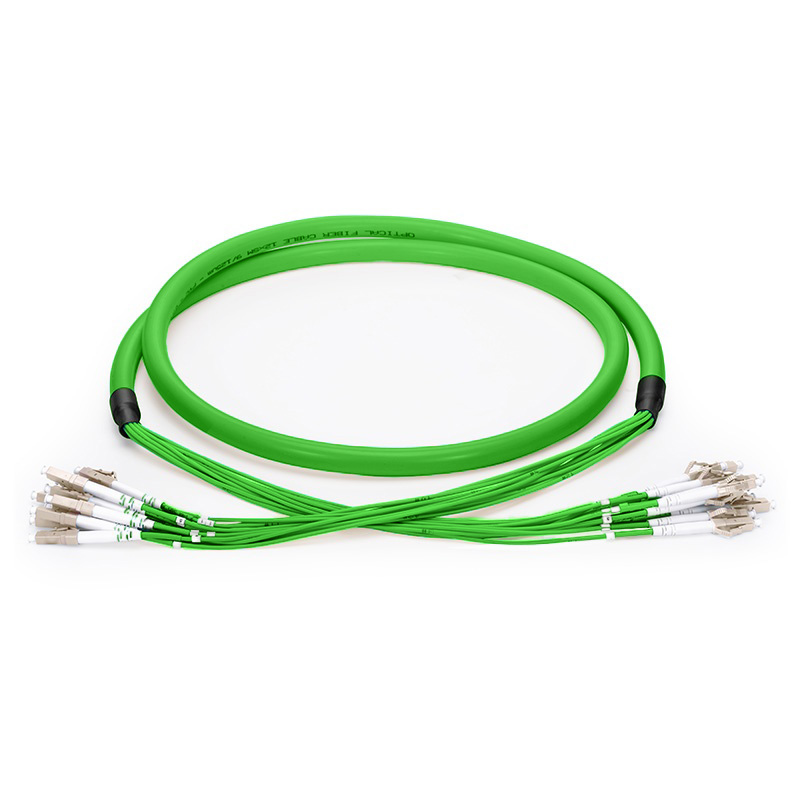

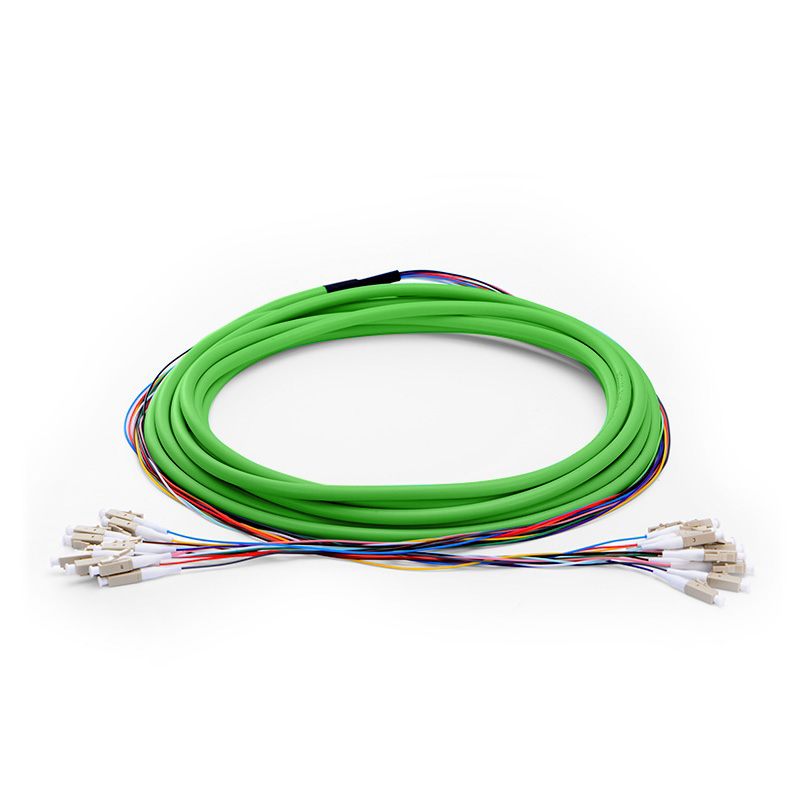

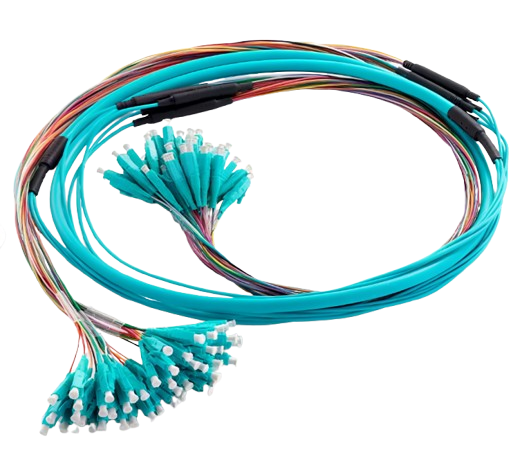

Indoor Pre-terminated Multifiber Cables
The indoor pre-terminated multifiber cables, refer to the 4, 6, 8, 12, 16, 24 and 48 fibers. We also provide a full set of customized services, such as length, connector, fiber grade, specification, cable jacket and pulling eye etc. Highly configurable multi-fiber pre-terminated cable assemblies are engineering for maximum performance and crafted ensuring superior quality.
 | Features • Good repeatability and interchangeability. • OS2/OM5/OM4/OM3/OM2/OM1 are available. • 4/6/8/12/16/24/48 fibers are available. • LC/SC/ST/FC/LSH/Unterminated connectors are available. • Apply to indoor networking. • Factory terminated and tested for insertion loss, return loss and end face. |
Specifications
| Physical Characteristics | Description |
| Fiber Count | 4/6/8/12/16/24/48 Fibers |
| Fiber Mode | OS2/OM5/OM4/OM3/OM2/OM1 |
| Fiber Grade | OS2: G.657.A1; OM5/OM4/OM3/OM2: Bend Insensitive; OM1: G.651 |
| Connector A | LC/SC/ST/FC/LSH/Unterminated |
| Connector B | LC/SC/ST/FC/LSH/Unterminated |
| Polish Type | SMF: UPC/APC; MMF: UPC |
| Breakout Outside Diameter (OD) | 2.0/0.9mm |
| Cable Jacket | Riser (OFNR)/LSZH/Plenum (OFNP) |
| Jacket Color | OS2: Yellow; OM5: Lime Green; OM4/OM3: Aqua; OM2/OM1: Orange |
| Minimum Bend Radius (mm) | 20/10D (Dynamic/Static) |
| Insertion Loss (dB) | ≤0.3 |
| Return Loss (dB) | SMF: UPC≥50, APC≥60 (LC/SC/ST/FC) MMF: UPC≥30 (LC/SC/ST/FC) |
| Wavelength (nm) | SMF: 1310/1550; MMF: 850/1300 |
| Attenuation (dB/km) | SMF: ≤0.36 at 1310nm, ≤0.22 at 1550nmMMF: ≤3.0 at 850nm, ≤1.0 at 1300nm |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature | Riser (OFNR)/Plenum (OFNP): -20 |
Note: When the total cable length is less than 3m, the breakout length is 0.3m instead of 0.5m.
Breakout Types for Optimizing Cable Routin
Four different breakout configurations meet your various needs.
Please note that the breakout length is 0.3m by default instead of 0.5m when the total cable length is not more than 3m.
Hot Product
Fiber Optic Pigtail 4-96 Fibers OS2 Single Mode LC/SC/FC/ST/LSH
optic pigtails 4-48 fibers are ideal for fusion splicing the required fiber connectivity for structured cabling systems including Data Centers, Broadband CATV, PON (Passive Optical Network), WDM or DWDM multiplexing, FTTH and voice services in ATM and SONET metropolitan and access networks. The bend-insensitive fiber optic pigtails have less attenuation when bent or twisted compared with traditional fiber optic pigtails, making the installation and maintenance more efficient.

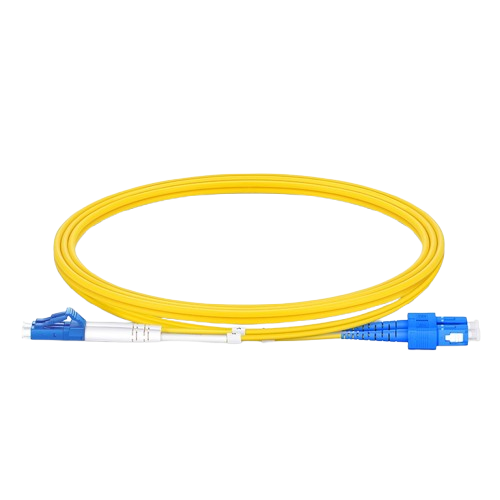

Hybrid Fiber Patch Cable, LC/SC/FC/ST, Duplex, 2F, OS2, Riser (OFNR), 2.0mm
