Description
Fiber Patch Cable, LC/SC/FC/ST, Duplex, 2F, OS2, Riser (OFNR), 2.0mm
Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It is best suited for long distance application and can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional fiber patch cable and this will make the installation and maintenance more efficient.
Specifications
Connector A LC/SC/FC/ST UPC Duplex Connector B LC/SC/FC/ST UPC Duplex Fiber Count 2 Fibers Fiber Grade G.657.A1 (Compatible with G.652.D) Fiber Mode OS2 9/125μm Wavelength 1310/1550nm Flame Rating Riser (OFNR) Cable Outside Diameter (OD) 2.0mm Polarity A (Tx) to B (Rx) Cable Type Tight-Buffered Min. Bend Radius (OpticalFiber) 10mm Min. Bend Radius (Fiber Cable) 10/5D (Dynamic/Static) Connector Durability 1000 times Tensile Strength 90/150N (Long/Short Term) Insertion Loss ≤0.3dB Return Loss ≥50dB Attenuation at 1310nm 0.4dB/km Attenuation at 1550nm 0.3dB/km Operating Temperature -10 to 70°C (14 to 158°F) Storage Temperature -20 to 70°C (-4 to 158°F) |
PACTH CORD TYPE
LC Fiber Optical Connector Patch Cord
 |  |  |  |

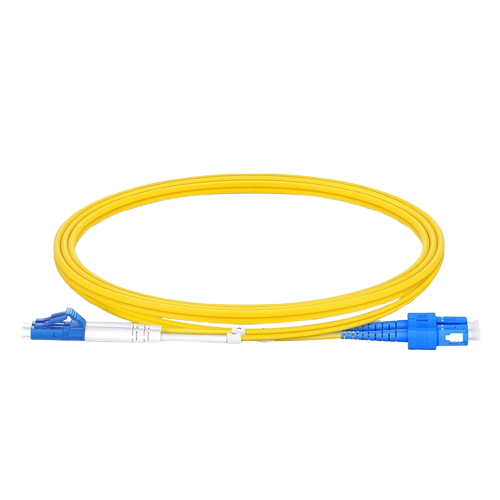

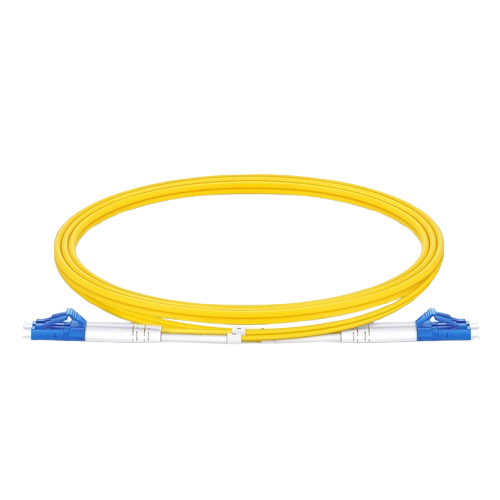

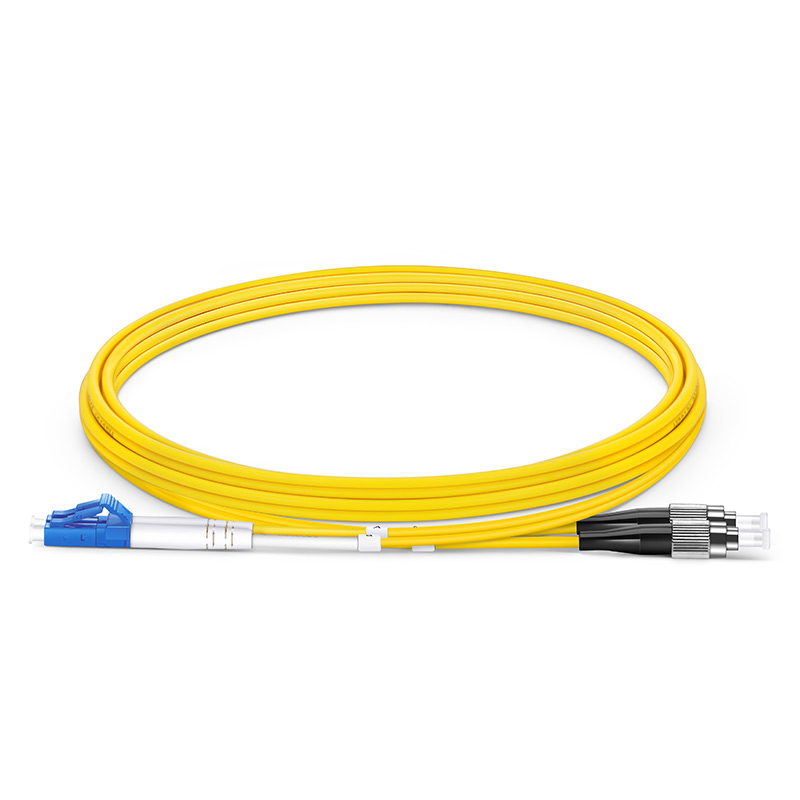

| Deplux LC-LC patch Cord | Deplux LC-SC Patch Cord | Deplux LC-FC Patch Cord | Deplux LC-ST Patch Cord |
SC Fiber Optical Connector Patch Cord
 | |  |  |

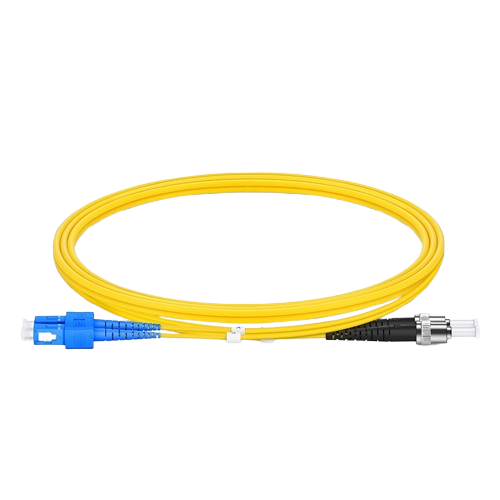

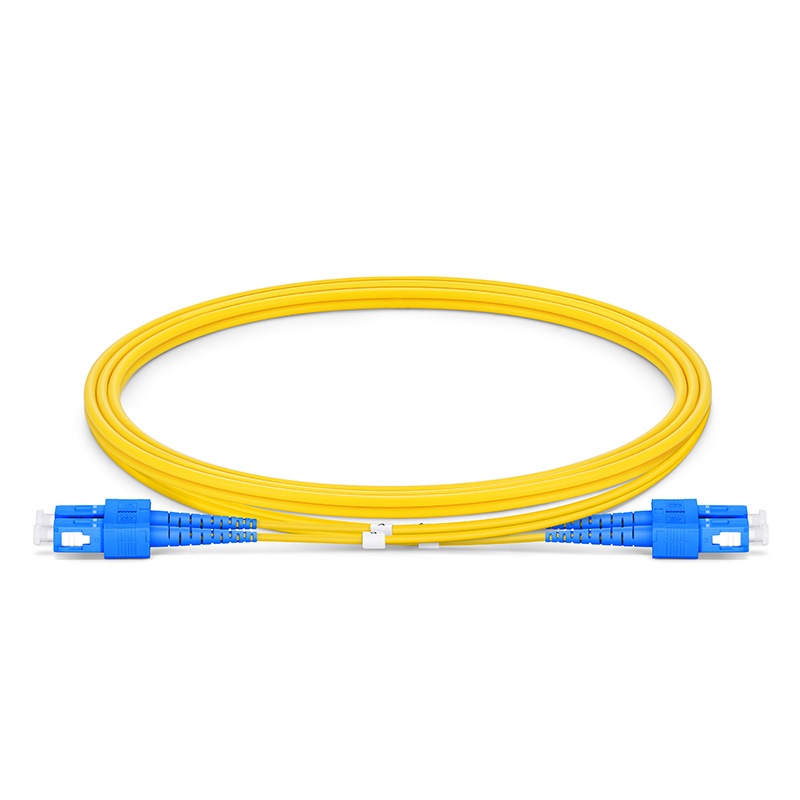

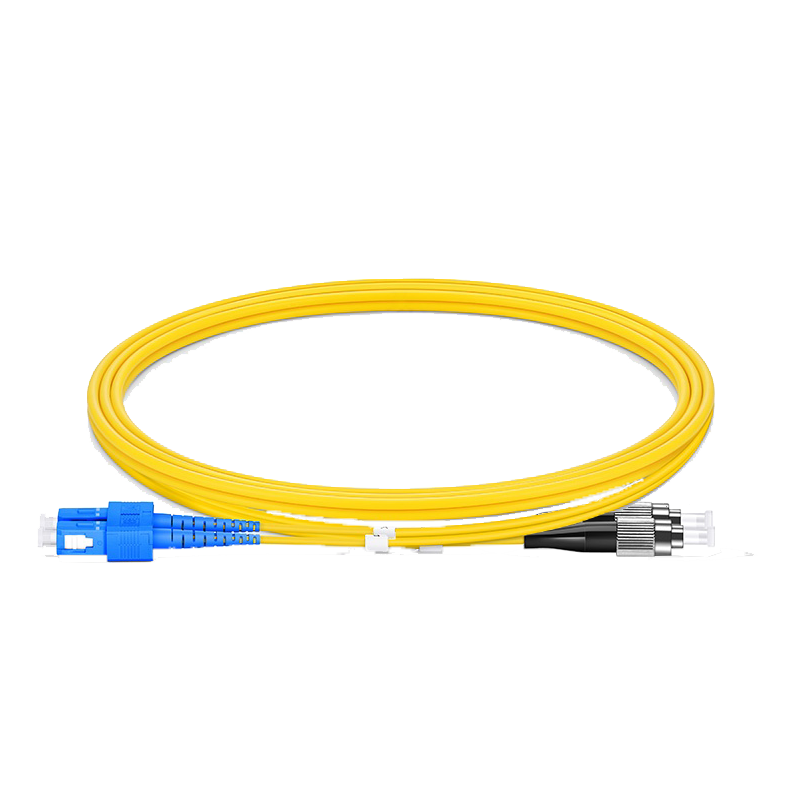

| Deplux SC-SC patch Cord | Deplux LC-SC patch Cord | Deplux SC-FC patch Cord | Deplux SC-ST patch Cord |
FC Fiber Optical Connector Patch Cord
 |  | |  |

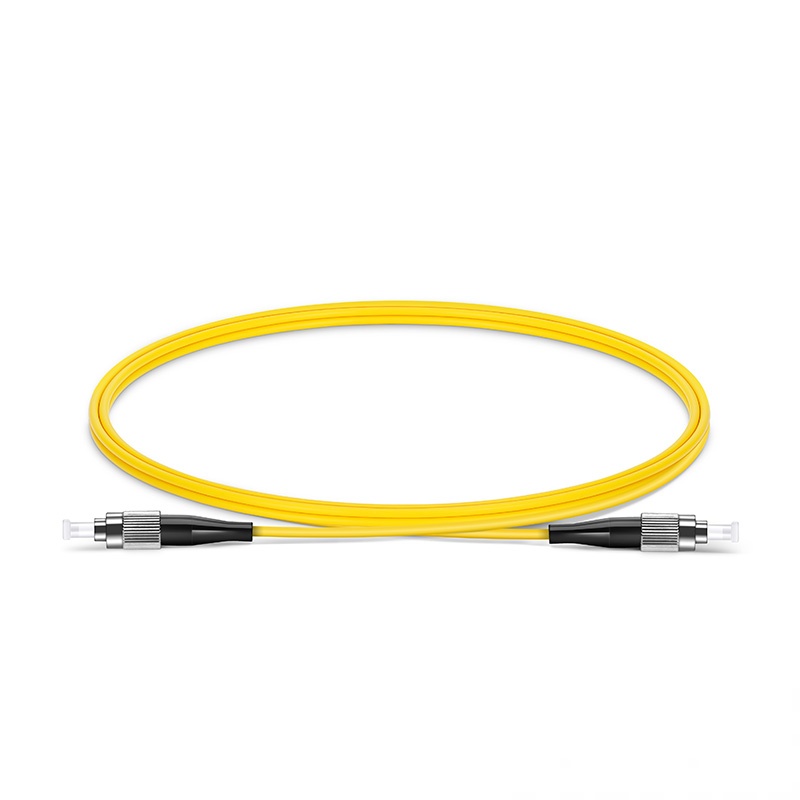

| FC-FC patch Cord | Deplux LC-FC patch Cord | Deplux FC-SC patch Cord | Deplux FC-ST patch Cord |
ST Fiber Optical Connector Patch Cord
 | | | |

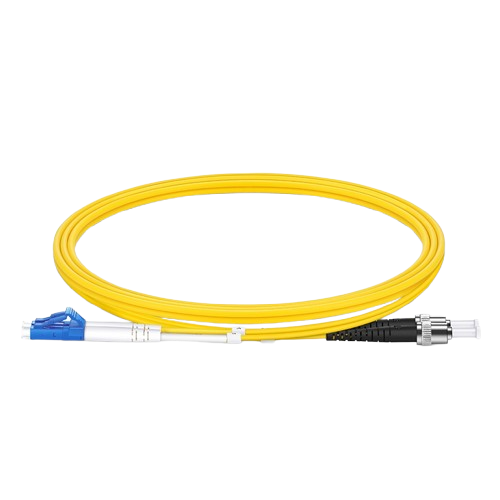

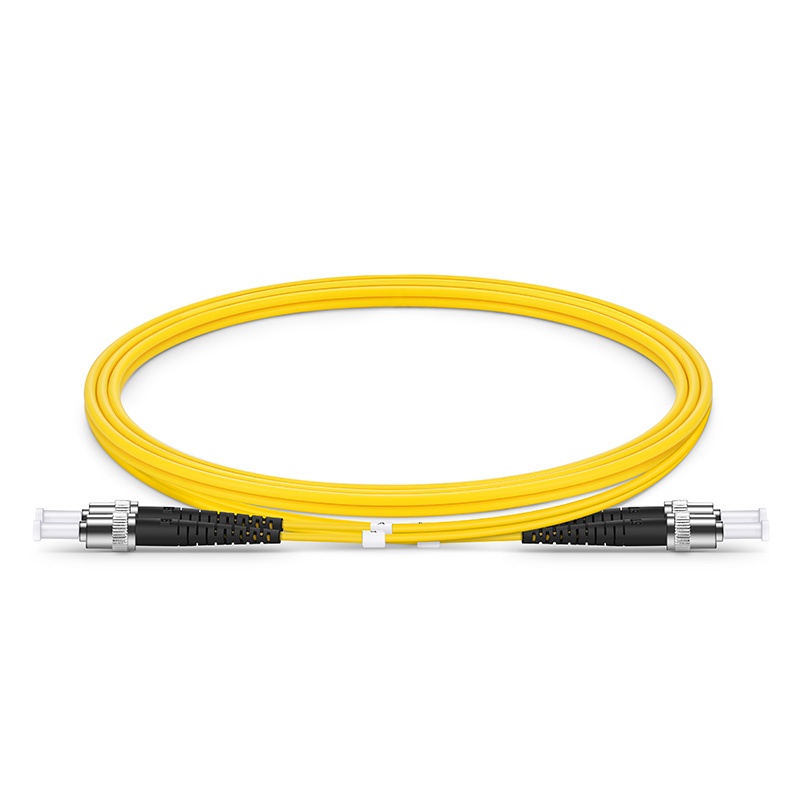

| Deplux ST-ST patch Cord | Deplux ST-LC patch Cord | Deplux ST-SC patch Cord | Deplux ST-FC patch Cord |
Hot Product
Hybrid Fiber Patch Cable, LC/SC/FC/ST, Duplex, 2F, OS2, Riser (OFNR), 2.0mm
Fiber patch cables provide interconnect and cross-connect of applications over installations in entrance facilities, telecommunications rooms, data centers, and at the desk.
This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It is best suited for long distance application and can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
Hybrid Fiber Patch Cable, LC/SC/FC/ST, Simplex , 1F, OS2, Riser (OFNR), 2.0mm
Hybrid Fiber Patch Cable, LC/SC/FC/ST, Simplex , 1F, OS2, Riser (OFNR), 2.0mm
Multimode LC/SC/FC/ST/E2000 Duplex Fiber Patch Cable
OM3/OM4/OM5 Multimode LC/SC/FC/ST/LSH/MU Duplex Fiber Patch Cable
Duplex Fiber Patch OS2 Single Mode LC/SC/FC/ST 2.0mm
Customized OS2 Single Mode LC/SC/FC/ST/LSH/MU/MTRJ Duplex Fiber Patch Cable
